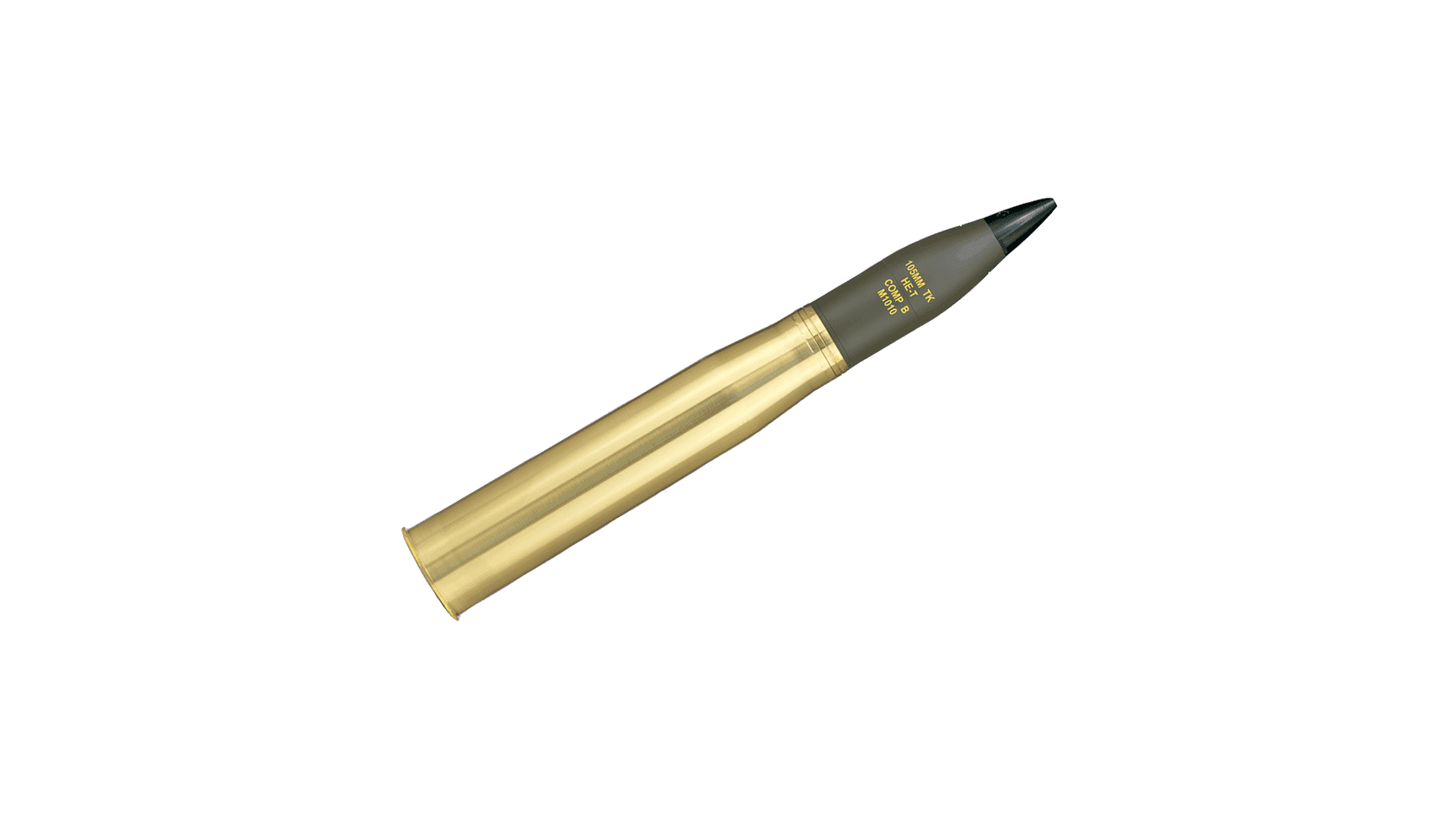

105 TANK HE

This ammunition is for use with 105mm tank guns – US M68, UK L7 and French CN105F1, to provide blast and fragmentation effect against equipment, structures and personnel.

  • The steel bodied projectile, loaded with a 2.0kg high explosive charge, is fitted with a gilding metal driving band and a point detonating impact fuze.
  • The projectile is assembled to a brass or steel cartridge case, which is fitted with an electric primer and loaded with a cool burning, single base, multi-perforated propellant.
  • The fuze has two independent in-bore safeties and complies with MIL-STD-1316.

A new round is under development for the CMI CT-CV turret.


no alt text

PRODUCT FEATURES

  • Caliber

    105mm

  • Round mass (nominal)

    23kg

  • Round length

    998mm

  • Projectile mass (nominal)

    12.1kg

  • Projectile (Explosive content)

    2.0kg

  • Fuze

    PD

  • Cartridge case

    Brass

  • Primer

    Electric cap M83

  • Propellant SB (nominal)

    3.0kg
