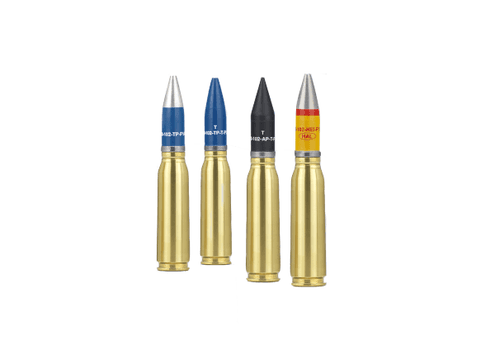

20x102MM
Multipurpose ammunition family for 20x102mm weapon systems
KNDS 20x102mm ammunition family offers combat proven solutions with improved range, accuracy and terminal effect to armed forces operating NATO 20x102mm weapon systems.
KNDS complete 20x102mm ammunition portfolio allows for the defeat of a wide spectrum of threats, from soft targets to armored targets on NATO standard 20x102mm weapon systems such as 20M621, mounted on Narwhal naval turret and THL 20 helicopter turret.
ADVANTAGES:
- Qualified on 20M621, mounted on the Narwhal turret
- Compatible with NATO equivalent 20x102mm weapon systems
- Complete range of ammunition to defeat soft and modern armored targets on the battlefield, as well as their respective training versions
- Combat proven solution, in service in French armed forces and others around the world
KEY CHARACTERISTICS
Cartridge length
168mm
Cartridge mass
272g
Projectile mass
106g
Penetration
20mm RHA at 800m / 30° obliquity
Max operational range
~2.500m
Muzzle velocity
1.005m/s
Dispersion
≤0.6mils
Primer
Electric
