40mm L70 HE PD

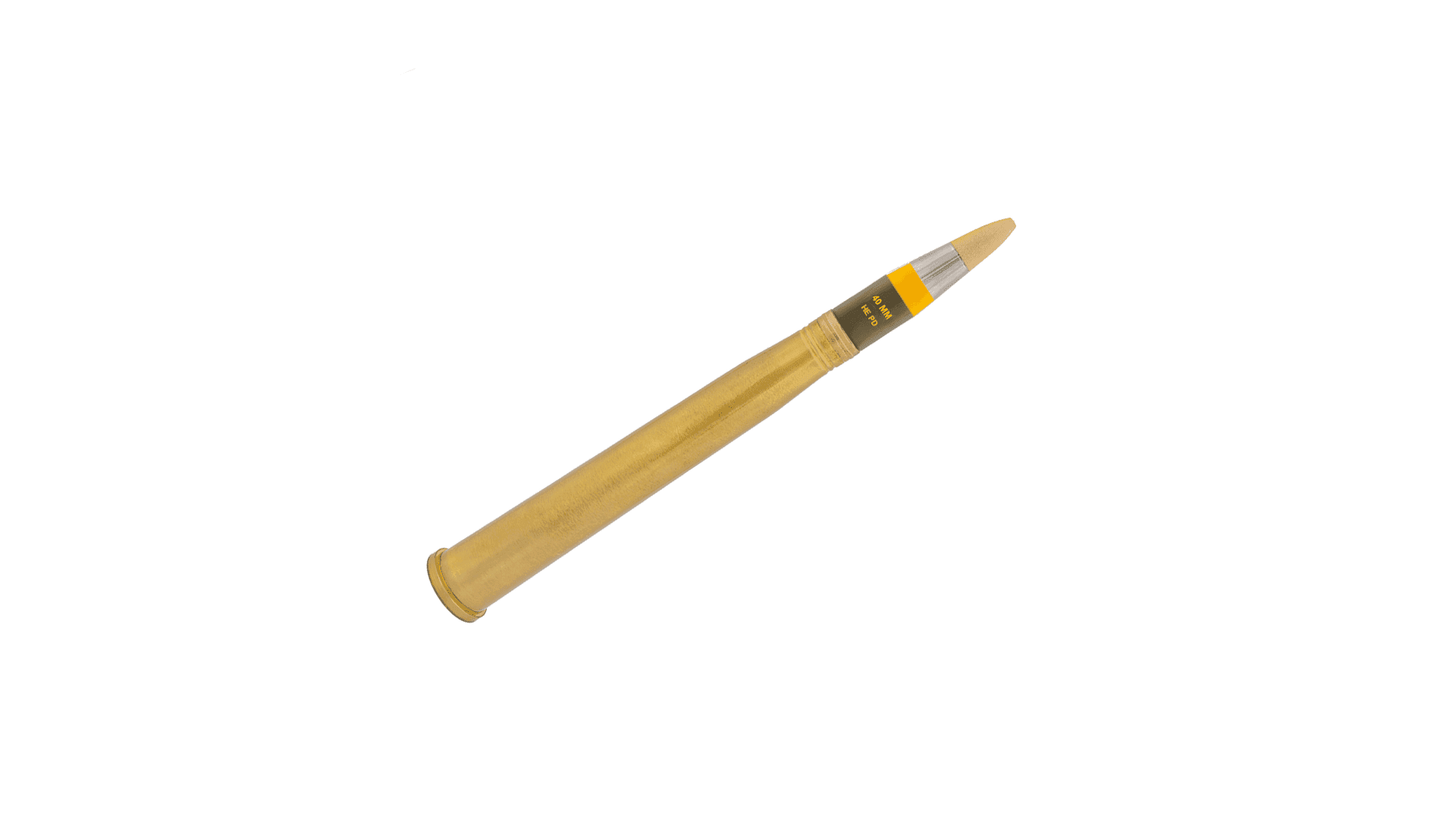

40mmL70 HE round is a high-explosive shell designed for use in all types of 40mm L70 guns, providing versatile firepower for engaging both surface and airborne threats.
The 40mm L70 ammunitions is used worldwide and qualified in accordance with NATO standards
- This 40mm L70 HE round creates maximum fragmentation and blast effects, making it highly effective against lightly armored vehicles, small vessels, and personnel.
- FB769 fuze, the last generation of programable fuze, fit perfectly with the 40mm L70 ammunition and offers a large panel of terminal effect (Point detonating / airburst / proximity / electronic counter mesures / self-destruction).
- KNDS 40mm L70 coupled with KNDS FB769 fuze is the best in class ammunition for a large panel of missions, including counter-UAV missions.
PRODUCT FEATURES
Type
Fixed round HE
Caliber
40mm
Round mass (nominal)
2.5kg
Round length
535mm
Projectile mass (nominal)
0.96kg
Projectile filling (nominal)
0.095kg
Fuze
Point Detonating Delay - Self-destruction, Point Detonating Super Quick
Cartridge case
Brass
Primer
Percussion
Propellant SB
0.480kg
