Comfortable

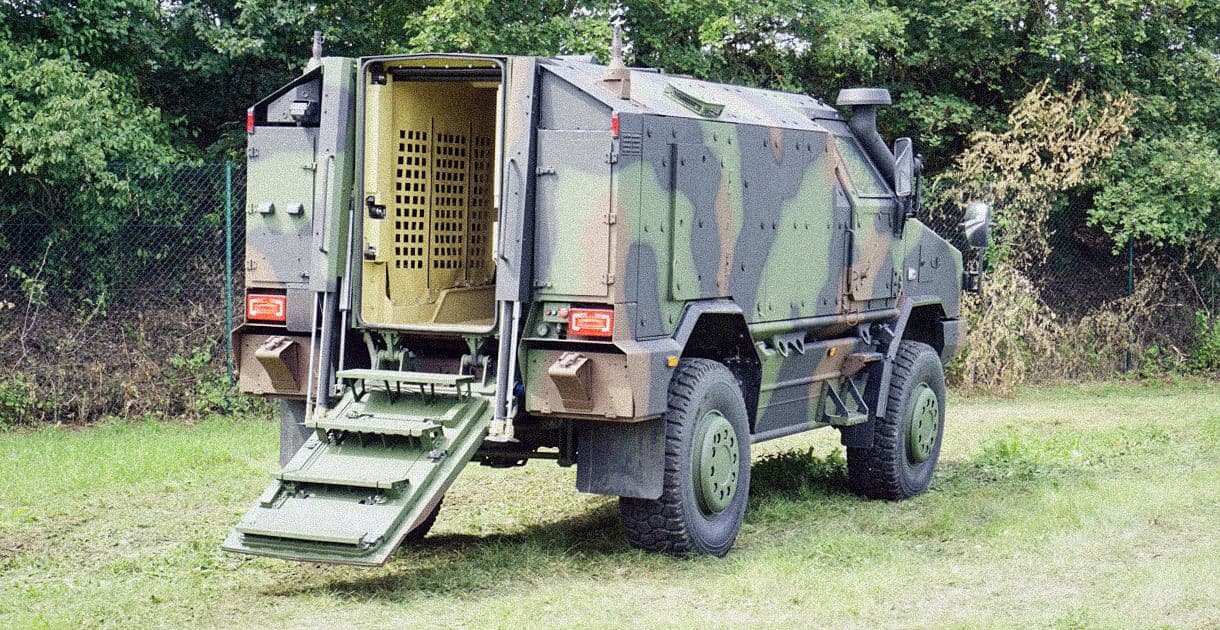

The electrically driven rear ramp offers comfortable access to the interior of the vehicle.
DINGO 3 4x4
DINGO 3 4x4 – Reliability and safety for any mission
Heavily protected, highly mobile GFF3 class support vehicle based on new, refined, enhanced-performance of the DINGO 3 4x4 with space for a crew of up to ten. Conceived for multifaceted mission profiles and extreme terrain conditions. The direct advancement of the DINGO 2.
DINGO 3 4x4 – Uncompromising protection with increased power for a safe mission and a safe return.
Heavily protected, highly mobile performance-enhanced support vehicle
The improvements of the DINGO 3 4x4 are based on the enhanced protection and mobility features and its variable armament concept. Thanks to an extensive selection of equipment options, the safety cell can be adapted to the customer’s requirements.
PRODUCT features
Length
6.6 m
Width
2,42 m
Height (roof)
2.85 m
Maximum acceptable weight
up to 14.8 t
Engine performance / torque
240 kW/1300 Nm
Transmission
Automatic transmission
Central tire inflation system
Automatic/manual central tyre inflation system
Range
> 800 km
Protection
Mine, ballistic, IED, NBC protection
Equipment features of the DINGO 3 4x4
- Maximum payload and mobility with maximum protection
- Basic variants for many uses
- Flexible, modular vehicle concept
- Continuous safety cell with passage between driver and crew compartment
- Universal interface for integrating a wide variety of remote controlled weapon stations
- Individual consideration of customer-specific requirements
- Large electrical rear ramp for safe and rapid crew mounting and dismounting
- Interior height: up to 1.6 m
- Protected cell volume: up to 13 m3
- Potential for equipment kit weight: 2 t
- Max. permissible weight: 14.8 t
Consistently refined, multifunctional system carrier platform
With more than 1,200 systems in use by ten nations, it is one of the most successful land systems of its class.
Facts about the DINGO 3 4x4
Versatile system carrier platform, reliable and mission-proven, based on the DINGO 2
The new DINGO 3 4x4 offers a significantly increased payload of up to 3 t – with the same exterior dimensions as the previous DINGO 2.
The new drivetrain of the DINGO 3 4x4 with high-torque 6-cylinder turbo diesel engine, automatic transmission and automatic central tire inflation system significantly simplifies operation so that the driver can fully concentrate on important aspects of the mission.
Cooling performance of its air conditioning system has been improved enormously and offers sufficient reserves for extreme mission conditions. The electrical power has also been significantly increased in order to ensure sufficient power supply for future installation sets and equipment kits.
The variant of the DINGO 3 4x4 shown here is equipped with an electrically operated rear ramp which enables quick and safe mounting and dismounting of the crew.
Driving performance has been increased even further in comparison with the DINGO 2 HD, and the new instrument panel architecture has been adapted to the civilian Unimog and an additional driver information system has been introduced.

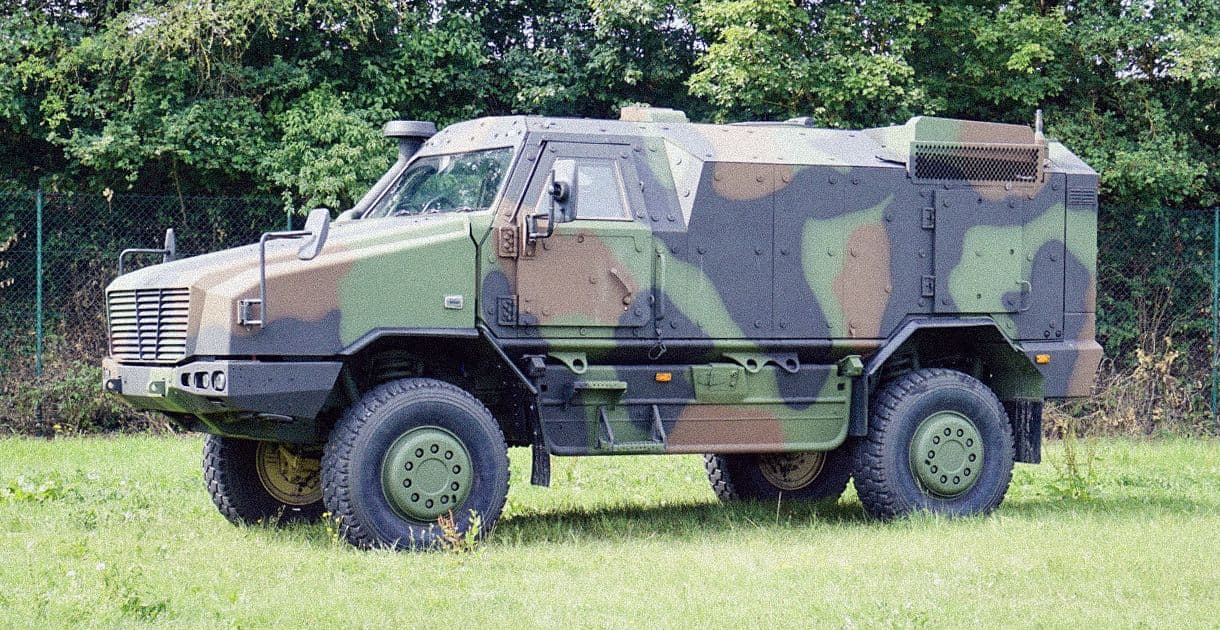

The DINGO 3 4x4 variant shown here has a large-capacity safety cell with a continuous driver and crew compartment. Depending on the customer’s purpose of use, other safety cell variants comparable to the DINGO 2 can be offered.
The maximum permissible weight of the vehicle has been increased to 14.5 t. Based on a new Unimog chassis with a 240 kW 6-cylinder engine and a fully automatic transmission, a great number of new, mission-specific variants can be created while maintaining the established, internationally leading protection concept. At the same time, the logistics concept of the DINGO 3 4x4 is seamlessly adapted to the DINGO versions which have already been introduced. This provides the many user nations with continuous and cost-effective supply for their DINGO vehicle family in the future.
The DINGO is known as the safest and best-protected wheeled vehicle of its class. Its innovative safety concept provides its occupants with the greatest possible protection from anti-tank and anti-personnel mines, IEDs, small arms and shrapnel from artillery and mortar shells. The DINGO also offers protection from NBC warfare agents as a standard feature.
In addition to its first-class protection and mobility features, the secret to success of the DINGO is based on its variable armament concept. It enables specific equipping for current as well as future mission profiles. Alongside an extensive selection of equipment options, the safety cell can also be adapted to the customer’s requirements. For instance, the cell of the patrol vehicle is made in different variants for up to eight occupants. The large-capacity cell has doors at the side and rear and is configured for a wide variety of equipment kits, such as command post, NBC reconnaissance or ambulance.
As a highly modern wheeled vehicle, the DINGO is not only ideally equipped for diverse mission profiles and extreme terrain conditions, but also for a long and cost-effective service life. It is based on a militarised Unimog chassis. This reduces training and instruction effort for drivers and mechanics. The low-maintenance, robust diesel engine is also an economic advantage. Furthermore, the KNDS Deutschland customer service offers worldwide vehicle service – even directly in the deployment zone – and assists in spare part supply. This ensures that vehicles will be at full performance capability at all times.
With the DINGO, KNDS Deutschland has developed an impressive response to the wide variety of threat scenarios worldwide. More than 1,200 high-performance all-protected carrier vehicles are already under contract for ten nations.
All-round protection
The safety cell offers the crew protection from arms fire, mines and asymmetric threats, as well as NBC agents. Depending on the customer’s purpose of use, other safety cell variants comparable to the DINGO 2 and DINGO 2 HD can be offered.
Highly mobile
The Unimog chassis FGA 14.5 has a fully automatic 6-gear transmission and a distributor gearbox with support and differential locks.
Fording ability
The vehicle is capable of fording to 1,200 mm without any preparation.
High-performance
The 6-cylinder diesel engine at this expansion level generates 240 kW/326 HP of power at 1,300 Nm.
