Mobile launcher with 4 Stinger missiles
FENNEK SWP

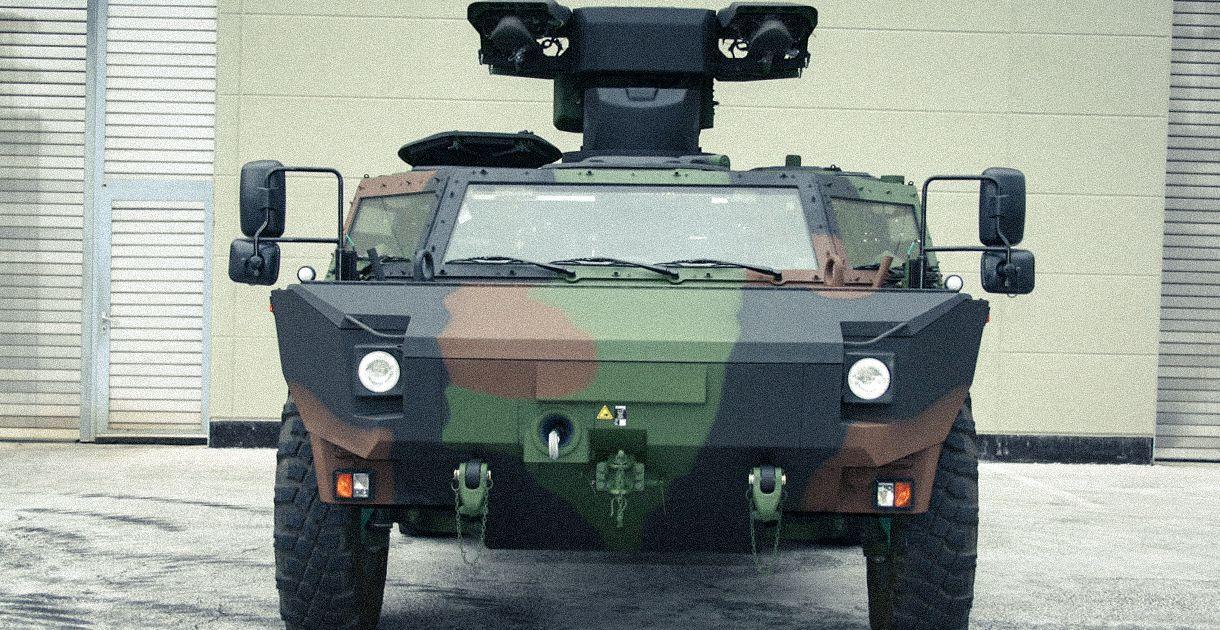

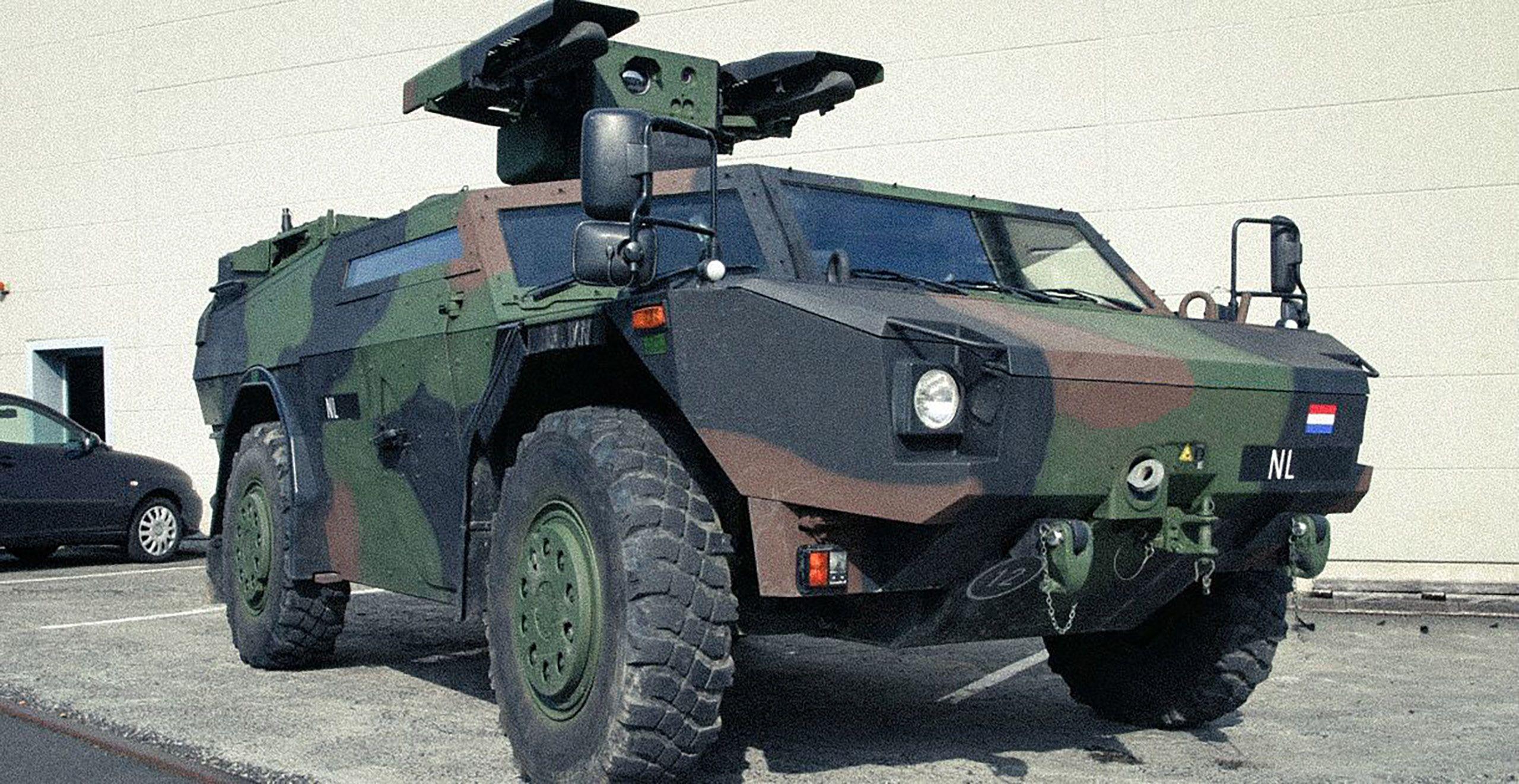

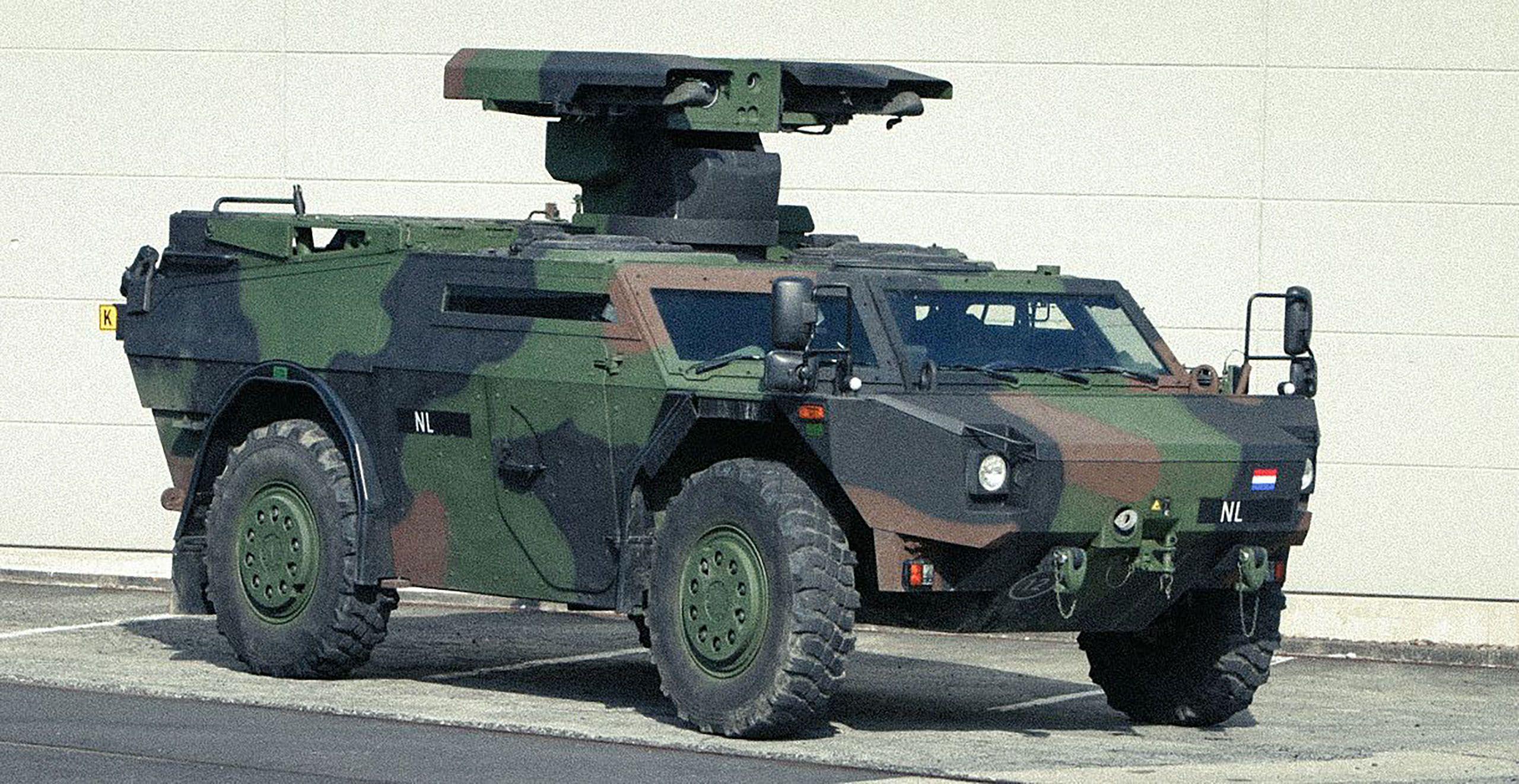

FENNEK SWP (Stinger Weapon Platform) – Anti-aircraft defense on silent paws
The virtually noiseless FENNEK SWP enables forward air defense with a launcher for four Stinger missiles.
FENNEK SWP performance characteristics

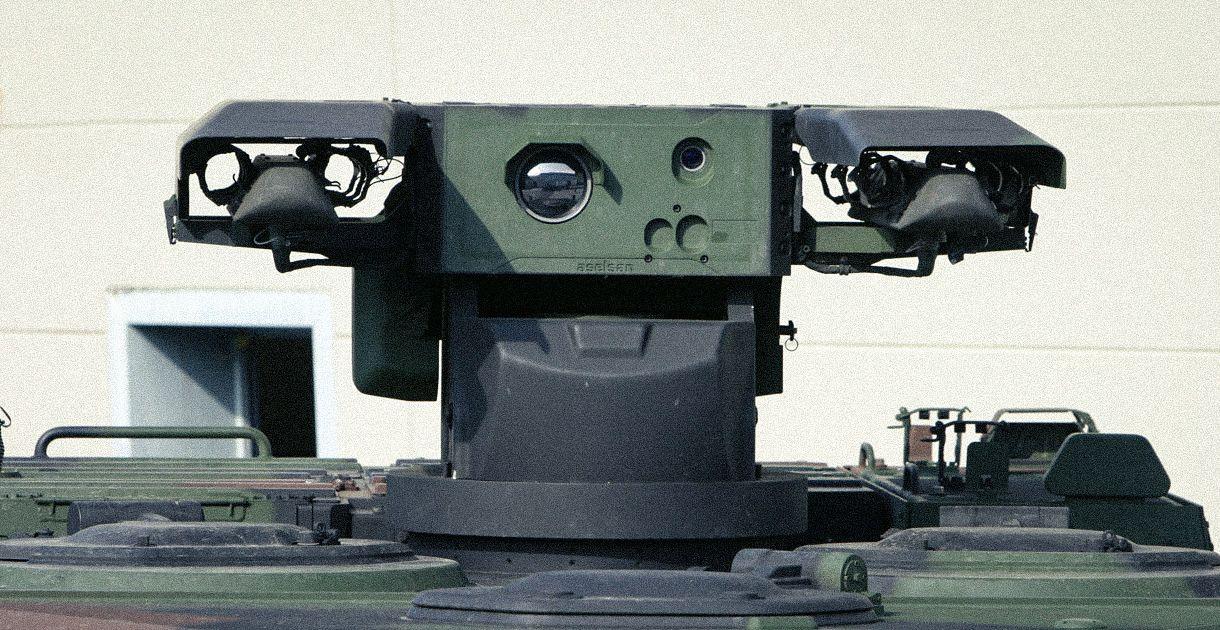

The FENNEK variant is equipped with a Stinger weapon platform (SWP) – a launcher with four stinger missiles for mid-range air defense. These can be operated autonomously from the vehicle as well as by remote-control as part of a ground-based air defense system.
PRODUCT features
Length
5.58 m
Width
2.55 m
Height (vehicle roof)
1.79 m
Weight
12 t
Engine performance
177 kW
Speed
> 100 km/h
Range
1,000 km
Armaments
Launcher for four Stinger guided missiles
Crew
3 persons
Protection
Ballistic, mine, IED
Equipment features of the FENNEK SWP
- Four Stinger missiles loaded in the launcher
- High mobility, even on tough terrain
- Air-transportable
- High-performance power pack with engageable all-wheel drive
Self-sufficient, highly mobile and inconspicuous
The FENNEK SWP can be operated autonomously or by remote control as part of a ground-based air defense system.
Facts about the FENNEK SWP
Extremely mobile, high reconnaissance performance, quiet and self-sufficient for up to 5 days
The FENNEK owes its outstanding performance capability to an ideal combination of reconnaissance capabilities, mobility, maneuverability and camouflage. The three-man crew – driver, commander and radio operator/observer – can operate self-sufficiently for five days. Equipment, operating supplies, drinking water and food are carried in the vehicle. Air-transportable in the C-130, the FENNEK can even be transported to remote deployment zones quickly and easily. With a total weight of up to 12 t, the FENNEK can easily handle inclinations of over 60% and slopes of over 35%. It has a turn circle of 13 m, and fording capability of 1 m in water.
Thanks to an automatic central tire inflation system, the vehicle can adjust perfectly to the ground conditions at hand. Its high-performance power pack is complemented by its engageable all-wheel drive, fully automatic manual transmission and distributor gearbox. The H-drivetrain enables its short construction and low center of gravity, which guarantee high mobility, even on tough terrain. The use of cutting-edge engine technology gives the FENNEK a range of nearly 1,000 km.
Crew
3-man crew consisting of commander, radio operator/observer and driver
Large stowage compartment
Additional stowage compartment for a supply of anti-aircraft missiles
Long-term monitoring
Self-sufficient for up to 5 days on missions
Power
Power pack with 177 kW performance

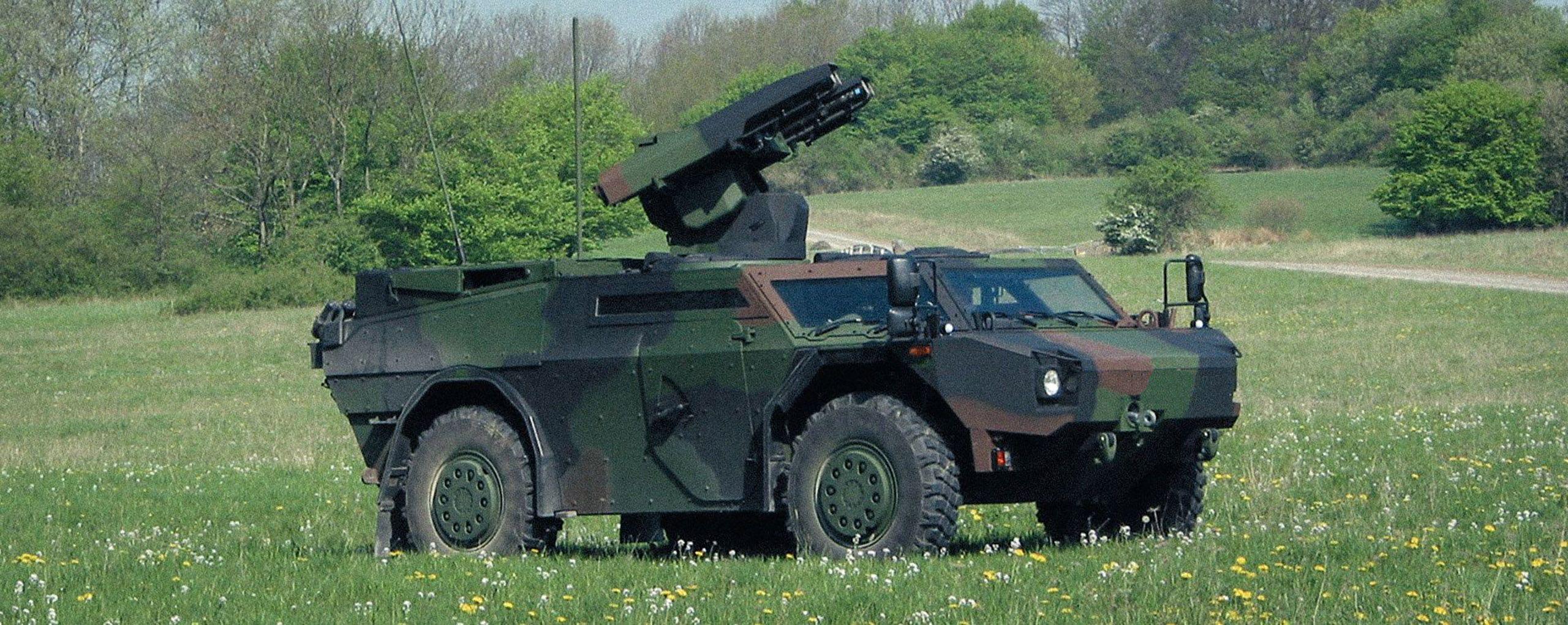

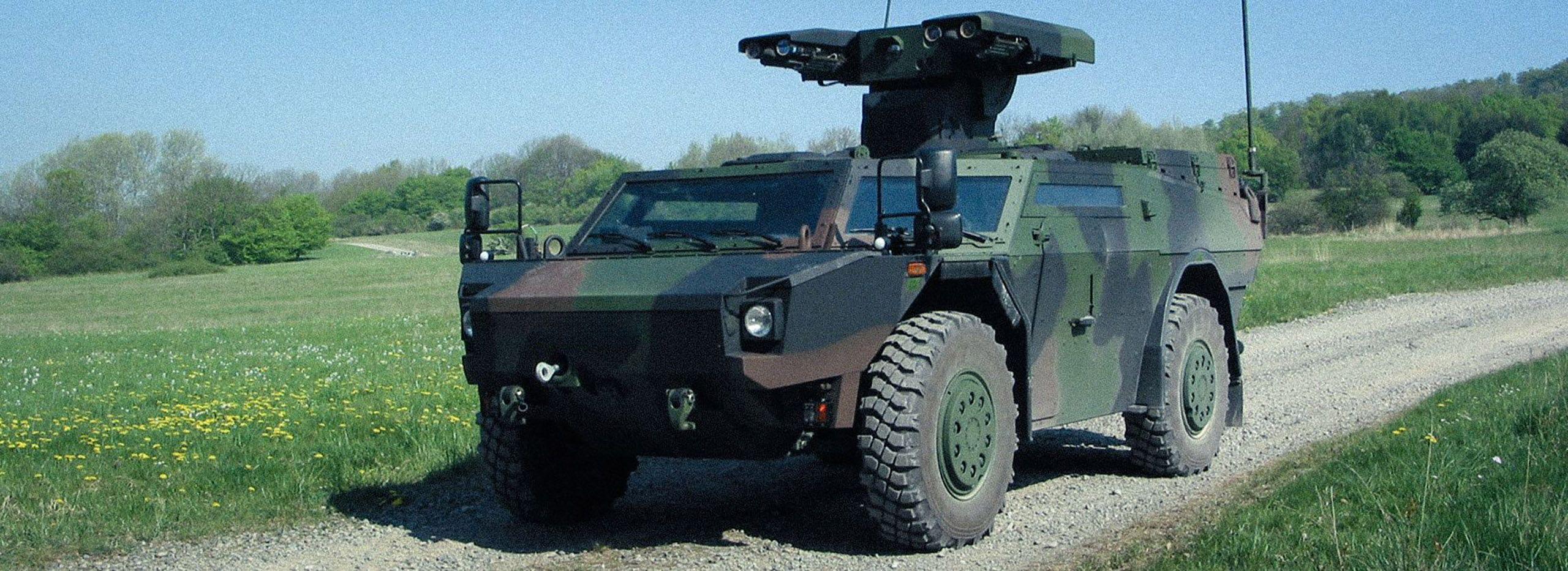

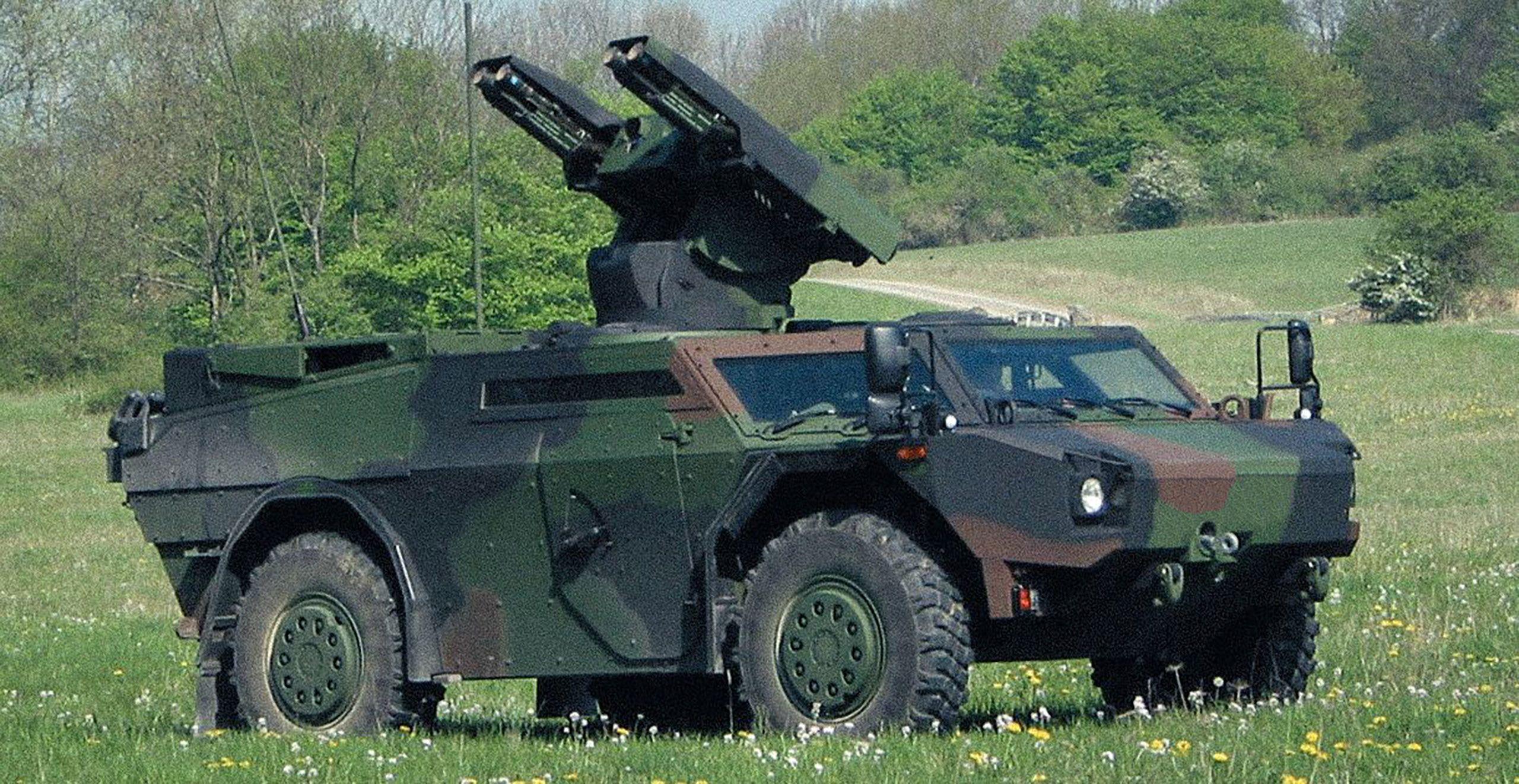

The FENNEK SWP in operation
The FENNEK SWP shows its strengths on tough terrain.
