Various rear door variants
Rear door available in single-wing, double-wing or as a lowerable ramp

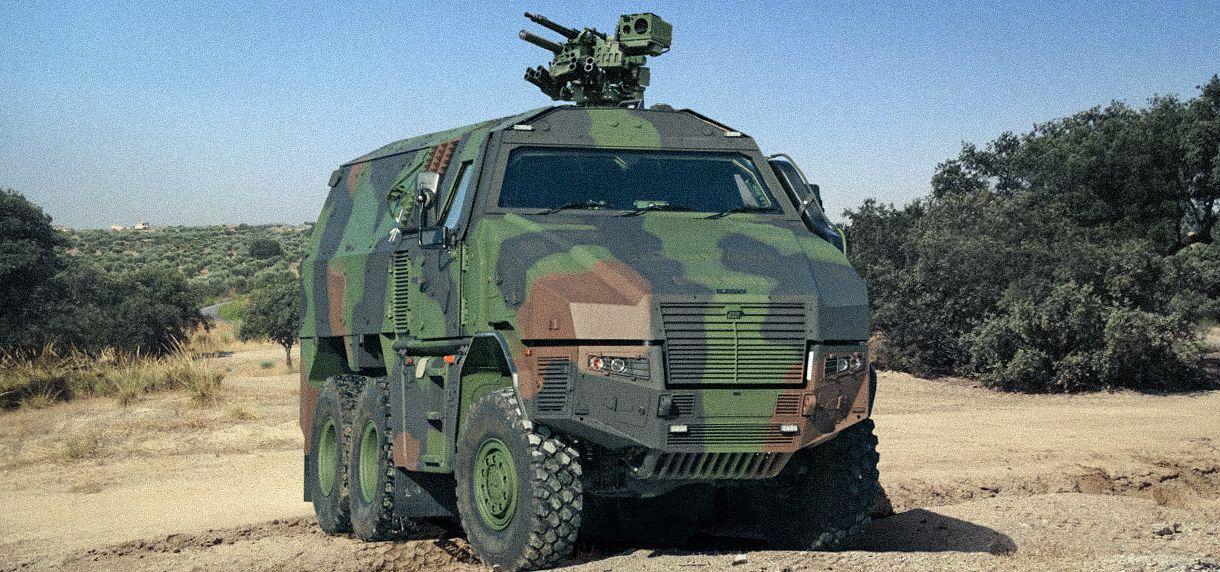

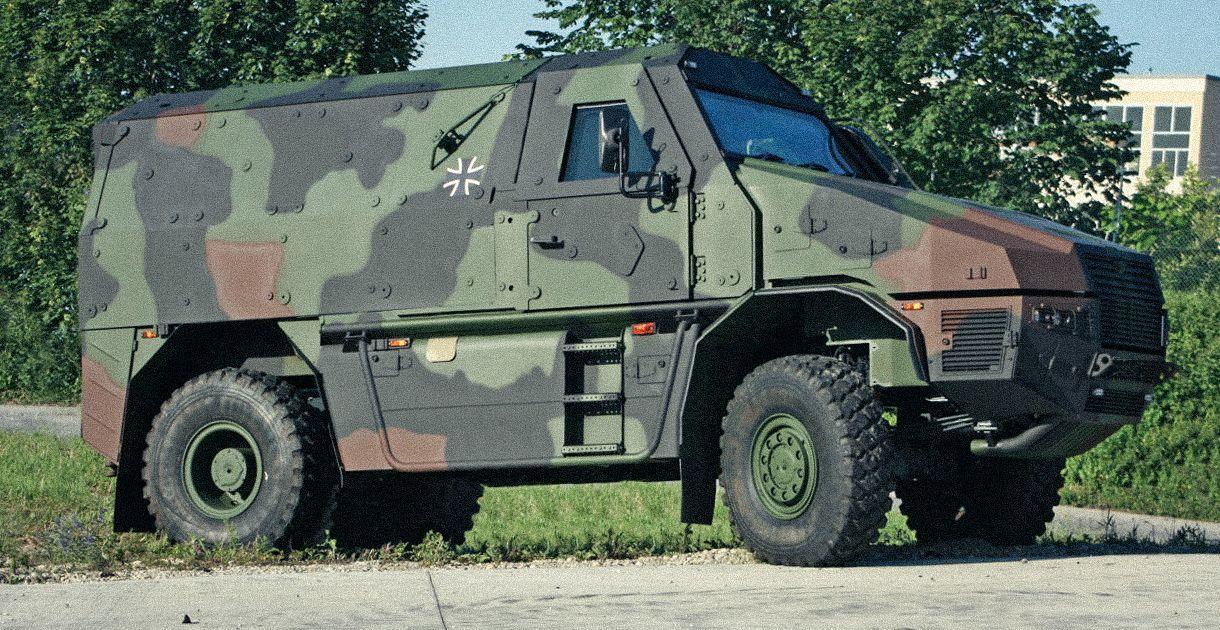

GFF 4 Emergency and Utility Vehicle
GFF 4 Emergency and Utility Vehicle
The family of highly protected command and utility vehicles (GFF 4) offers safety and flexibility with maximum versatility of uses and variants.
Performance characteristics of the GFF 4 Emergency and Utility Vehicle
The GFF 4 vehicle family from KNDS Deutschland redefines protection and flexibility for deployment in its vehicle class. A continuous safety cell which connects the driver’s cab to the mission compartment protects the vehicle’s crew and over 4 t of payload from fire, mines and improvised explosive devices (IED). The multi-functional, fully protected mission compartment with a volume of over 17 m3 allows for the greatest possible flexibility and diversity of variants. With a total weight of up to 25 t and a chassis extremely well suited for off-road travel, the GFF 4 thus offers outstanding tactical mobility in deployment.
PRODUCT features
Weight
25 t
Length
7.95 m
Width
2.53 m
Height (roof edge)
3.08 m
Engine performance
331 kW (450 HP)
Maximum speed
90 km/h
Range
> 700 km
Armaments
FLW 100/FLW 200
Persuasive arguments for protection and flexibility
- Combination of protection, mobility and transport capacity
- Introduced and proven chassis
- Headroom > 1.80 m
- Useable volume 17 m³ + 1 m³ unprotected
- Payload max. 4 t
- Auxiliary power generator
- Central tyre inflation system
- NBC protective ventilation + air conditioning
- Prepared to accommodate weapon stations D
- Passage between driver’s cab and mission compartment
- Modularity for equipment kits
- Various rear door variants
Optimal combination of protection, mobility and transport capacity
The chassis from IVECO enables simple and efficient logistical supply, while the safety cell with overload protection offers the best protection possible.
Facts about the GFF 4 Emergency and Utility Vehicle
Innovative protection concept
The continuous safety cell guarantees maximum possible safety from all conceivable threats. For the crew as well as for the equipment and the machine. Its optimised IED protection makes the GFF 4 the ideal answer to present and future threats facing the armed forces.
The basis for the GFF 4’s outstanding mobility is its IVECO chassis which meets military requirements. This ensures simple and efficient logistical supply – at any deployment site in the world.
17 m³ mission compartment
Overload-resistant safety cell with large volume for the various equipment kits
Chassis and central tyre inflation system
Robust 6x6 chassis with run-flat rings and central tyre inflation system
Safety cell
Highly protected cab for driver and weapon operator
A complete overview of the route
Optimal field of vision thanks to the forward-sloping engine hood
