MUNGO 3 GFF

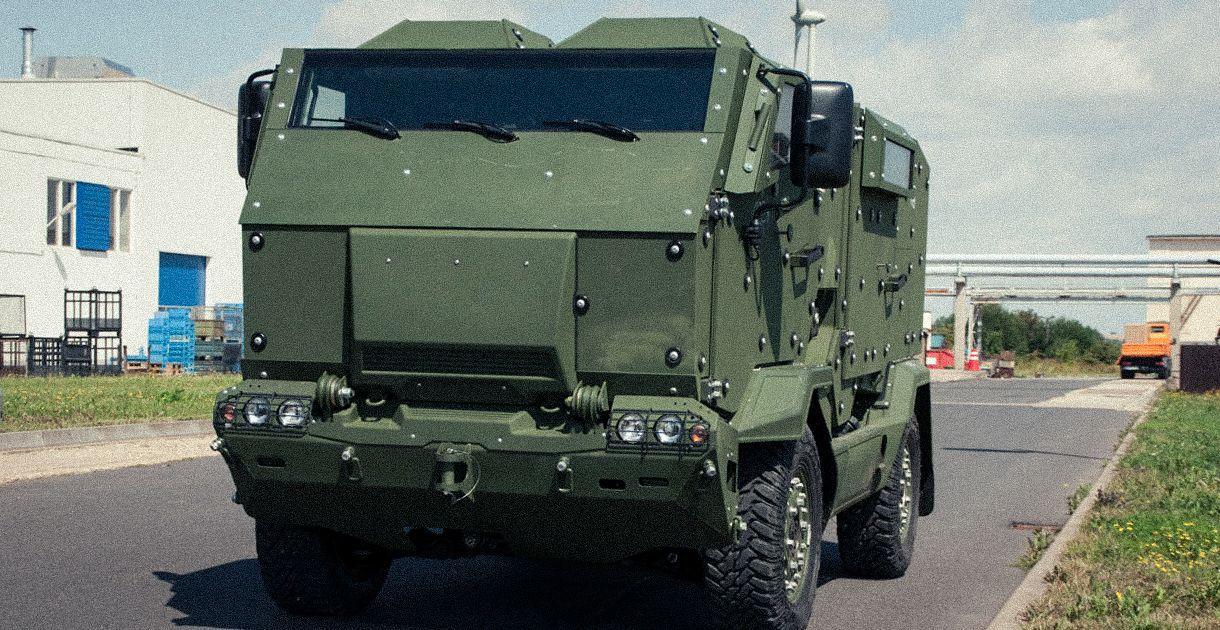

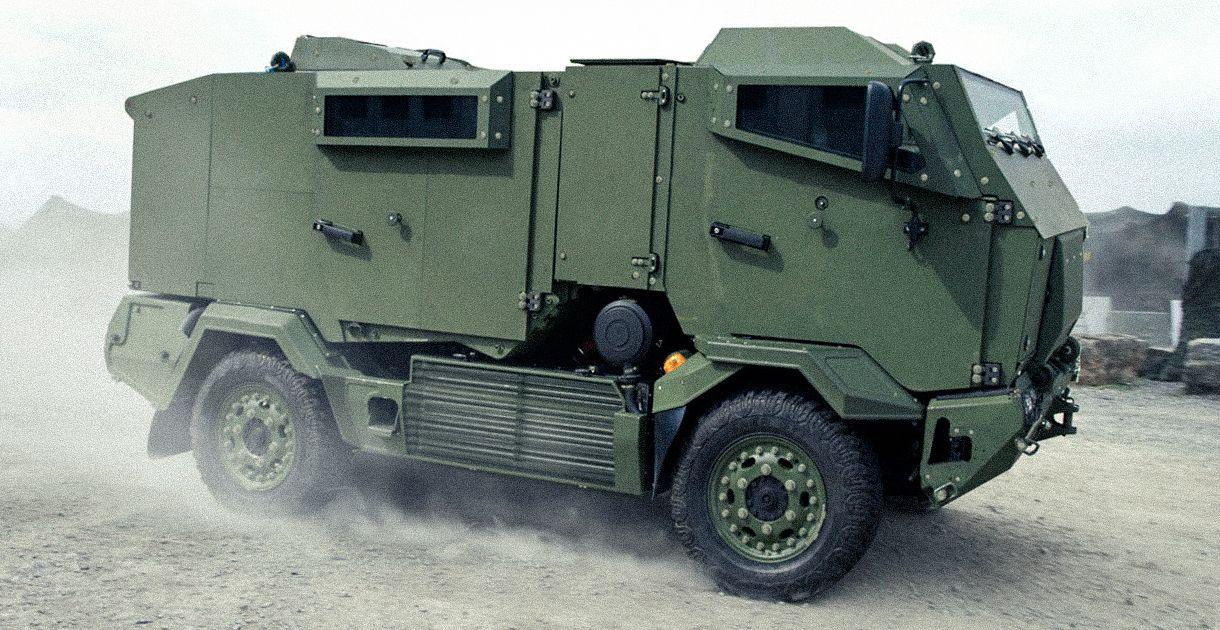

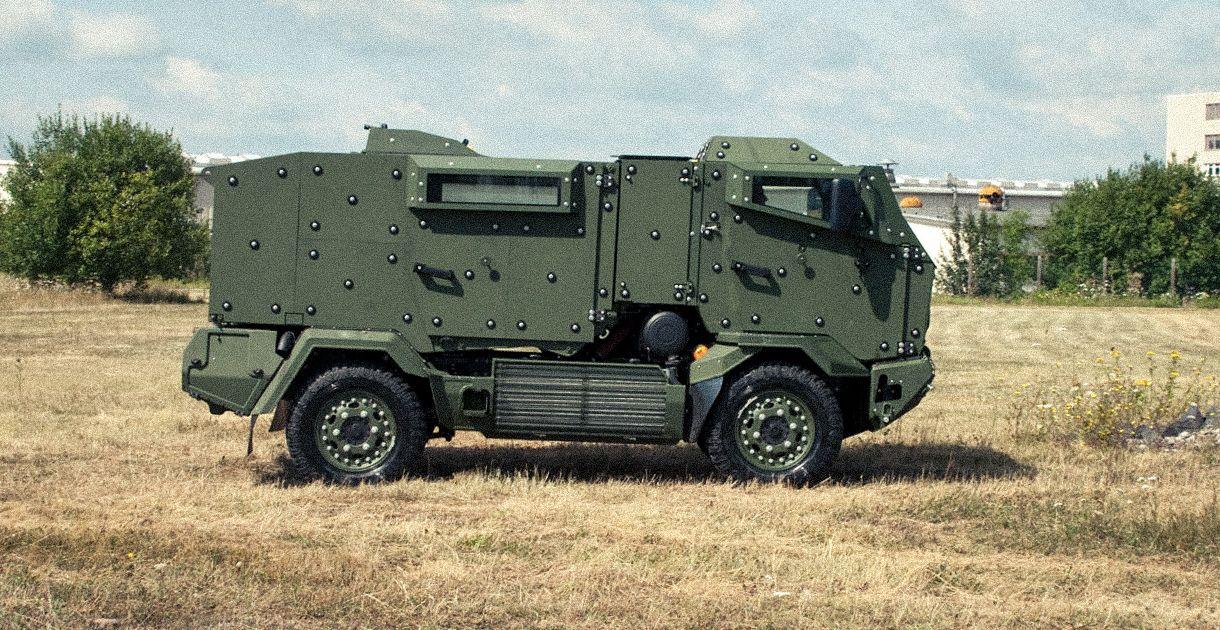

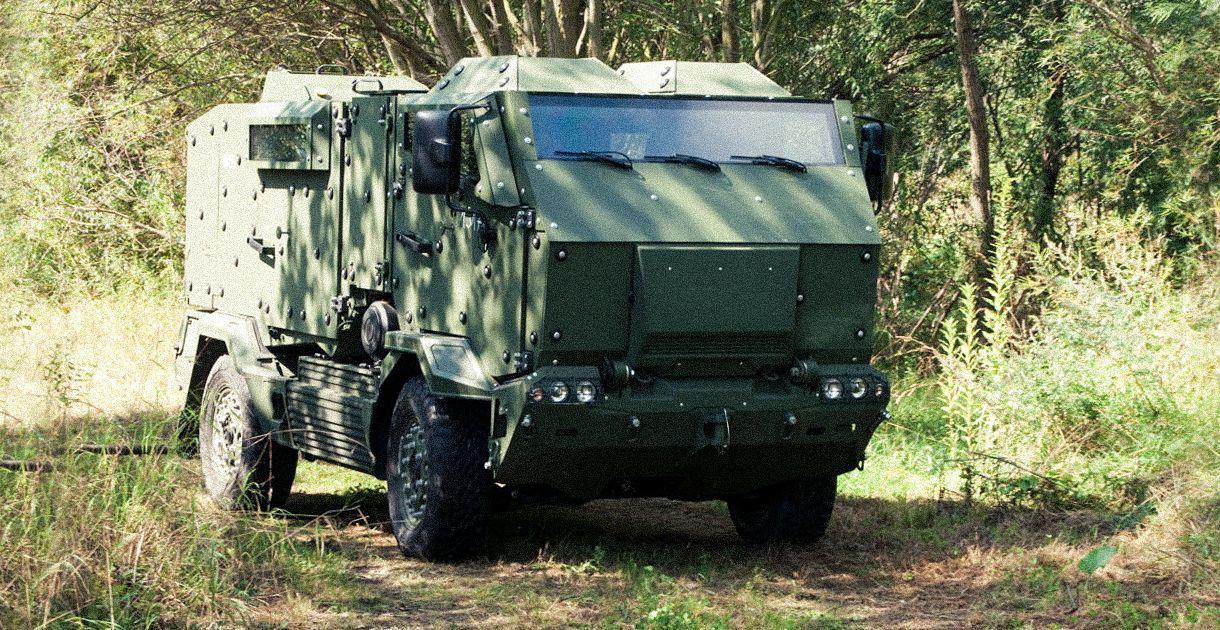

The MUNGO 3 – Armored GFF-1 class command and control vehicle
With a payload of up to 1,500 kg, the vehicle was designed to be used as an equipment kit carrier, radio and command vehicle, mobile command post, radar carrier as well as an ambulance.
Performance characteristics of the MUNGO 3 GFF 1 Large Capacity
The armored cab of the MUNGO 3 GFF 1 Large Capacity variant has a spatial volume of approx. eight cubic meters. The vehicle provides its crew with ballistic and mine protection. For information and communication, the vehicle is equipped with HF and VHF radio sets as well as a data connection to the army command and information system. Furthermore, the vehicle has a GPS-supported vehicle navigation system and an IP-capable intercommunication system, including an external telephone. An NBC protective ventilation system, air conditioning system and rear-view camera are also on hand.
PRODUCT features
Max. total weight
5.4 t
Unladen vehicle weight
3.9 t
Length
4.71 m
Width mirror-to-mirror
2.29 m
Height (operating)
2.09 m
Engine performance
107 kW at 3,600 rpm
V max
90 km/h
Range
> 400 km
Armaments
Small arms
Equipment features of the MUNGO 3 GFF 1 Large Capacity
- Air transportable
- High payload
- Very high level of protection in this vehicle class
- Low operating costs
- Easy maintenance and repair thanks to modular design
- Versatile
- All-wheel drive with gear reduction and differential lock
Large protected volume
Ballistic protection and mine protection
Facts about the MUNGO 3 GFF 1 Large Capacity
The MUNGO 3 is fully transportable by air
The vehicle has a range of over 400 km on roads and can achieve a maximum speed of 90 km/h. It is capable of overcoming inclinations of up to 42 % and traversing hillsides with a pitch angle of up to 30 %.

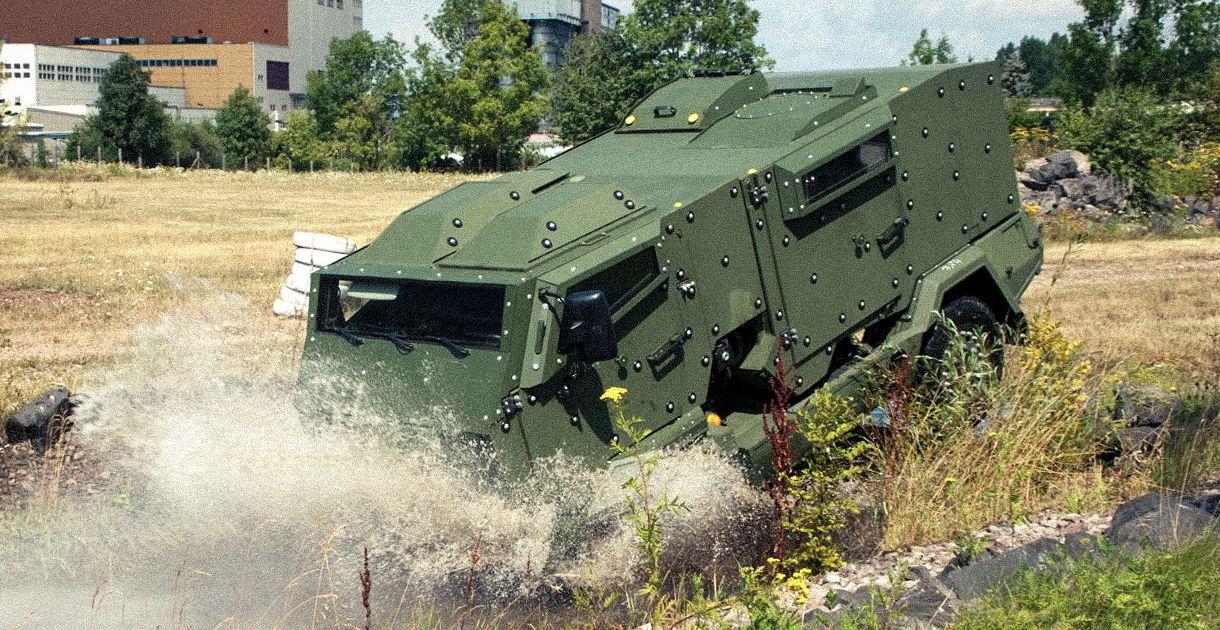

The MUNGO 3 GFF 1 Large Capacity has a ground clearance of 213 mm and can drive through bodies of water at depths down to 500 mm. The crew consists of driver, passenger and – depending on mission module – several soldiers.
Highly protected against mines as well
Universally deployable thanks to various mission equipment kits
Large doors for rapid mounting and dismounting
Large doors for rapid mounting and dismounting
