30x113mm TP

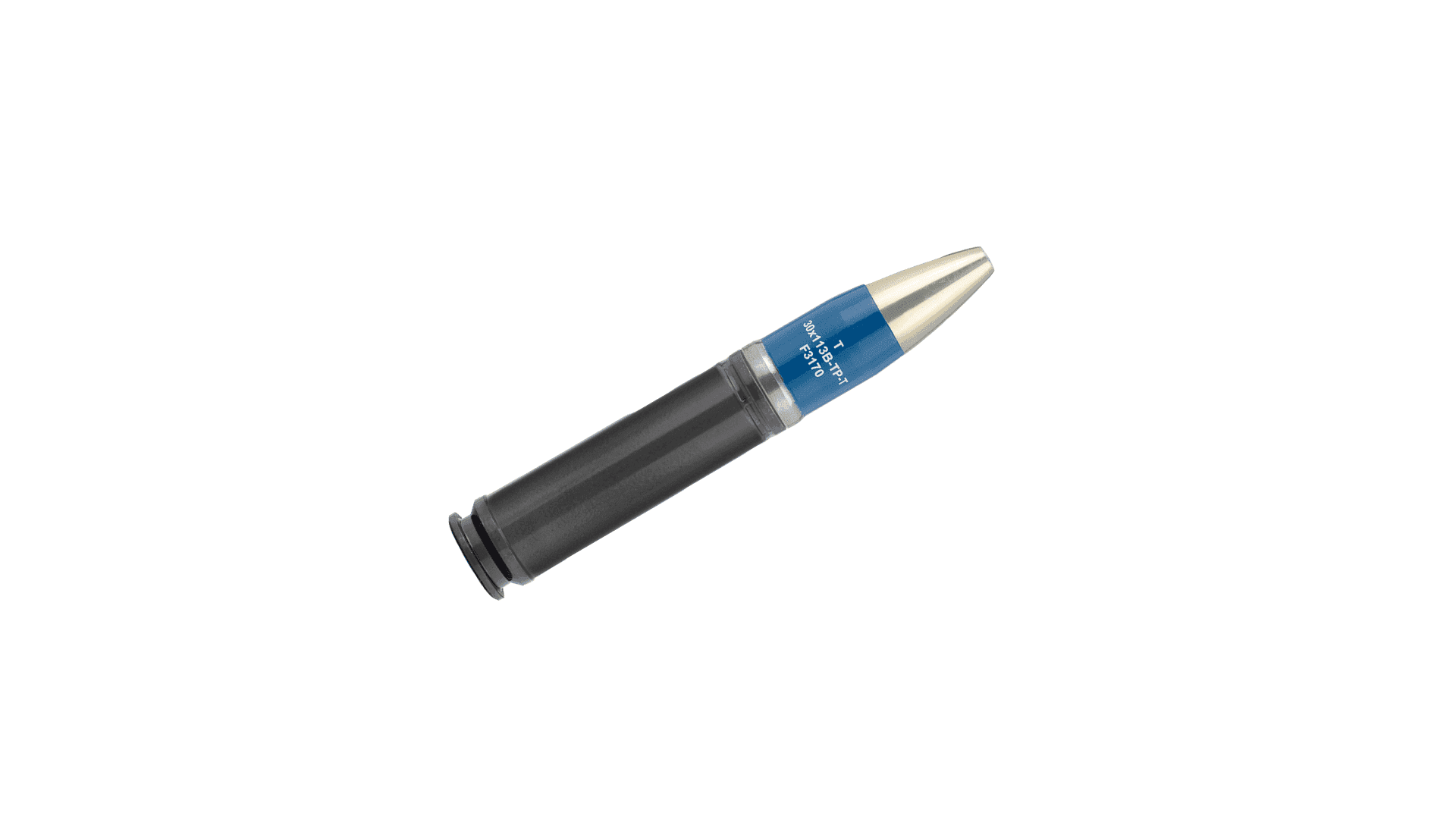

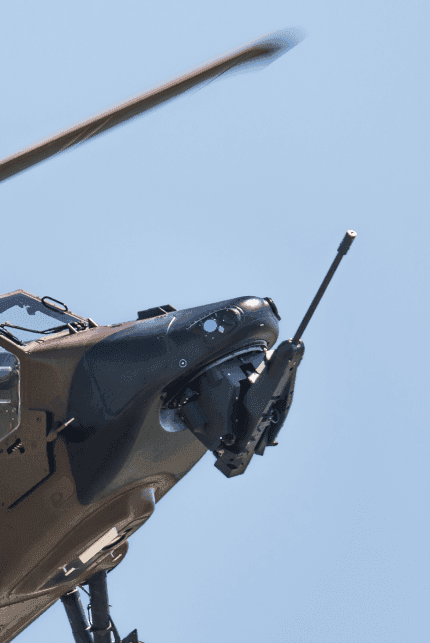

30MM x 113 B TP-T (Target Practice with Tracer) ammunition is intended for use in either the DEFA 30mm automatic weapons or 30M781 weapon fitted on Tigre helicopter. This ammunition range has been developed for either Air-to Air or Air-to-Ground training missions.
Most performant and safest training proven ammunition on the market and in service in many customer’s army
The round replicates the exact behaviour of a combat ammunition in order to prepare the user in operational conditions. The TP-T inert shell is fitted with a sintered iron band and day & night tracer. The KNDS 30MM x 113B family is the only ammunition qualified for DEFA weapon family by French DGA, DASSAULT and AIRBUS HELICOPTERS.
PRODUCT FEATURES
Type
Target Practice with Tracer (TP-T)
Caliber
30mm
Cartridge weight
~490g
Cartridge length
≤200mm
Projectile weight
275g
Cartridge case
Steel (lacquering protection)
Primer
Electric-type 52R92
Explosive
Inert
Propellant
~50g
Link
F51
Initial velocity
775m/s
Operation use
Up to 2,000m
Accuracy
H+L ≤50cm at 100m
Tracing Duration
>3s
