MUNGO Multipurpose
All-rounder for transport logistics in operations
The MUNGO Multipurpose is ideally suited as an air-transportable carrier vehicle for mission-specific tasks.
Performance characteristics of the MUNGO Multipurpose

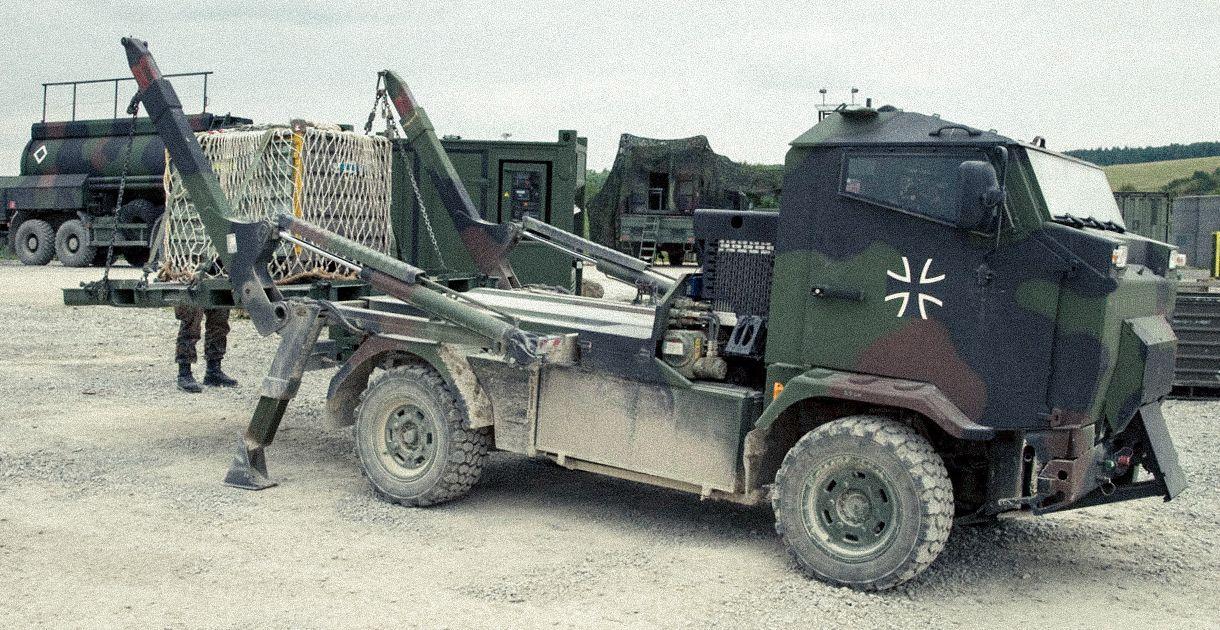

The MUNGO Multipurpose has a payload of up to 1.5 t and an available volume of approx. 7 m³, e.g. for transporting NBC equipment, weapons and ammunition, engineering machinery as well as workshop tools and tank containers. The vehicle has an integrated hydraulic system for operating the lowering gear and front attachments. The front attachment plate makes it quick and easy to mount devices such as sweeper rollers or dozer blades for various tasks.
PRODUCT features
Perm. total weight
5.9 t
Unladen vehicle weight
3.9 t
Length
4.71 m
Width mirror-to-mirror
2.29 m
Height (operating)
2,09 m
Engine performance
107 kW at 3,600 rpm
V max
90 km/h
Range
> 400 km
Armaments
Small arms
Equipment features of the MUNGO Multipurpose
- Air transportable
- High payload
- Very high level of protection in this vehicle class
- Low operating costs
- Easy maintenance and repair thanks to modular design
- Versatile
- All-wheel drive with gear reduction and differential lock
Multi-functional: Flexible transport logistics for mission forces

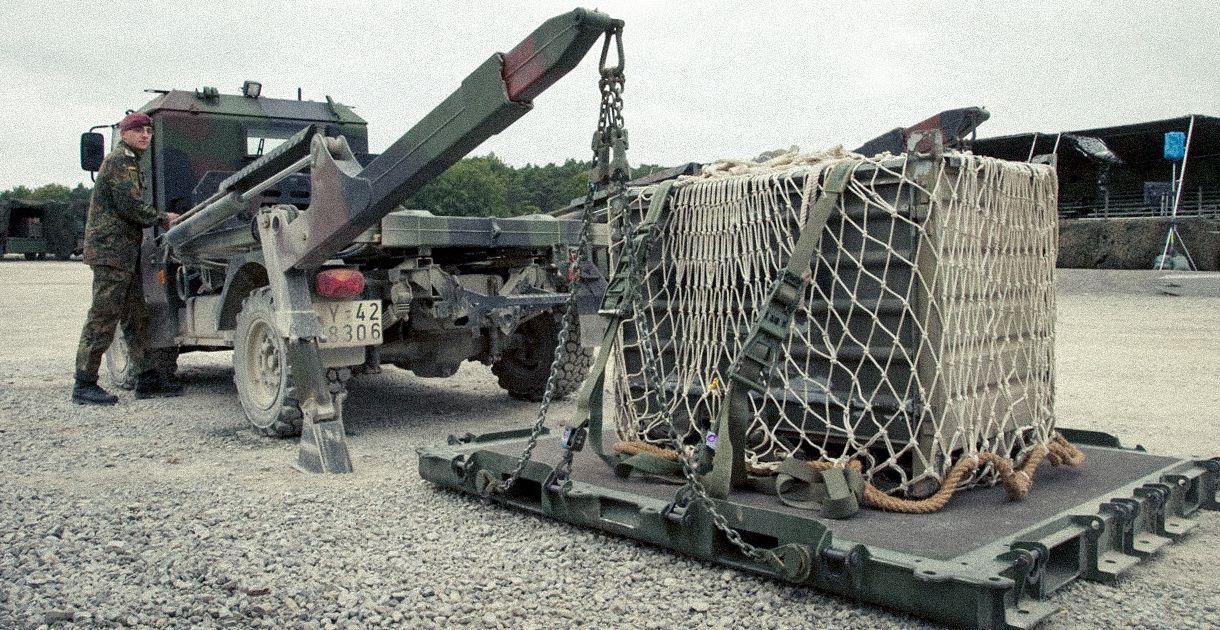

Transports NATO boxes and pallets weighing up to 1.5 t
Facts about the MUNGO Multipurpose

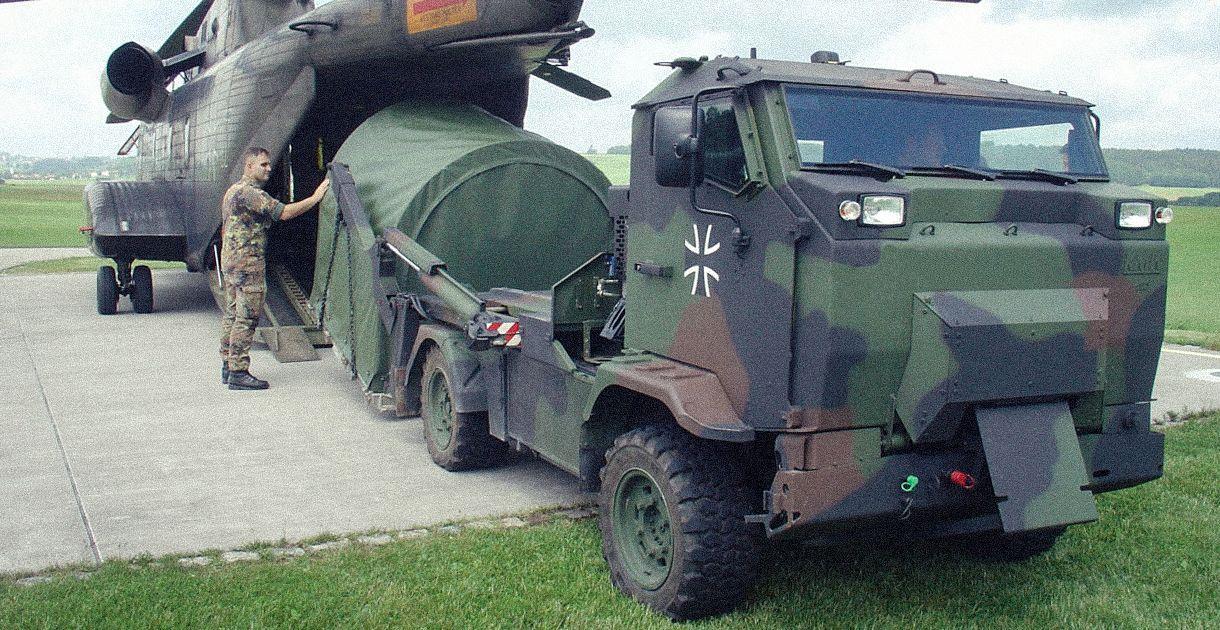

The MUNGO Multipurpose is fully transportable by air.
The vehicle has a range of over 400 km on roads and can achieve a maximum speed of 90 km/h. It is capable of overcoming inclinations of up to 42 % and traversing hillsides with a pitch angle of up to 30 %. The MUNGO Multipurpose has a ground clearance of 213 mm and can drive through bodies of water at depths down to 500 mm. The vehicle has a permissible total weight of 5,900 kg with an additional load of 1,500 kg. It can also pull a trailer with a load of up to 2,500 kg.
The transport platform is 1,800 x 2,000 mm in size. It can be used to transport various loads or equipment kits which can weigh up to 1,500 kg. In total, the vehicle is 4,400 mm long, 2,260 mm wide measured over the exterior mirrors. The use of armoured steel provides the vehicle with ballistic protection from small arms fire. The internal power pack and the use of run-flat rings in the tyres enable high remaining mobility.
Protection level
Very high level of protection in this vehicle class
All-wheel drive
All-wheel drive with gear reduction and differential lock
High payload
Transport platform
Versatile transport platform for up to 1.5 t
