MUNGO
The MUNGO vehicle family – Air-transportable and small vehicle dimensions yet high payload volume
The MUNGO has proven itself in many fields of military use. Despite its compact dimensions, it can transport up to ten fully equipped soldiers. In addition, there are even more specialised variants for a wide variety of tasks.
The MUNGO vehicle family
All variants of the MUNGO mission vehicle can be transported by air, even in internal stowage with the CH 53 cargo helicopter
From the MUNGO 2, the all-rounder for transport logistics, to the highly specialised MUNGO N/C Reconnaissance Vehicle with comprehensive reconnaissance sensors and an integrated weather station – each variant is compact yet still boasts a high carrying capacity.

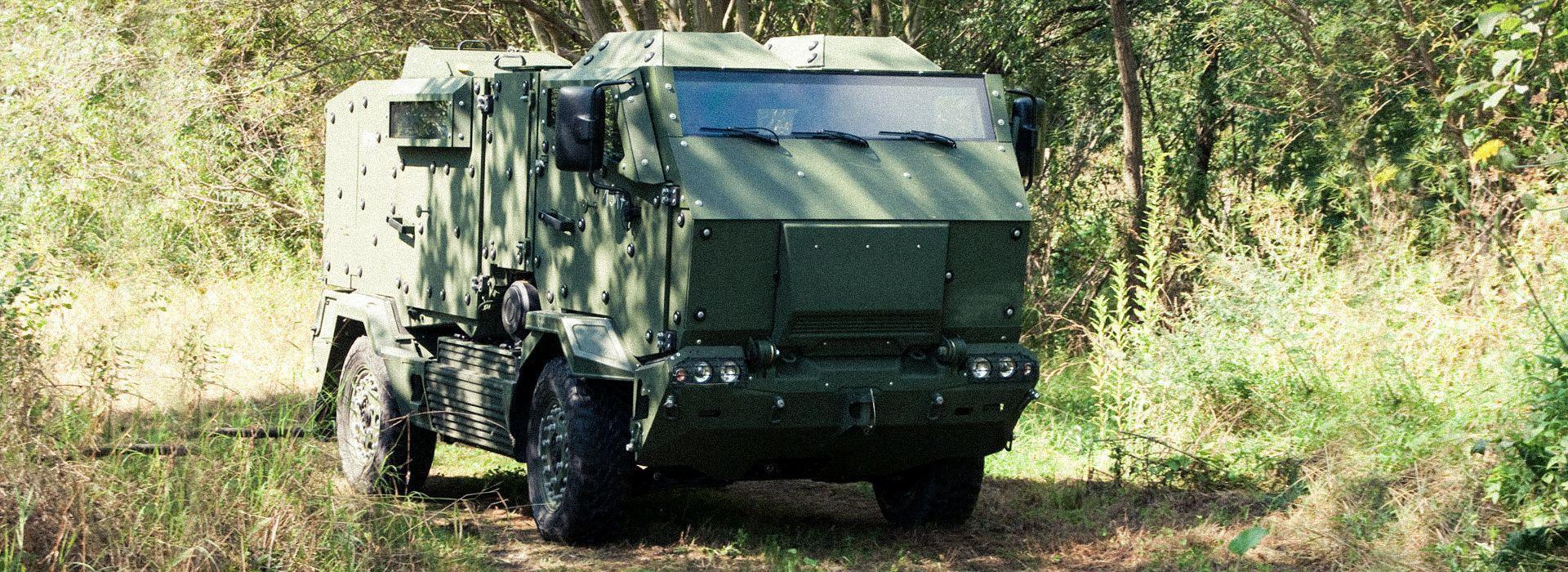

Mungo in pictures
Facts about the MUNGO
Air-transportable, armored and fit for off-road travel
The vehicle has a range of over 400 km on roads and can achieve a maximum speed of 90 km/h. It is capable of overcoming inclinations of up to 42 % and traversing hillsides with a pitch angle of up to 30 %.

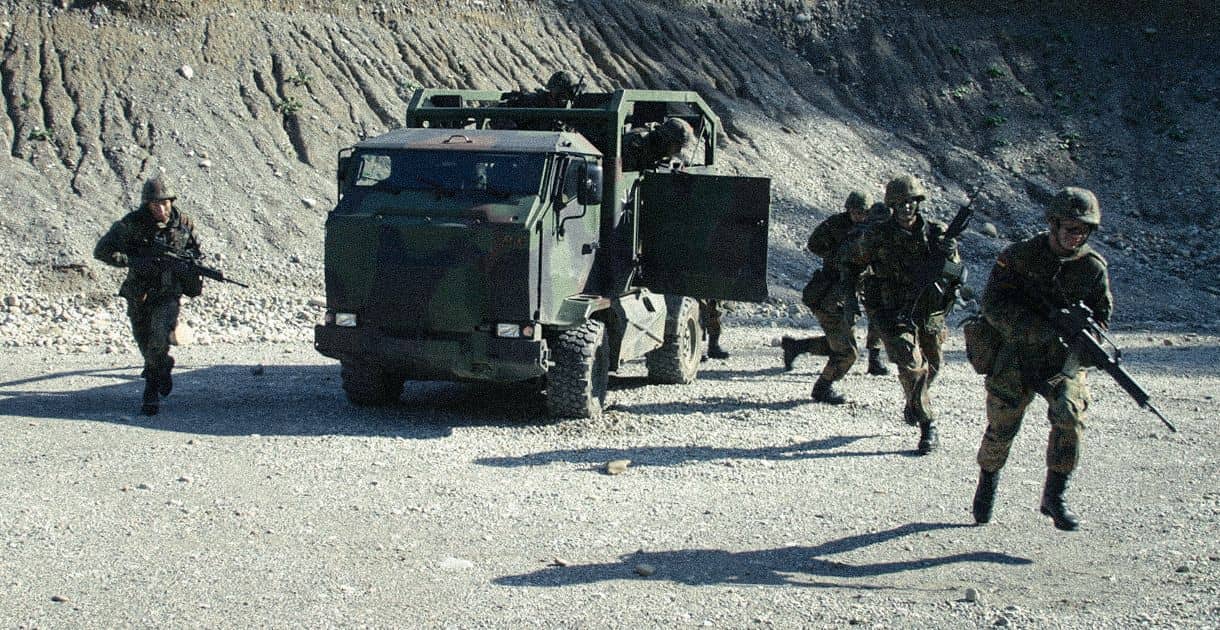

The vehicle in its base configuration has an all-round armored driver’s cab for a crew of two and a universal cargo space. Quick-change systems allow seats for up to eight soldiers to be installed and removed. Six large vehicle doors enable the crew to mount and dismount rapidly.
Protection
Protected power pack
Carrier
Carrier for hydraulic engineering machinery
Maintenance-friendly
Easy maintenance and repair
Large protected volume
PRODUCT features
Max. total weight
5.4 t
Unladen vehicle weight
3.9 t
Length
4.71 m
Width mirror-to-mirror
2.29 m
Height (operating)
2.44 m
Engine performance
107 kW at 3,600 rpm
Maximum speed
90 km/h
Range
> 400 km
Armaments
Small arms
