THL30

THL30

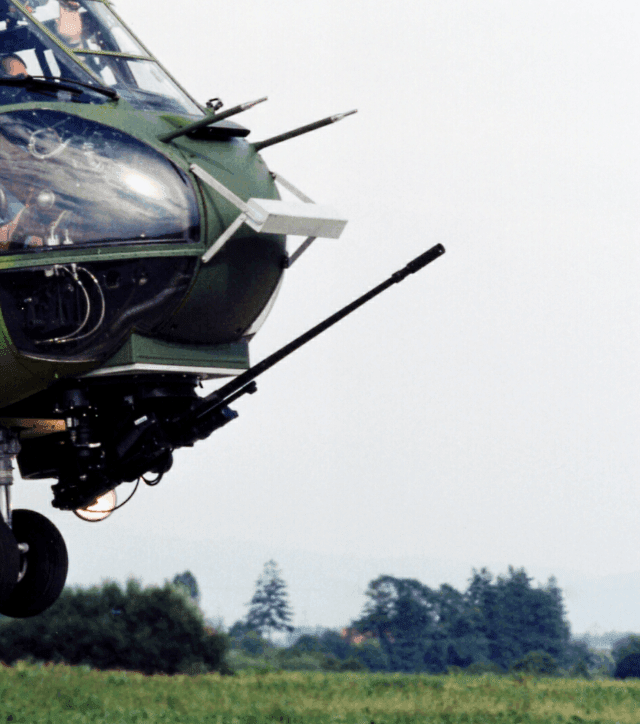

KNDS offers the THL 30 turret designed to be fitted to attack helicopters and upgrade helicopters initially intended for transport or observation.


no alt text

FACT ABOUT THE THL30

This turret is developed around the same architecture than the THL 20 turret and is fully integrated into the helicopter’s weapon system. Slaved via a databus to aiming systems (headset sights, roof-mounted sight), it provides outstanding laying accuracy.

The THL 30 is developed around the 30 M781 cannon. It fires the NATO standard 30x113mm ammunition. The 30mm calibre, the effectiveness of which has been demonstrated on the MIRAGE, provides the best weight-tofirepower ratio.

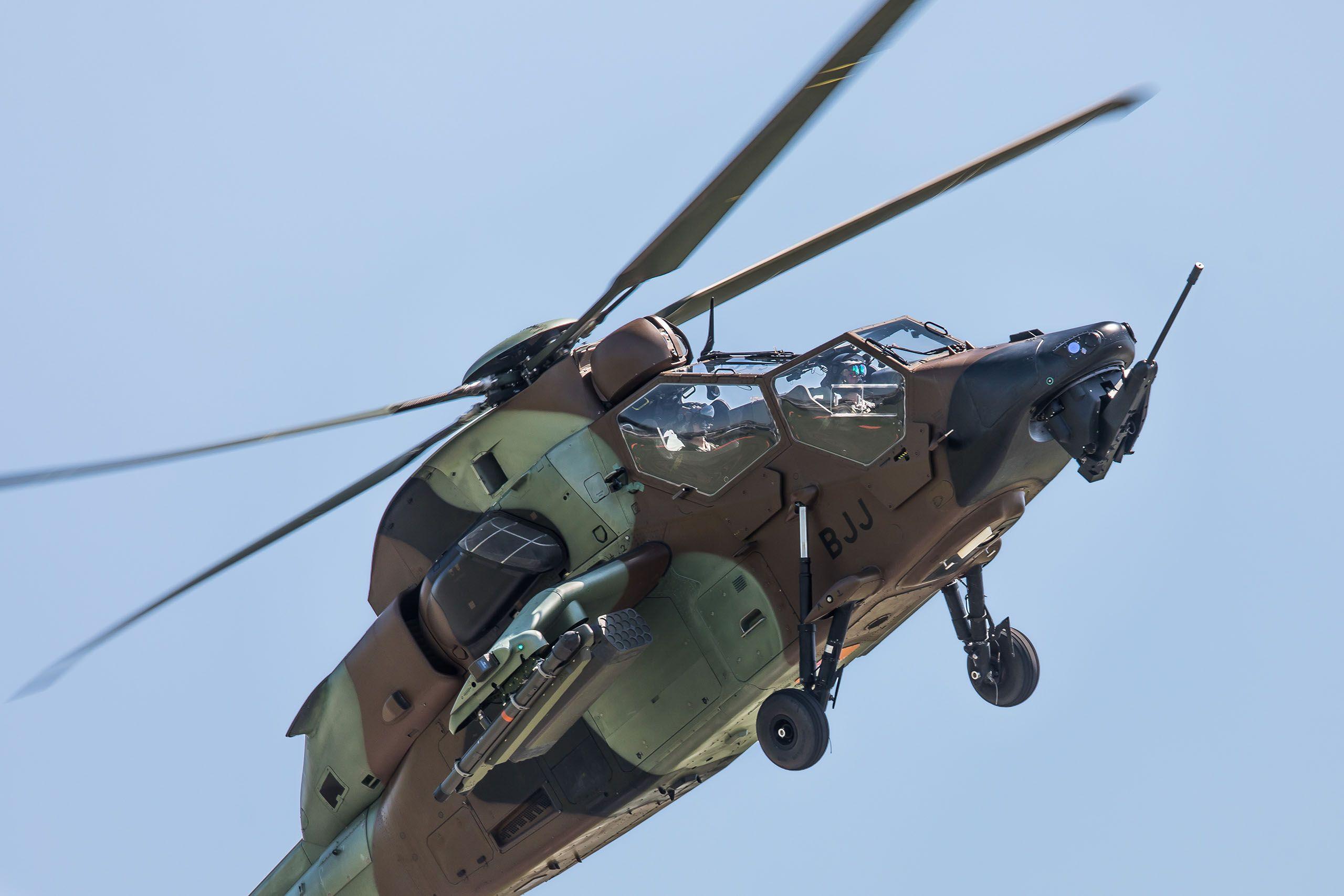

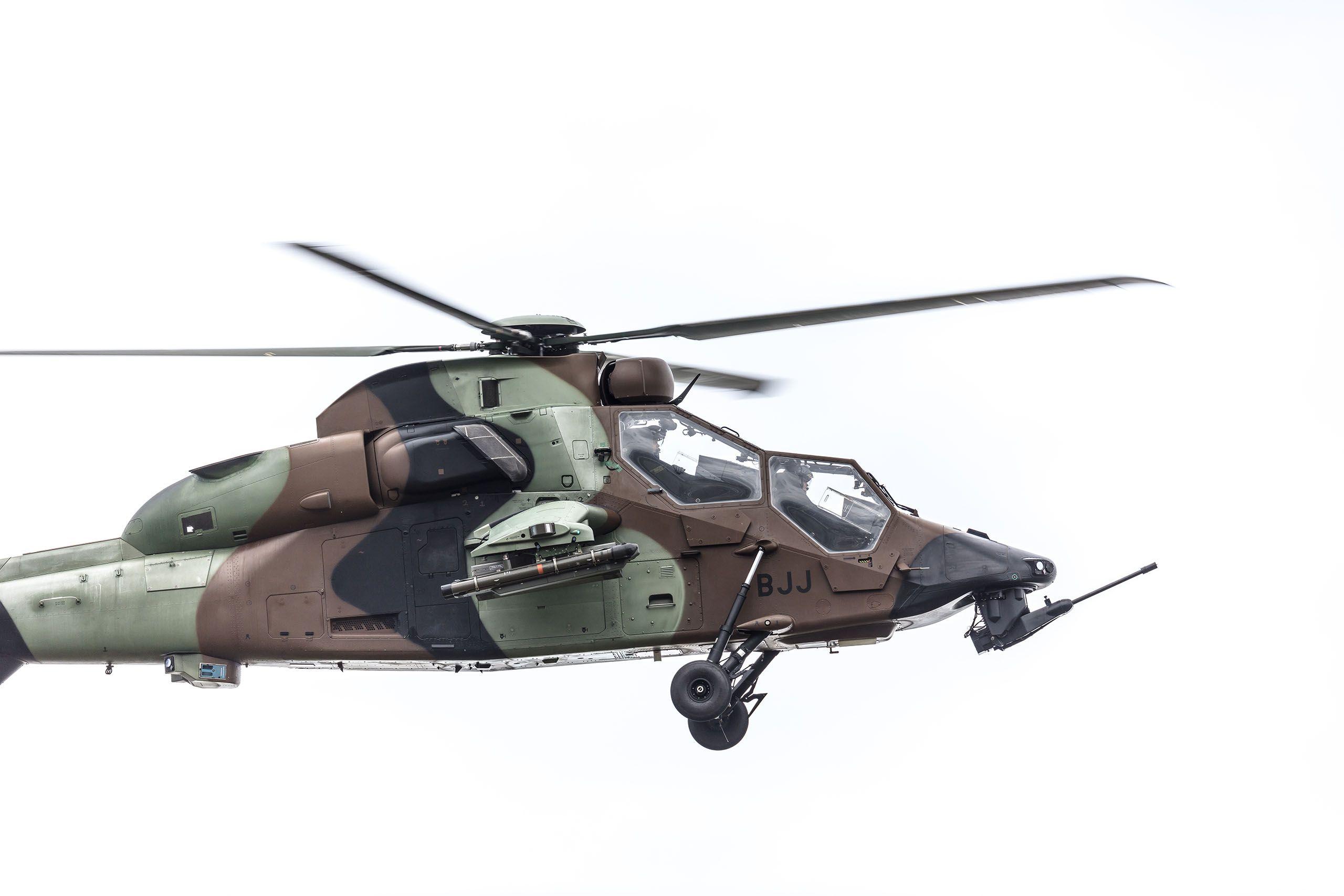

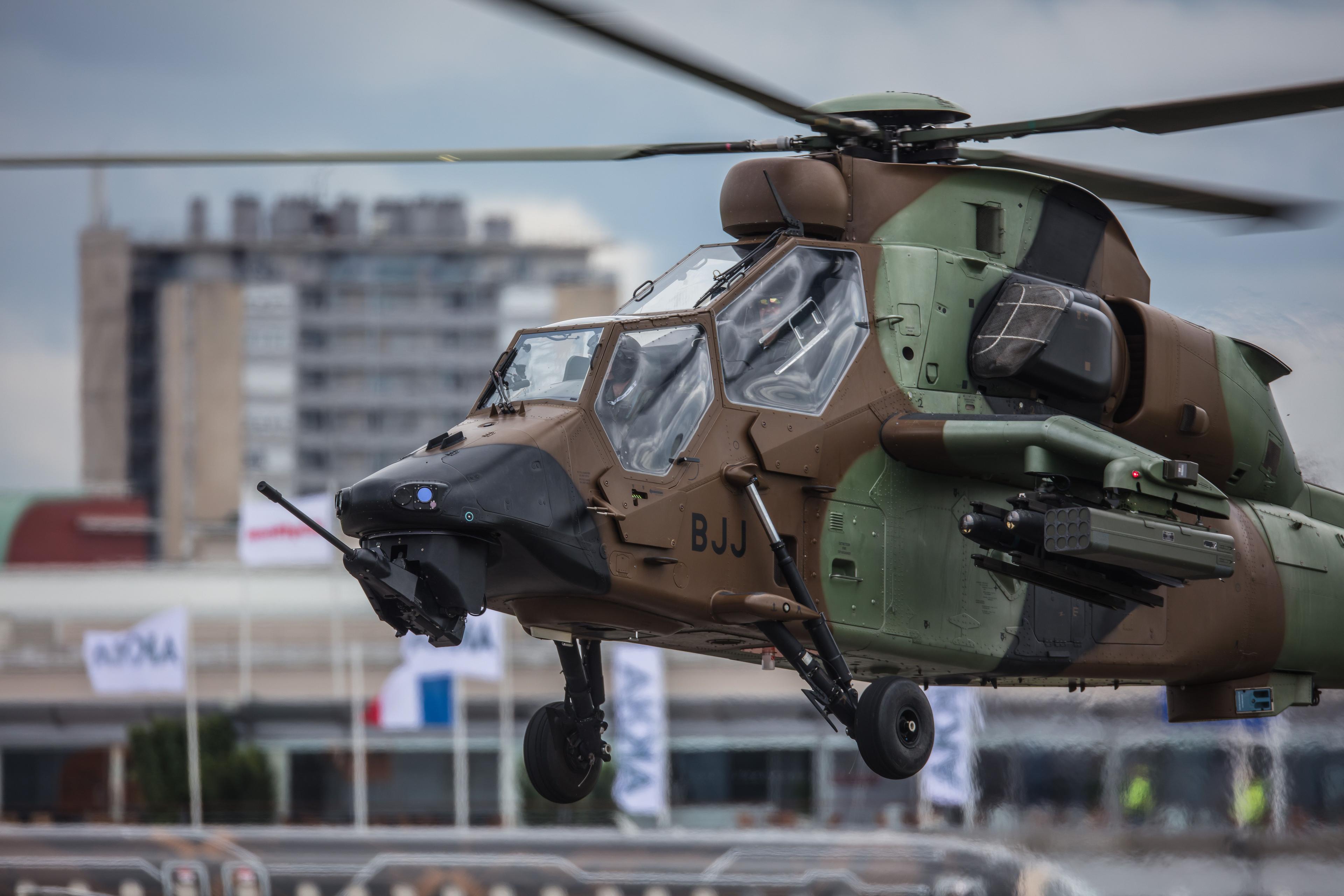

This turret is qualified on the Airbus Helicopters’s TIGRE helicopter.

Superior firepower

The THL30 system, equipped with a 30 mm cannon (type 30M781), delivers exceptional firepower capable of neutralizing armored, ground, or aerial targets with outstanding efficiency.

Extended effective range

With an optimal range of up to 2.000 meters, the THL30 can engage long-distance targets while maintaining remarkable accuracy.

Impressive rate of fire

The 30 mm cannon integrated into the THL30 provides a rate of fire of 720 rounds per minute, ensuring high saturation capability for close support missions.

Advanced stabilization and targeting

Equipped with a gyroscopic stabilization system and modern targeting equipment, the THL30 guarantees optimal accuracy even during motion or in challenging conditions.

Ammunition versatility

Compatible with multiple ammunition types (explosive, semi-armor-piercing, tracer), the THL30 is ideal for addressing a wide variety of threats, both stationary and mobile.

Robust and reliable design

Built to withstand extreme environments and operational stresses, the THL30 is a reliable system that is easy to maintain and ensures maximum operational availability.

Benefits

  • Azimuth ±90°
  • Elevation -25°/+28°
  • 30M781 cannon
  • Dimensions 1,925x232x337mm
  • Power supply
  • 115V – 400Hz

no alt text

features

  • Total weight

    212kg

  • Interface efforts

    650daN

  • Dimensions (diameter)

    750mm

  • Height

    536mm
