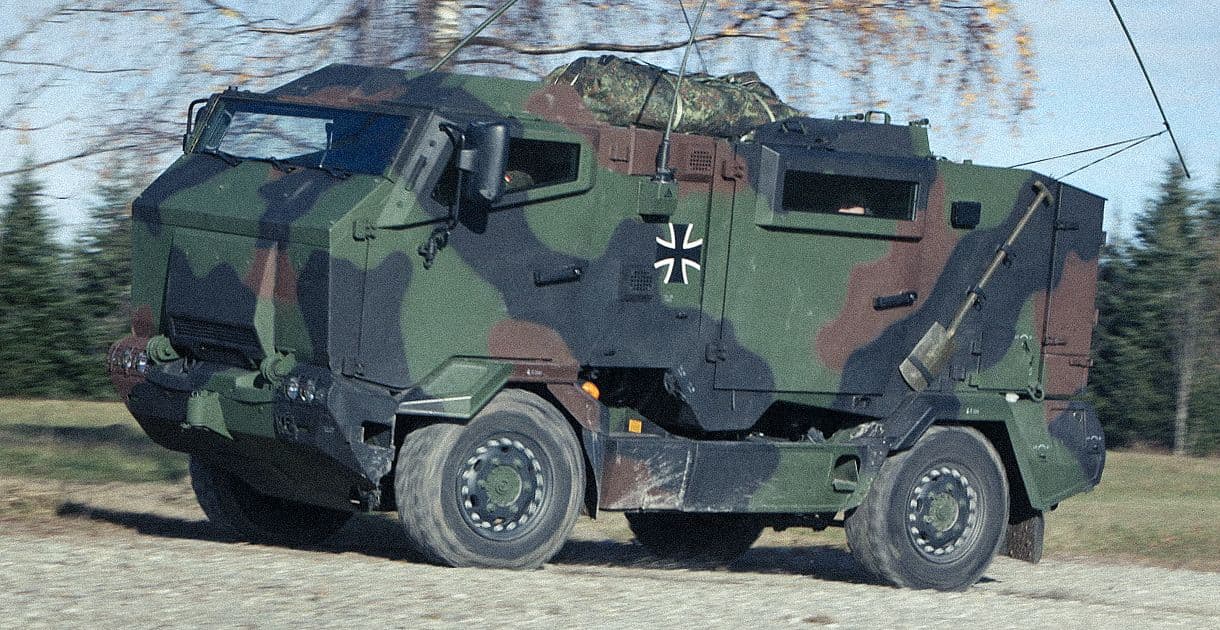

MUNGO N/C Reconnaissance
N/C ordnance reconnaissance vehicle
The MUNGO N/C Reconnaissance enables N/C detection and preliminary identification of NBC warfare agents and comparable industrial hazardous substances. It can also be used to monitor contamination and document its extent.
Performance characteristics of the MUNGO N/C Reconnaissance
Nuclear and chemical ordnance reconnaissance in a highly mobile and rapidly deployable vehicle. The data collected by the sensors installed can be evaluated and the hazard alerts can be transmitted to the superordinate command posts with the telecommunications equipment.
PRODUCT features
Max. total weight
5.9 t
Unladen vehicle weight
4.98 t
Length
4.45 m
Width mirror-to-mirror
2.26 m
Height (operating)
2.2 m
Engine performance
107 kW at 3,600 rpm
V max
90 km/h
Range
> 400 km
Armaments
Small arms
Equipment features of the MUNGO N/C Reconnaissance
- Air transportable
- High payload
- Very high level of protection in this vehicle class
- Low operating costs
- Easy maintenance and repair thanks to modular design
- Versatile
- All-wheel drive with gear reduction and differential lock

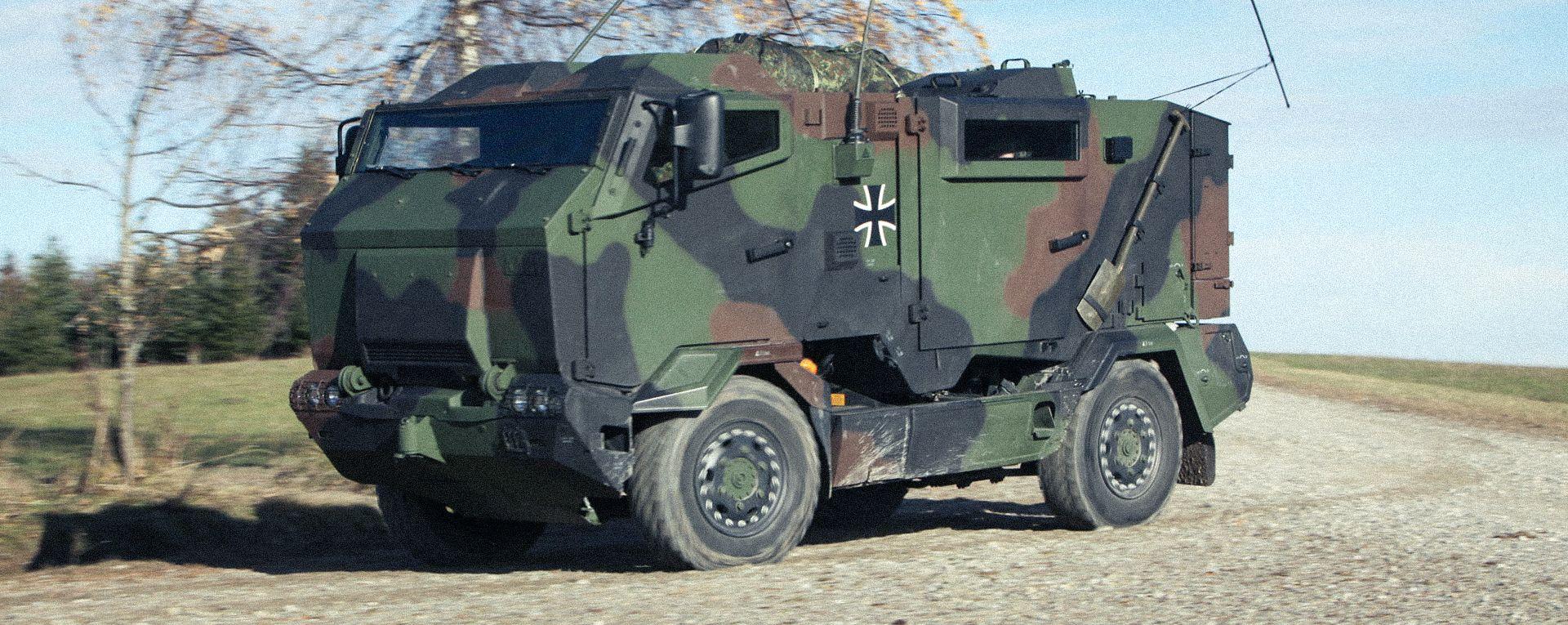

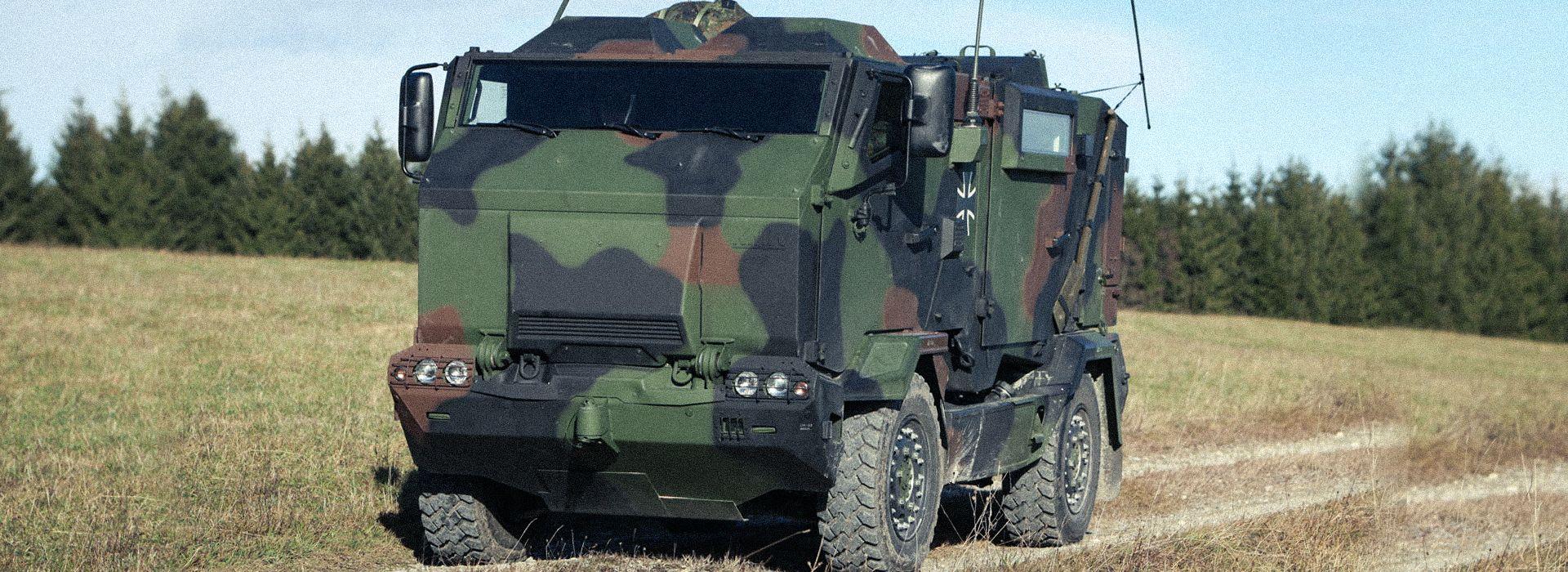

The MUNGO N/C Reconnaissance
Air-transportable for a wide variety of mission scenarios
Facts about the MUNGO N/C Reconnaissance
The MUNGO N/C Reconnaissance is fully transportable by air.

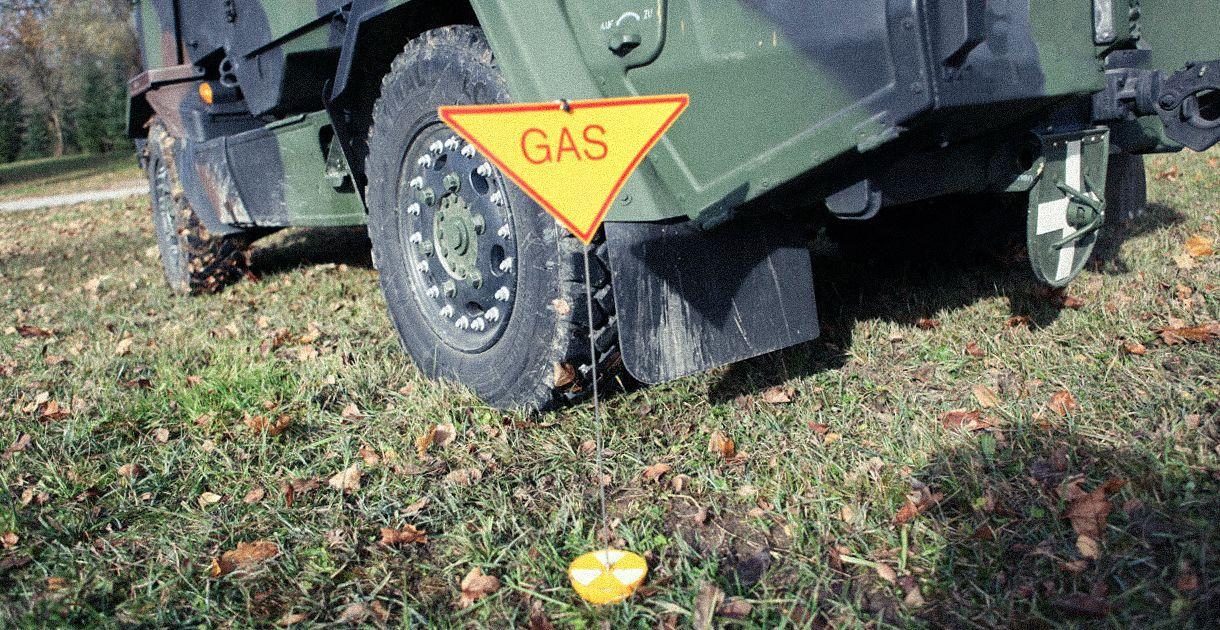

The equipment of the MUNGO AC Spür includes the radiation scavenging equipment for A-reconnaissance, an early warning system with a flame spectrometer and a sensor bank for C-air reconnaissance, as well as a double wheel detector with automatic wheel changing device and another flame spectrometer for C-ground reconnaissance, the mass spectrometer MM including peripherals and inlet system, the marking equipment, the meteorological device and the sampling equipment.
Among other things, the MUNGO N/C Reconnaissance is equipped with a radiation detection device for N reconnaissance, an early warning system with a flame spectrometer and a sensor bank for C air reconnaissance as well as a double-wheel sampling system with automatic wheel changer and another flame spectrometer for C ground reconnaissance, the mass spectrometer MM including periphery and intake system, marking equipment, meteorological device and sample collection equipment.

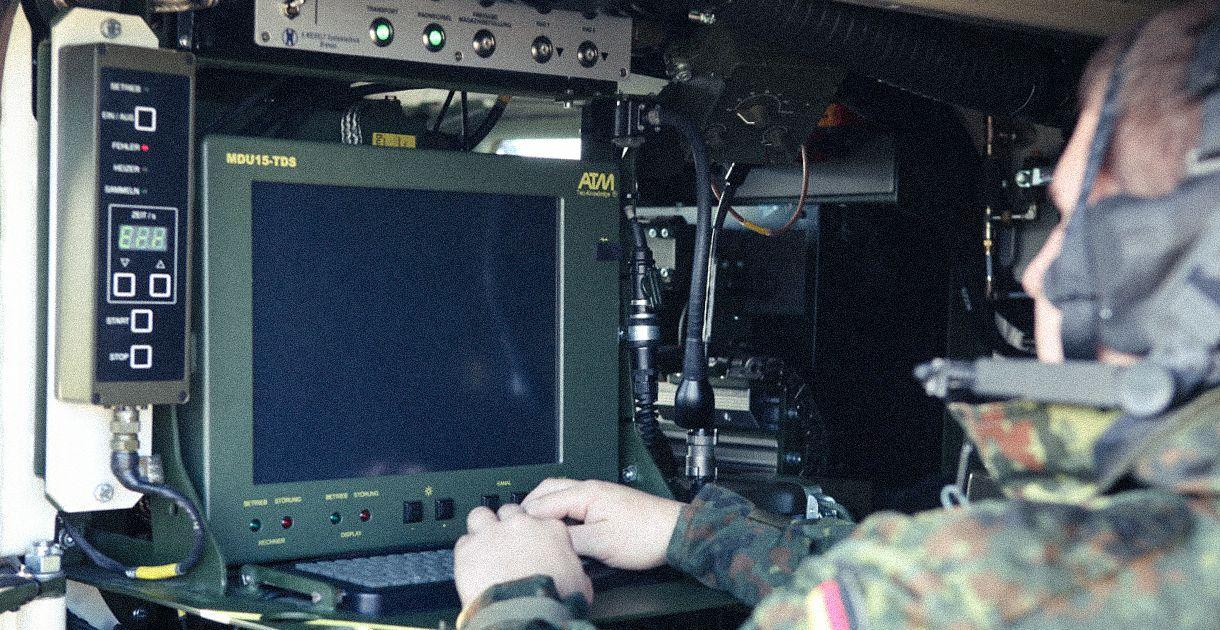

The information and communication equipment includes HF and VHF radio sets as well as a data connection to the army command and information system. Furthermore, the vehicle has a GPS-supported vehicle navigation system and an IP-capable intercommunication system, including an external telephone.

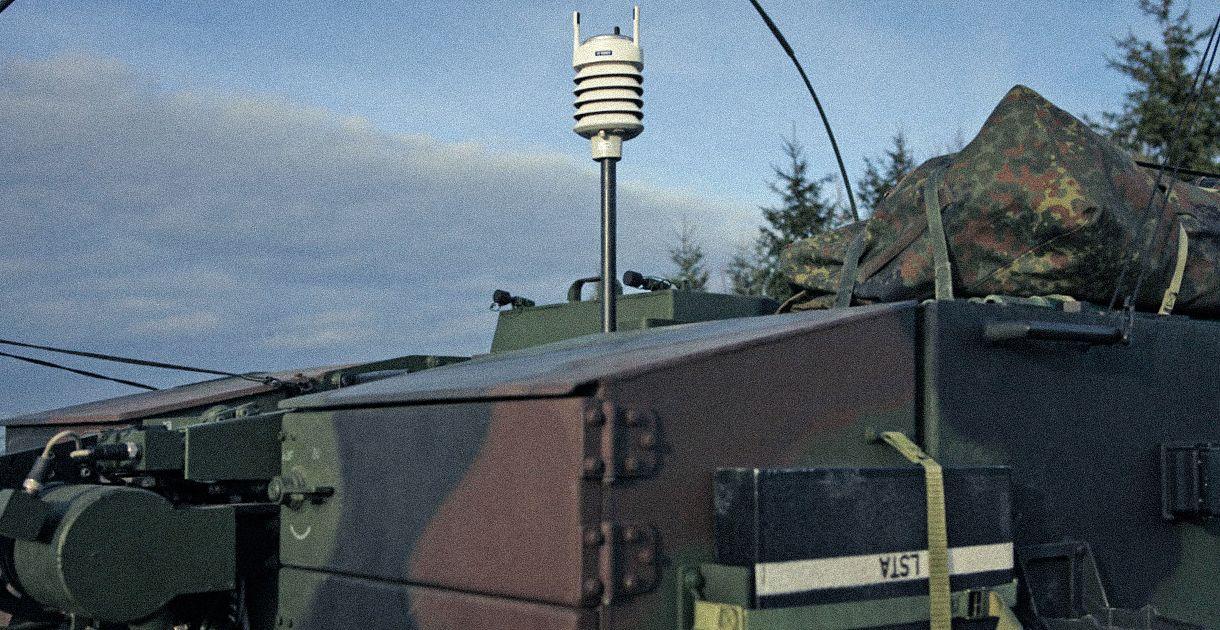

An NBC protective ventilation system, air conditioning system and rear-view camera are also on hand.
The vehicle has a range of over 400 km on roads and can achieve a maximum speed of 90 km/h. It is capable of overcoming inclinations of up to 42 % and traversing hillsides with a pitch angle of up to 30 %.
The MUNGO N/C Reconnaissance has a ground clearance of 213 mm and can drive through bodies of water at depths down to 500 mm.
The crew consists of driver, commander and one recon soldier.
The use of armoured steel provides the vehicle with ballistic protection from small arms fire. The internal power pack and the use of run-flat rings in the tyres enable high remaining mobility.
Communication
VHF HF and data radio
Maintenance-friendly
Easy maintenance and repair

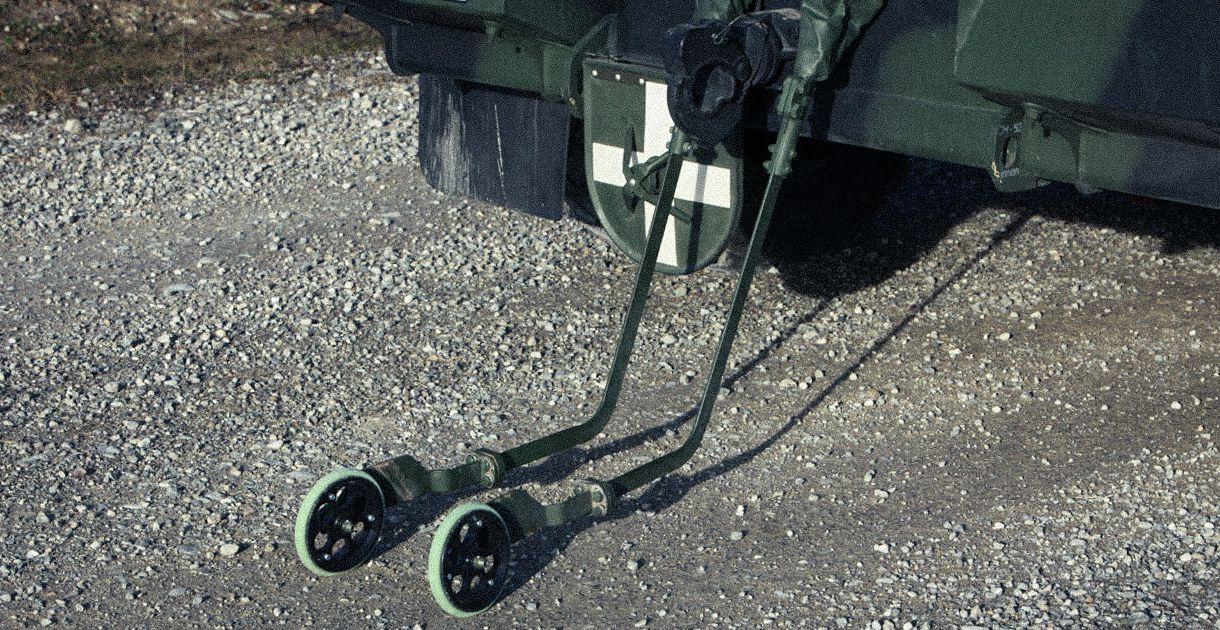

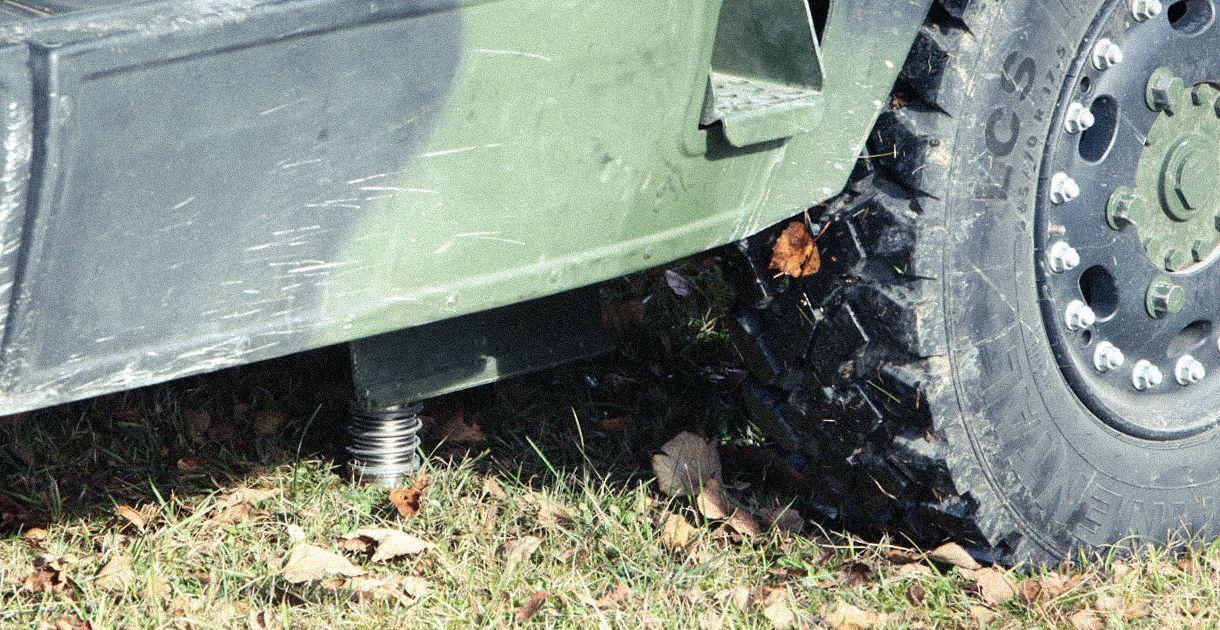

Sample collector
Double-wheel sampling system for protected sample collector
Protection
Armoured crew compartment
Off-road capability
All-wheel drive incl. off-road gear reduction
