NERVA-XX
NERVA-XX

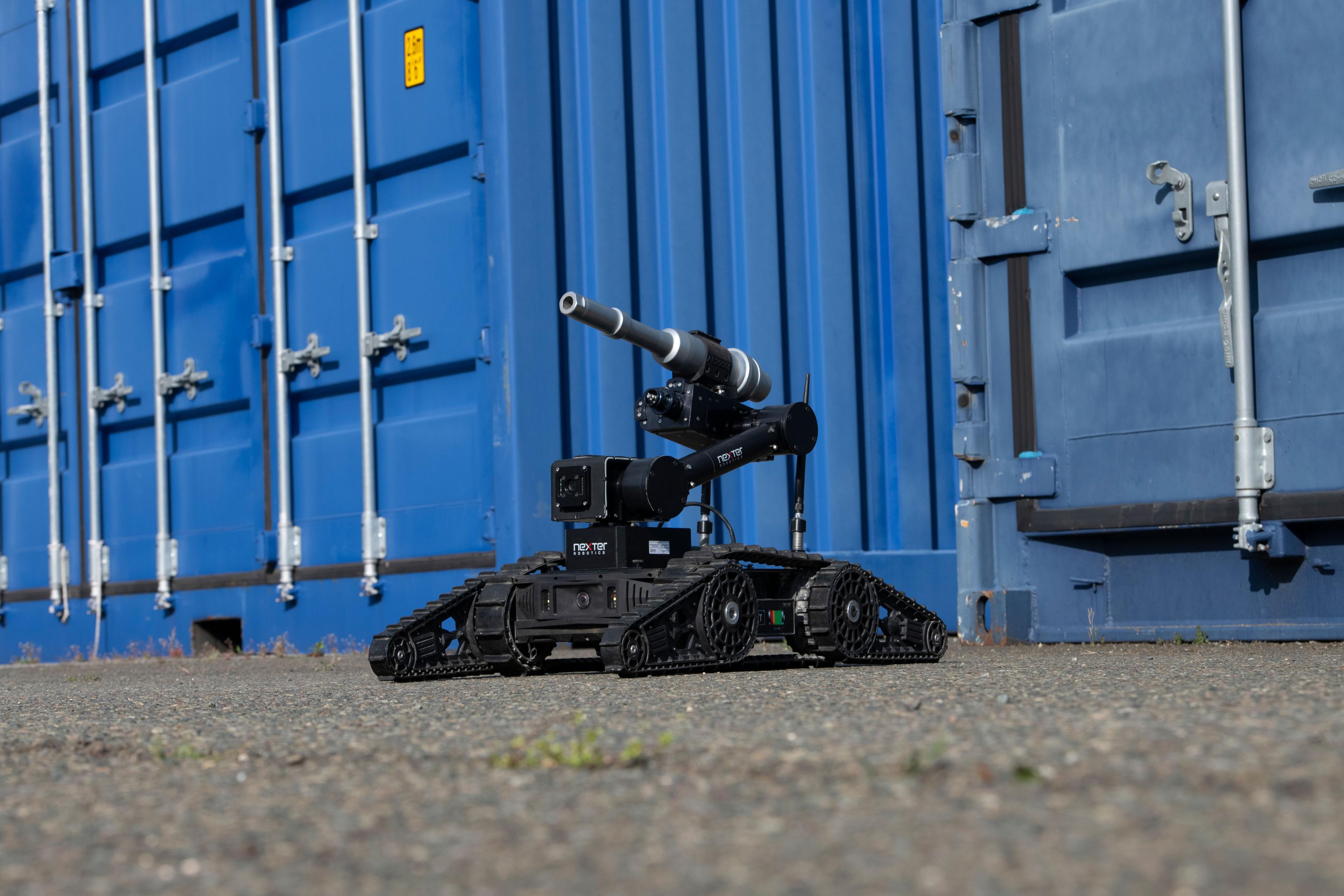

Mini Multi-mission Tactical Robot for Counter IED, Observation & Detection
NERVA-XX is the latest member of the NERVA Family aiming at performing demining, counter-IED (Improvised Explosive Device) and EOD (Explosive Ordnance Disposal) tasks and many more missions thanks to its modular design; indeed, NERVA-XX can be equipped with various mission modules (the same as the NERVA-LG) allowing it to be used for different military or civilian applications such as ISR (Intelligence, Surveillance and Reconnaissance), critical infrastructure protection, disaster site monitoring & mapping, etc.
Able to be operated in both day and night, the NERVA-XX can be used in many different situations such as urban, rural and indoor environments (airports, railway stations, underground, tunnels, etc.) in harsh conditions and also on all types of terrains and climate conditions such as the NERVA-LG.
FACTS ABOUT THE NERVA-XX
- Short starting time (< 1 min)
- Weight (with arm & small OCU): < 20 kg
- Endurance: between 2h30 to 4h (depends on mission profile)
- Stand-by endurance: 15h (surveillance area without movement)
- Speed: up to 5 km/h
- Obstacle clearance: 20 cm
- Slope: 45°
- Temperature range: -20 °C to + 55 °C
- Lifting capability: up to 4.5 kg
- Towing capability: 20 kg
Chassis
- Rugged
- Waterproof : IP65
- Weight: 12.2 Kg with two batteries
- 2 motorized flippers
- Payload capacity: 15 kg
- Inclinometers & GPS
- Size (cm, with track kit long): 47 (L) x 42 (W) x 18 (H without antenna)
- Microphone & loudspeaker (5 m range)
- Up to 3-mission-module capability, fully compatible with NERVA® LGs payloads
- Front camera: • Color/IR & light white + IR • H-FOV: 110° and V-FOV: 60°
- Rear camera: • Color/IR & light white + IR • H-FOV: 100° and V-FOV: 75°
- 2 battery slots (Hot swap) - Up to 3 PICATINY rails
PRODUCT FEATURES
Length
6.285 m (Emergency Vehicle) 6.332 m (Ambulance Vehicle)
Width
2.39 m
Height
2.88 m (Emergency Vehicle) 2.615 m (Ambulance Vehicle)
Weight
12.5 t
Engine performance/torque
163 kW/810 Nm
Range
> 700 km
Protection
Mine, ballistic, IED, NBC protection
