TITUS® family
APC; Command Post; FOV; Self-Propelled Mortar Carrier 120mm; Armoured Ambulance; CBRN (Recce); Repair; Cargo; EOD.
Need more info?
TITUS®
TITUS®
This 6x6 highly protected vehicle is designed for a wide range of missions, including troop transportation, counter-insurgency operations, logistical support, and battlefield command.
FACTS ABOUT THE TITUS®
TITUS® has been designed with respect of the main international standards (STANAG, MIL-STD…) to answer an evolutive worldwide demand for hybrid warfare: from counter-insurgency missions to high-intensity operations. Thanks to its robust architecture, TITUS® provides a rugged off-road mobility combined with a high payload capability and unique manoeuvrability performances. It is therefore fully capable to operate in difficult terrain conditions – including the desert – as well as in confined urban environments and mountain areas.
As an APC, TITUS®’ main mission is to transport an Infantry Squad while providing an optimized level of protection and adequate fire support capabilities.
Mission
Conventional warfare Counter terrorism Combat in urban areas Peace enforcement Border control
Mobility
TATRA – T815 chassis Turning circle between kerbs adapted to urban areas Significant payload growth potential COTS maintenance and reliability Obstacle clearance Rapid acceleration and efficient breaking
Protection
According STANAG 4569 AEP55 for ballistic, mines and IED protection
Human integration

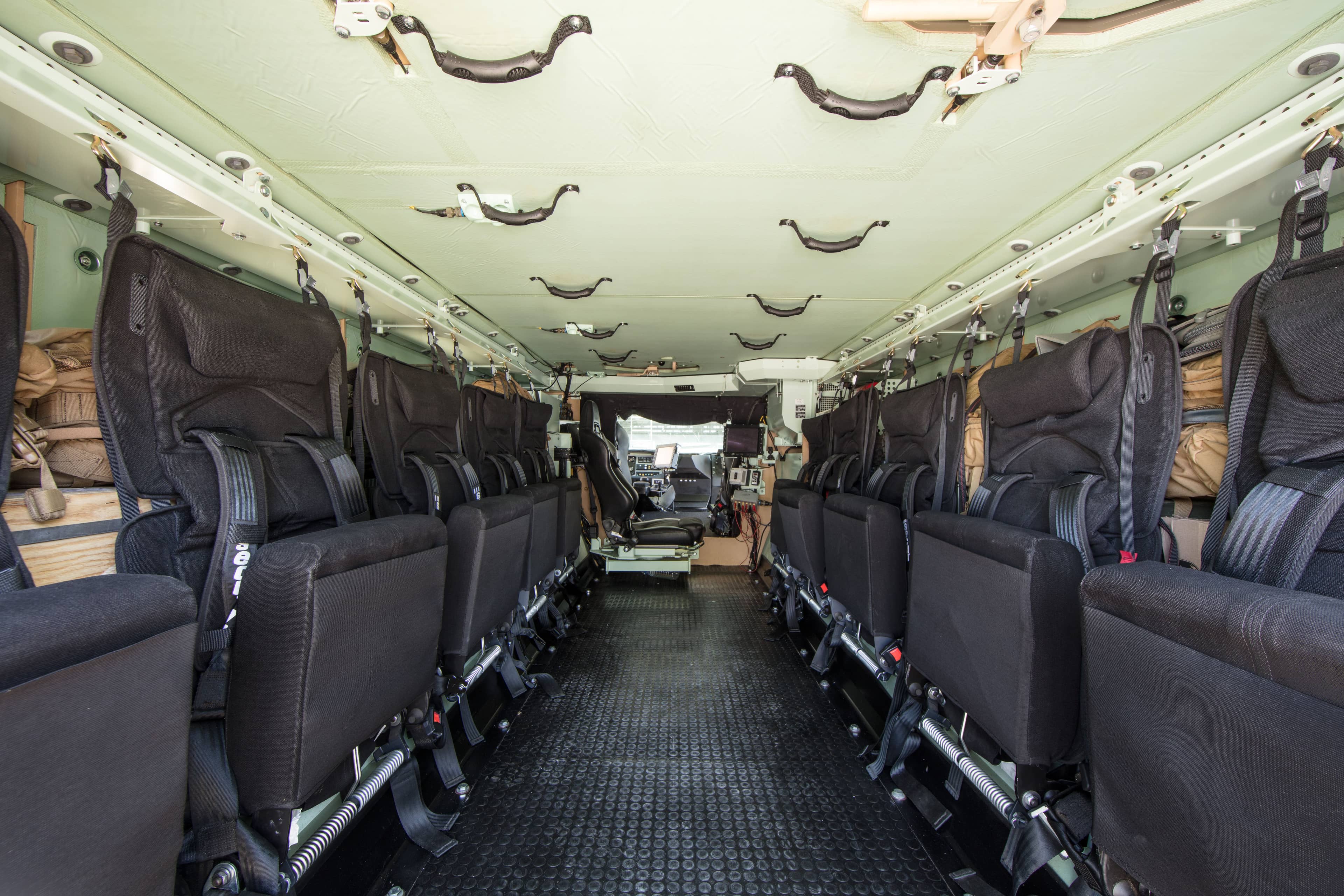

Tactical pivoting seat in front vision and optimized collaborative dialogue with the squad Hatches, rear ramp and side doors for easy ingress/egress Large interior volume for personnel equipment storage Perimetric vision
High tech equipment
Recce UGV (KNDS Nerva LG Robot…) BMS Jammers, shot detectors, additional equipment Day/night sights, perimetric vision Tethered drone for forward observation
Fire power
From 7.62mm pintle-mounted up to 30mm RCWS 40mm grenade launcher
Outside Vision
- One front windscreen and two side windows (transparent armour)
- One rear ramp window with firing port
- Three side windows on each side in the rear compartment (option)
Liveability
- Air conditioning / heating system (weather conditions A1/C0/C1 optional)
- Full CBRN (optional)
Energy
- Four 12V – 120Ah batteries
- One alternator delivering 370A
- Nominal voltage : 24 V
features
Unladen weight
17t
Operational weight
23t
Maximum gross weight
27t (30t for MKII version)
Width
2.55m
Height
2.73m (roof)
Length
7.77m
Ground clearance
0.3/0.4/0.5m
Range
700km
Maximum speed
110km/h
Slope
60%

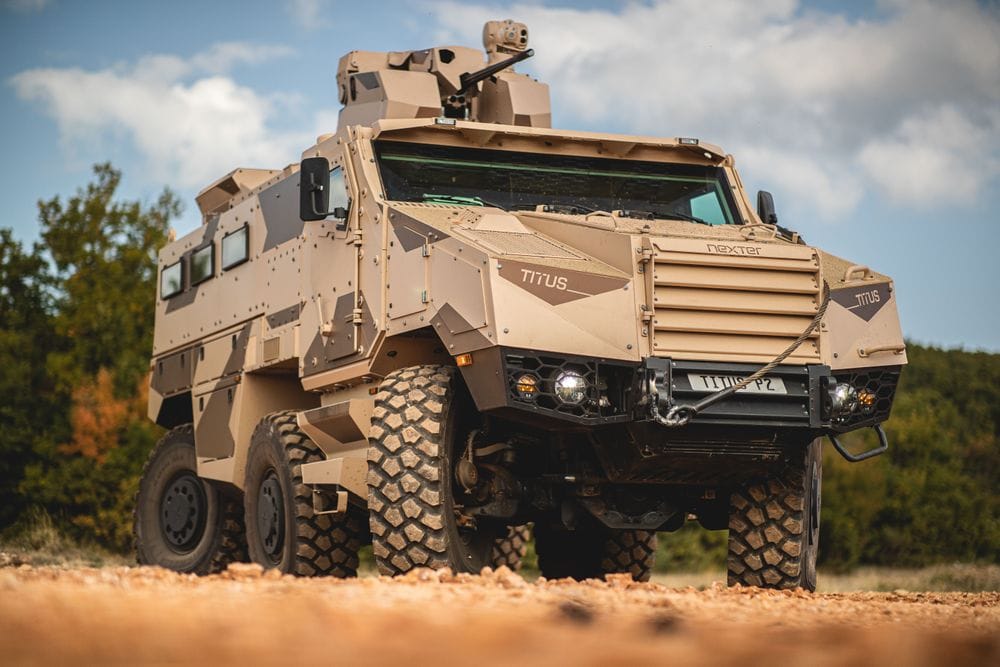

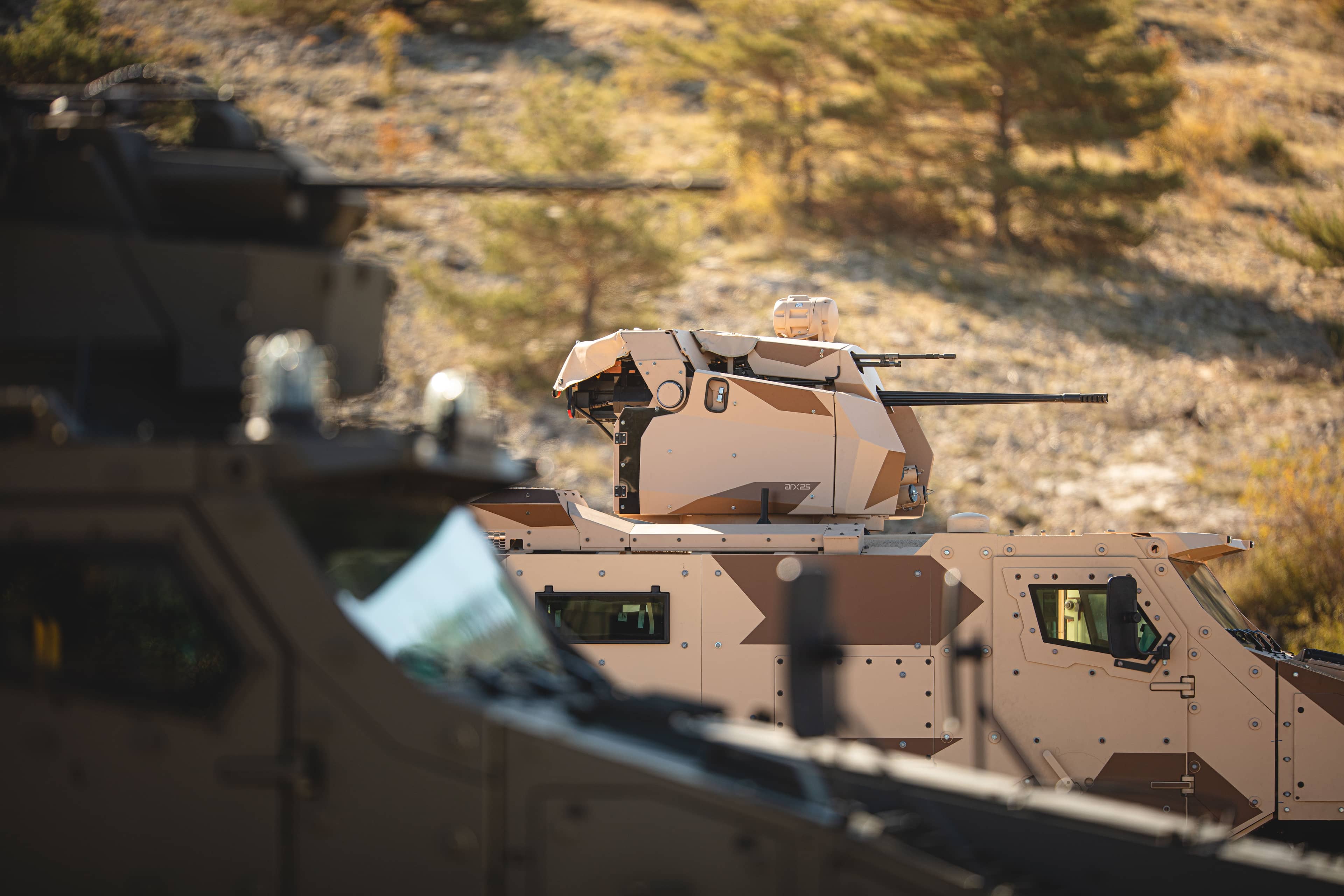

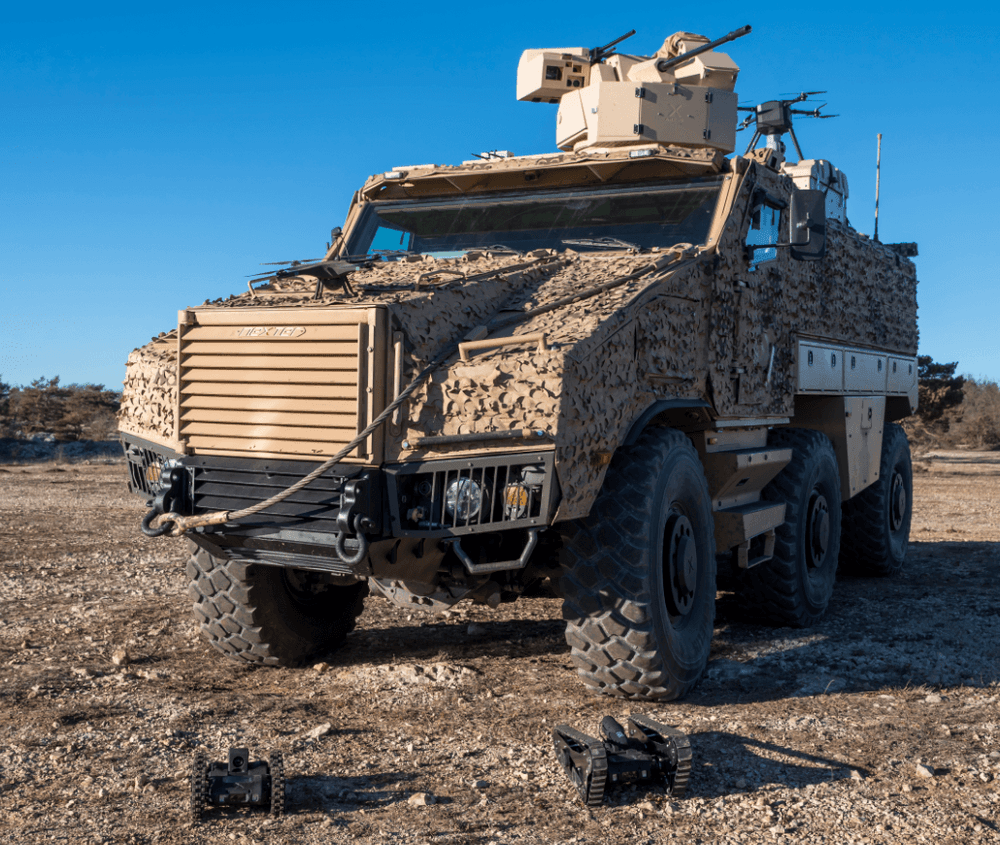

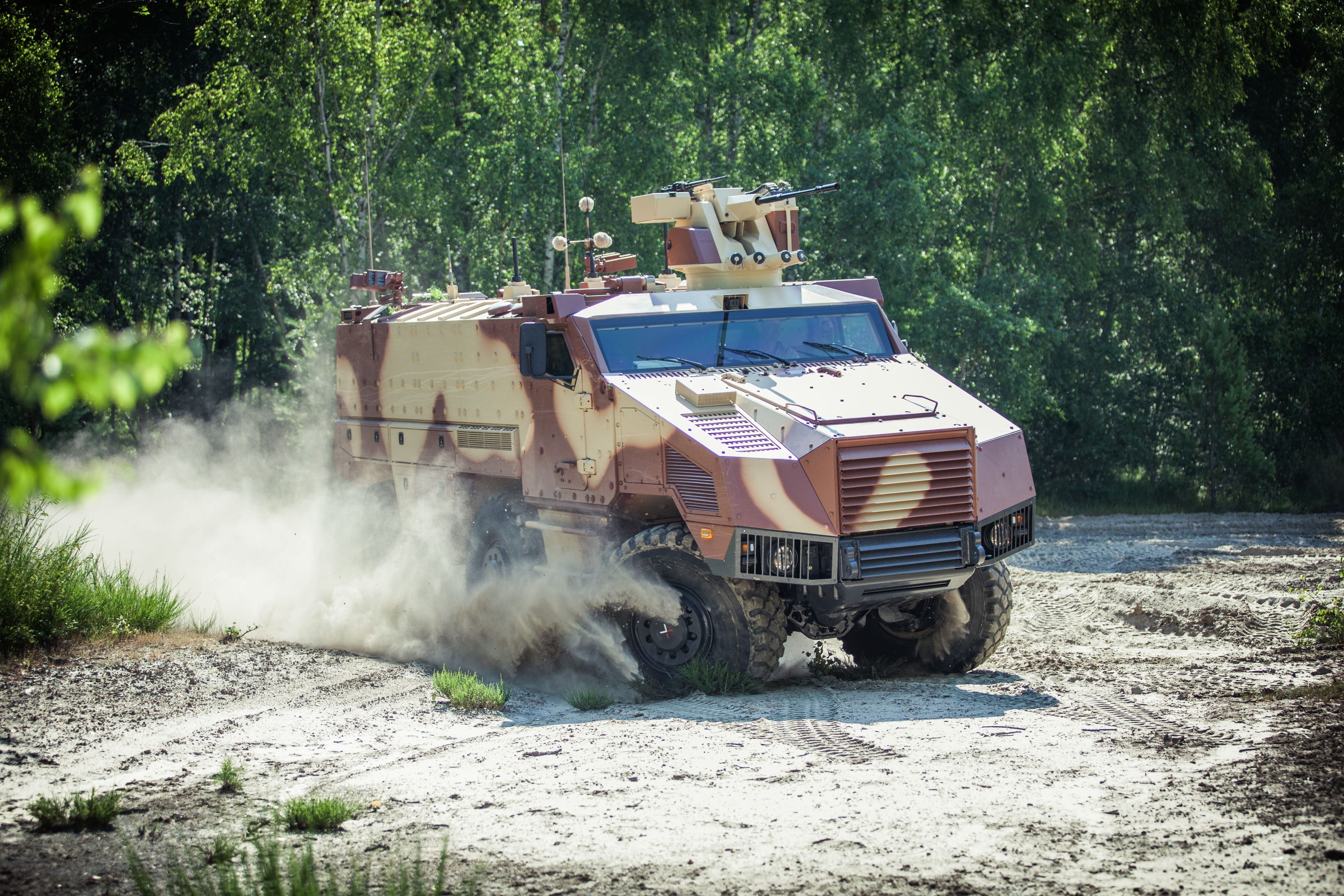

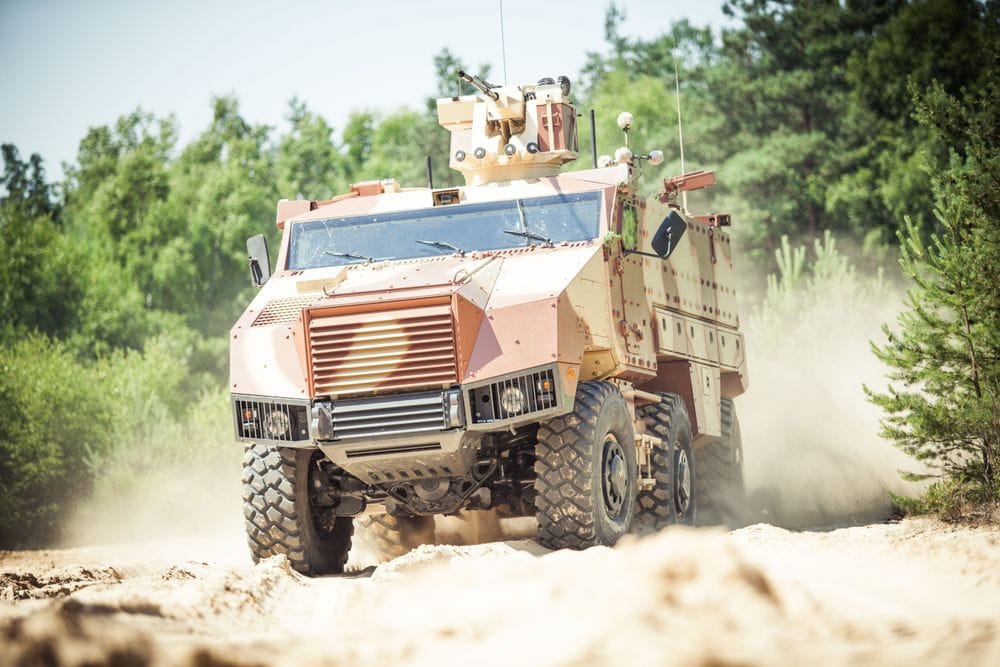

THE TITUS® in pictures
Related products to the TITUS®
You will find many other products from KNDS France to accompany this one, which are associated with the product illustrated.
