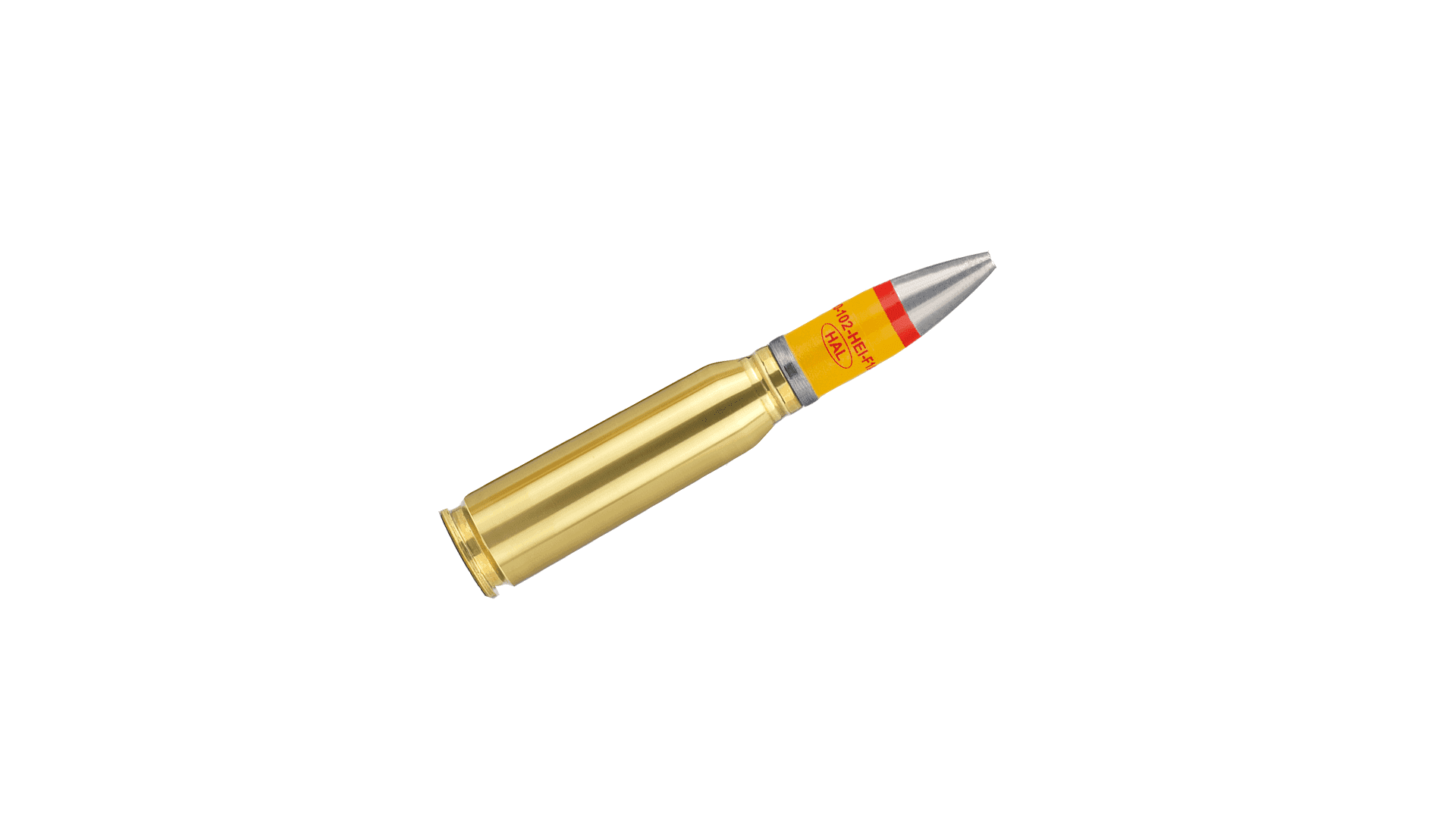

20x102mm HEI
The 20mm x 102 ammunition is compliant with international standard and has been particularly designed for use with the KNDS’s 20M621 automatic cannon. Fitted to the 15A mounts for vehicles and naval patrol boats, in the NC 621 cannon pod for helicopters and light fixed-wing aircraft, on 19A door mounts and 22A/23A coaxial mounts for helicopter, SH20 inboard mount, THL20 turret for helicopter, Narwhal system and ARX20A.
Most performant and safest combat proven ammunition on the market and in service in many customer’s army.
- This ammunition is designed to defeat anti-personnel, light armored vehicle and air craft.
- The HEI shell is fitted with impact fuze equipped with double safety mechanisms and self-destruction system.
- Its reduced recoil effort on weapon and less internal stress in the gun ensure a longer life time of the system.
PRODUCT FEATURES
Type
High Explosive Incendiary (HEI)
Caliber
20mm
Cartridge weight
~260g
Cartridge length
~168mm
Projectile weight
102g
Cartridge case
Brass
Fuze
MR221 Safety distance ≥15m Self-destruction 3.5s to 9s
Primer
Electric M52A3B1
Explosive
9g (RDX/Aluminium)
Propellant
~36g
Link
23TE711

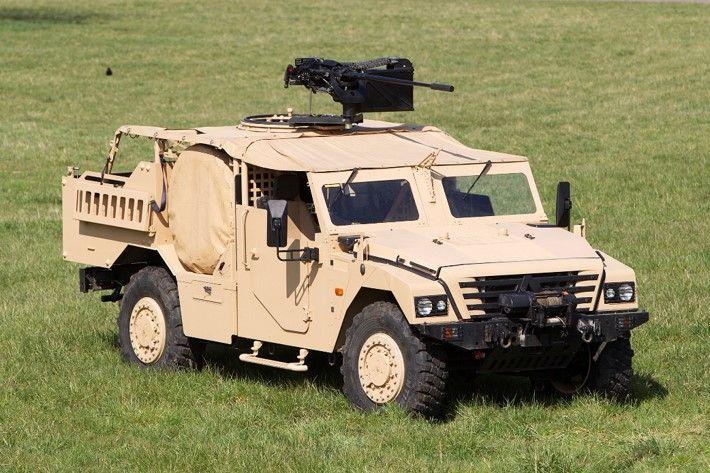

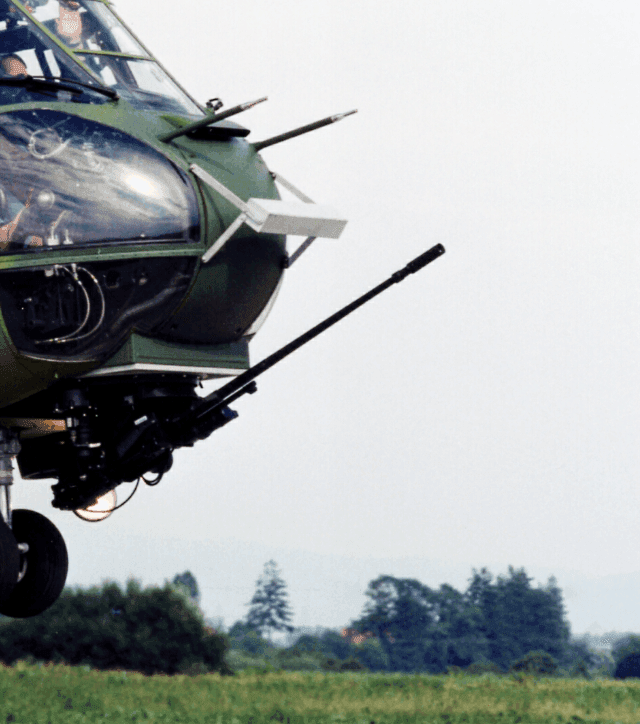

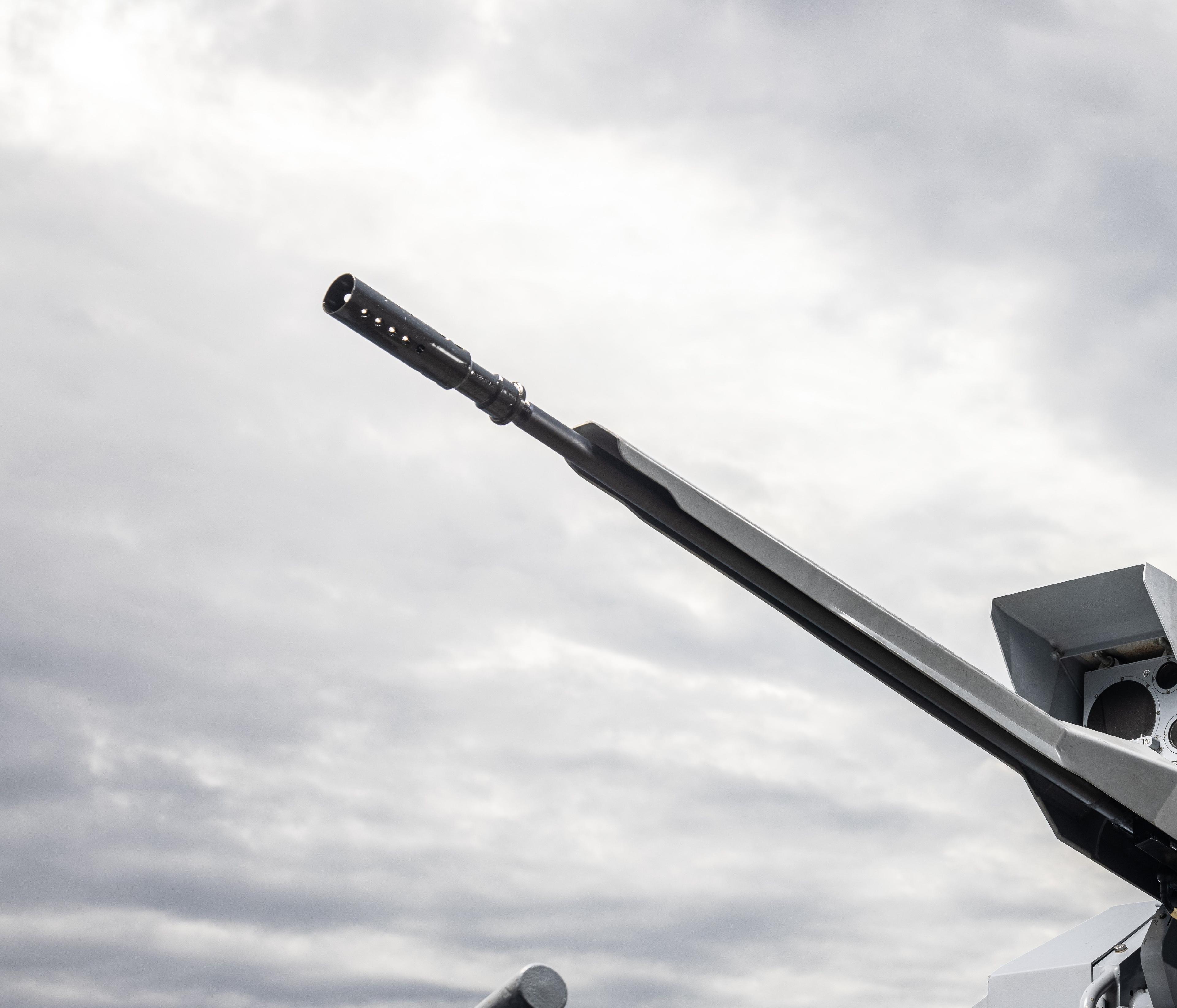

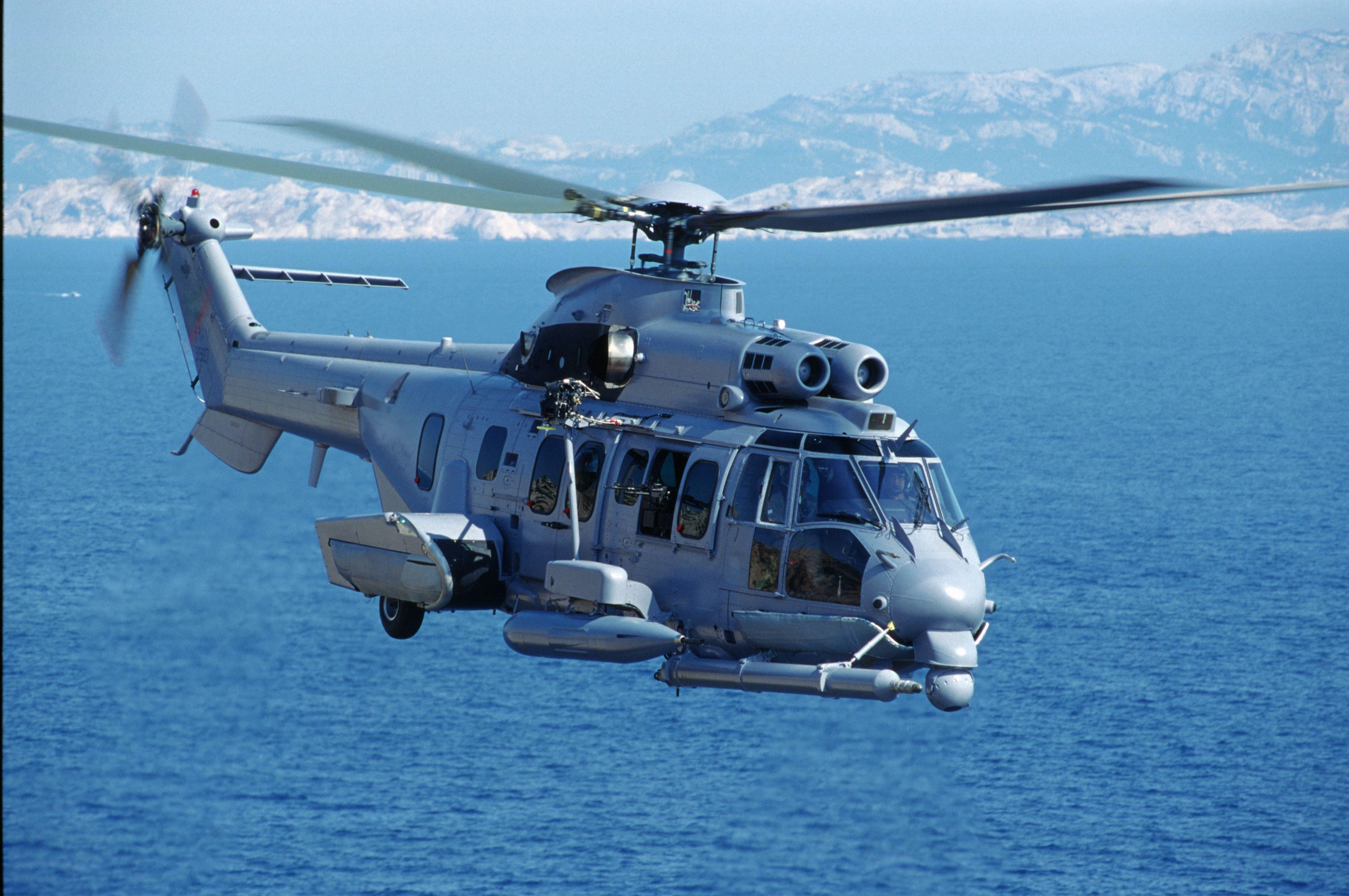

Related products to 20x102mm HEI
