Modular stowage concept
Additional stowage options enable missile or UGV launchers to be carried in addition to personal equipment.
BOXER tracked
BOXER tracked: Expansion of the BOXER family to include an innovative track drive module.
The BOXER tracked combines the modularity of the proven BOXER system with the increased protection and mobility of the tracked vehicle.
Performance characteristics of the BOXER tracked
The BOXER tracked was developed to meet current international requirements and addresses the need for a small logistics footprint, low costs and a simple digital operating concept.
PRODUCT features
Length
7.56 m
Width (with mirrors)
3.775m
Height
depends on mission module
Weight
up to 45 t
Engine output
up to 880 kW
Payload
up to 17 t
Operators
1 driver + 1 commander, depending on mission module
Range
up to 500 km
Speed
up to 70 km/h
Tracks
steel or rubberband tracks
Equipment features of the BOXER tracked
- Durable, low-maintenance track drive module with proven and field-tested technologies and potential for enhancement
- Full compatibility and interchangeability with current and forthcoming BOXER mission modules due to interface compatibility
- Modular protection concept and mobility features at infantry fighting vehicle level
- Enhancement potential through hybridization of the drive unit and through modular digitization (e.g. NGVA)
- Optimal power/weight ratio (20 to 25 kW/t) for first-class off-road mobility
- Mechanical backup systems that ensure high operational efficiency of the vehicle in the event of a failure of the digital operating concept
A single vehicle for many different missions
From infantry fighting vehicle to armored transport vehicle in less than one hour.
Facts on the BOXER tracked
Highly mobile, versatile, highly protected, and proven technologies
The tried and tested BOXER system taken to the next level. The innovative track drive module has an increased level of protection and a level of mobility that is otherwise only comparable to heavy tracked vehicles.
The optimal combination of durable and proven technologies, modular digital architecture, and ready-to-run hybrid drive makes the BOXER tracked particularly effective.
In the future, both current and forthcoming BOXER mission modules can be universally deployed utilizing a wheel drive module and/or a track drive module. The ability to switch between wheel and track without restriction allows mission modules to be deployed with the best mobility capability (wheel/track) adapted to the specific situation.
This inimitable symbiosis results in high operational readiness, efficiency and above all reliability – made in Germany.
Since the concept of the BOXER tracked is based on the modular system of the BOXER vehicle family, the drive module can be combined with all available BOXER mission modules. More than 20 different mission modules have already been introduced.
When different mission modules are deployed within different military branches, the logistical effort can be significantly reduced and new technologies can be introduced quickly and universally while retaining the same drive module.
Highly modular
More than 20 mission modules are already available thanks to the interface commonality with the wheel-based BOXER system. New technologies can be introduced at any time via new mission modules without decommissioning the vehicle.
Modern drive technology
The vehicle can be supplemented with an electric drive at the customer's request. This enables silent approaches and quick spurts.
Enhancement potential
Thanks to the higher permissible overall weight, the protection level can be increased beyond that of the wheeled BOXER with the same mission equipment.
Top protection
The use of cutting-edge protection technologies enables the use of modular protection configurations against different threats.
Outstanding mobility
With a power-to-weight ratio of up to 25 kW/t and a balanced and proven chassis, the BOXER tracked has superior off-road capability that significantly outperforms the wheeled BOXER.
High durability
A balanced cooling and heating concept enables the vehicle to be operated without restriction in nearly any climate zone.

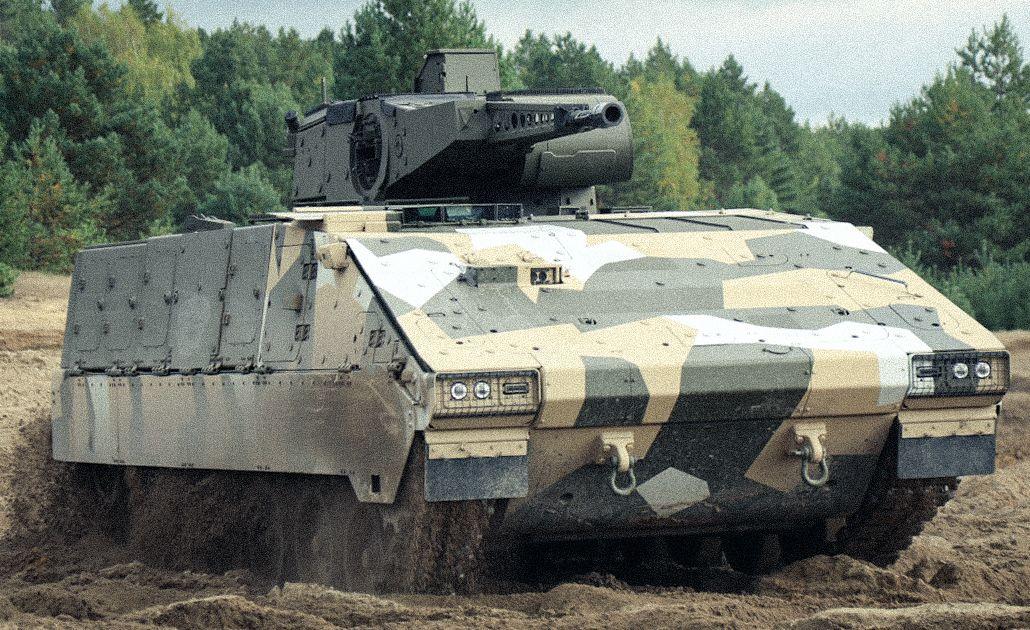

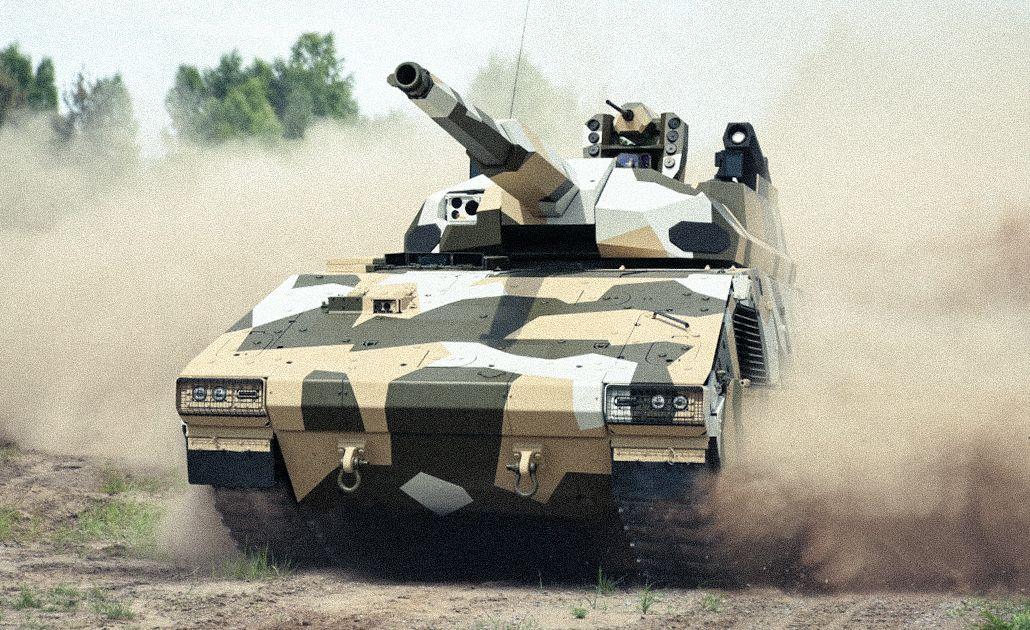

The BOXER tracked off-road
Thanks to the high modularity of the BOXER system, ground forces can be equipped with a single vehicle family consisting of wheeled and tracked vehicles.
