DINGO 2 EOD

DINGO 2 EOD – Protection and mobility in perfection

The DINGO 2 EOD provides a manipulator arm for conducting examinations and clearing heavy loads, and covers a wide range of EOD tasks. A camera system allows EOD operations to be observed from under protection.

In addition to its first-class protection and mobility features, the DINGO 2 owes the secret to its success to its variable equipment concept. Thanks to an extensive selection of equipment options, the safety cell can be adapted to the customer’s requirements.

PRODUCT features

Length
6.2 m
Width
2.39 m
Height
2.54 m
Max. permissible weight
up to 13.1 t
Engine performance / torque
163 kW/ 810 Nm
Range
> 700 km
Protection
Mine, ballistic, IED, NBC protection

Equipment features of the DINGO 2 EOD

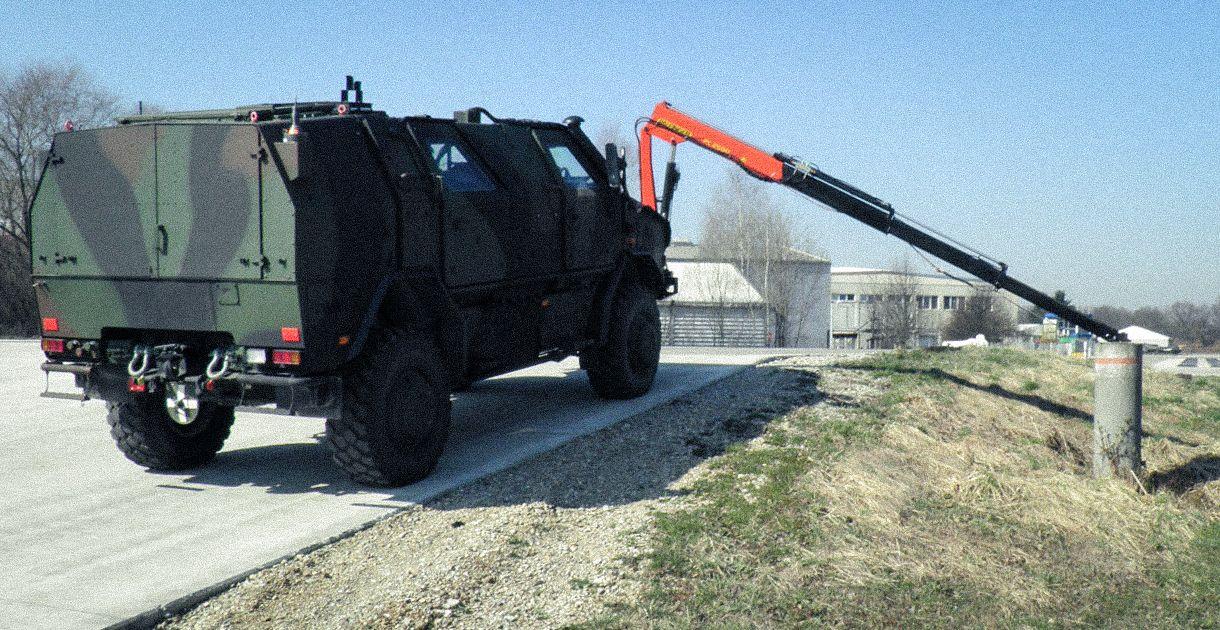

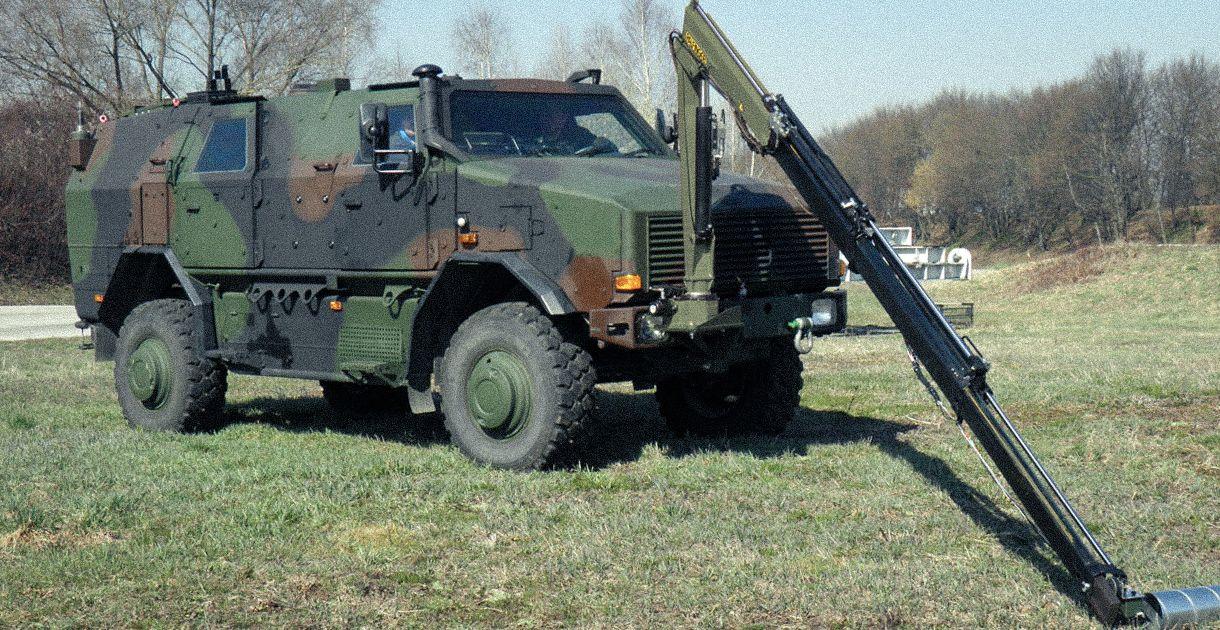

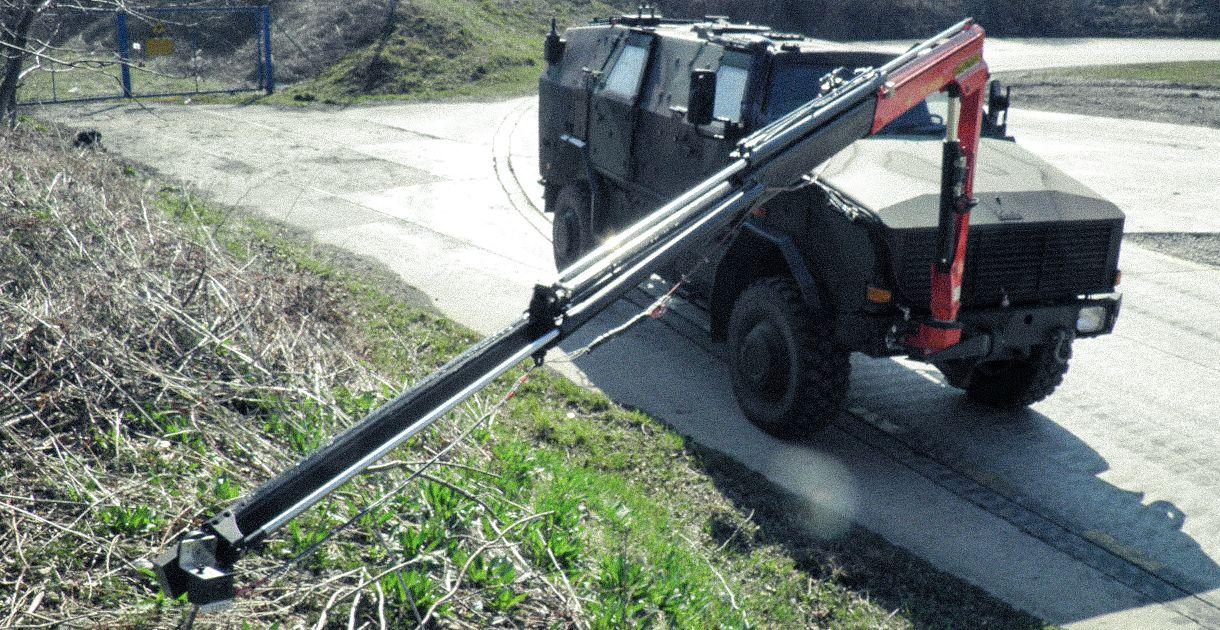

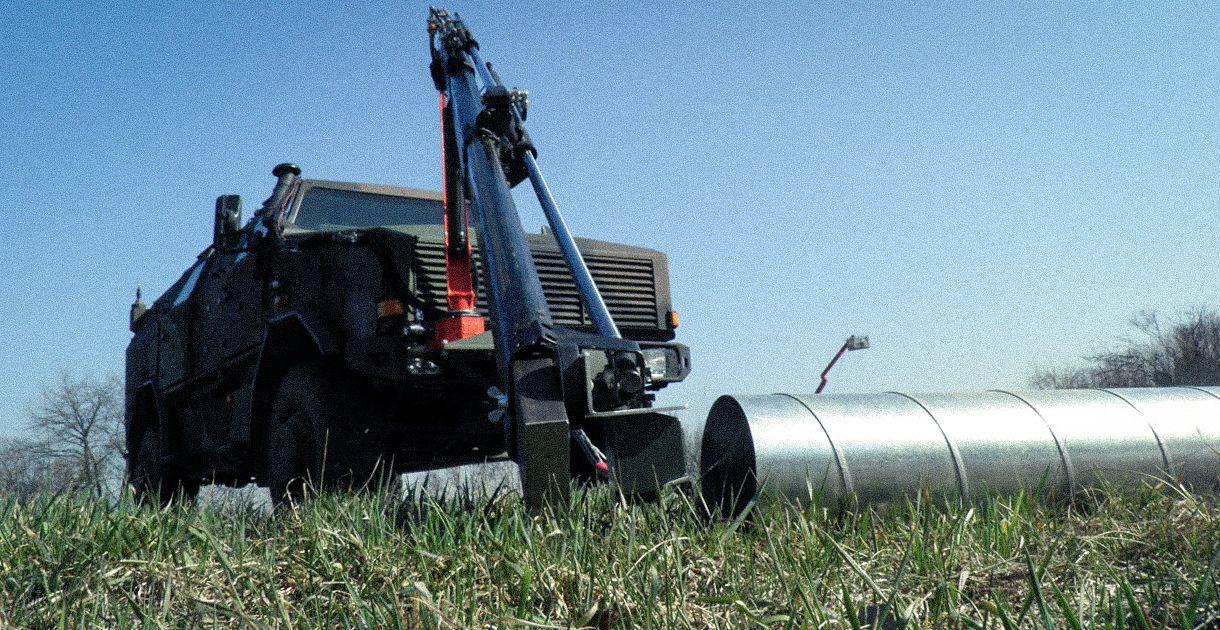

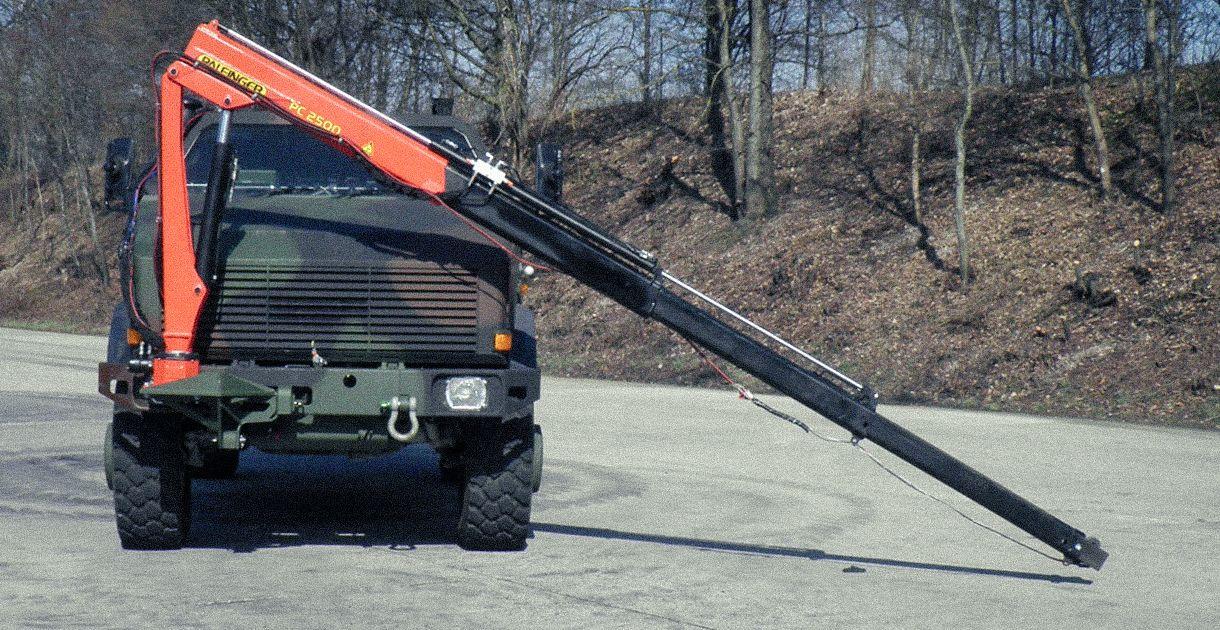

Hydraulically operated crane system with a range of max. 6 m
Maximum lifting force 370 kg
The manipulator arm can be operated via remote control from within the protected interior of the vehicle
Standard interfaces used on the front of the vehicle
Stowage compartment for EOD equipment

Mission-proven multi-functional system carrier platform

With more than 1,200 systems in use by ten nations, it is one of the most successful land systems of its class.

Facts about the DINGO 2 EOD

Versatile system carrier platform, reliable and mission-proven

Based on the DINGO 2 Patrol and Security Vehicle, the EOD vehicle presents even more versatile operational possibilities of the protected vehicle built on the Unimog chassis. The adaptation of attachments such as a manipulator arm on the front vehicle interface allows new tasks to be performed and a broad spectrum of missions to be completed with a single base vehicle.

At the same time, the outstanding properties of the highly mobile Unimog chassis and the economic benefits of the cross-functional base vehicle are retained.

High performance capability – Low life-cycle costs – Easy maintenance

As a highly modern wheeled vehicle, the DINGO 2 is not only ideally equipped for diverse mission profiles and extreme terrain conditions, but also for a long and cost-effective service life. The militarised Unimog chassis reduces training and instruction effort for drivers and mechanics. The low-maintenance, robust diesel engine is also an economic advantage. Furthermore, the KNDS Deutschland customer service offers worldwide vehicle service – even directly in the deployment zone – and assists in spare part supply. This ensures that vehicles will be at full performance capability at all times.
