Power
The vehicle is equipped with a 7.2 l 6-cylinder in-line diesel engine, which boasts an output of 225 kW/306 HP at 1,200 Nm.
DINGO 2 HD 4x4 Ambulance

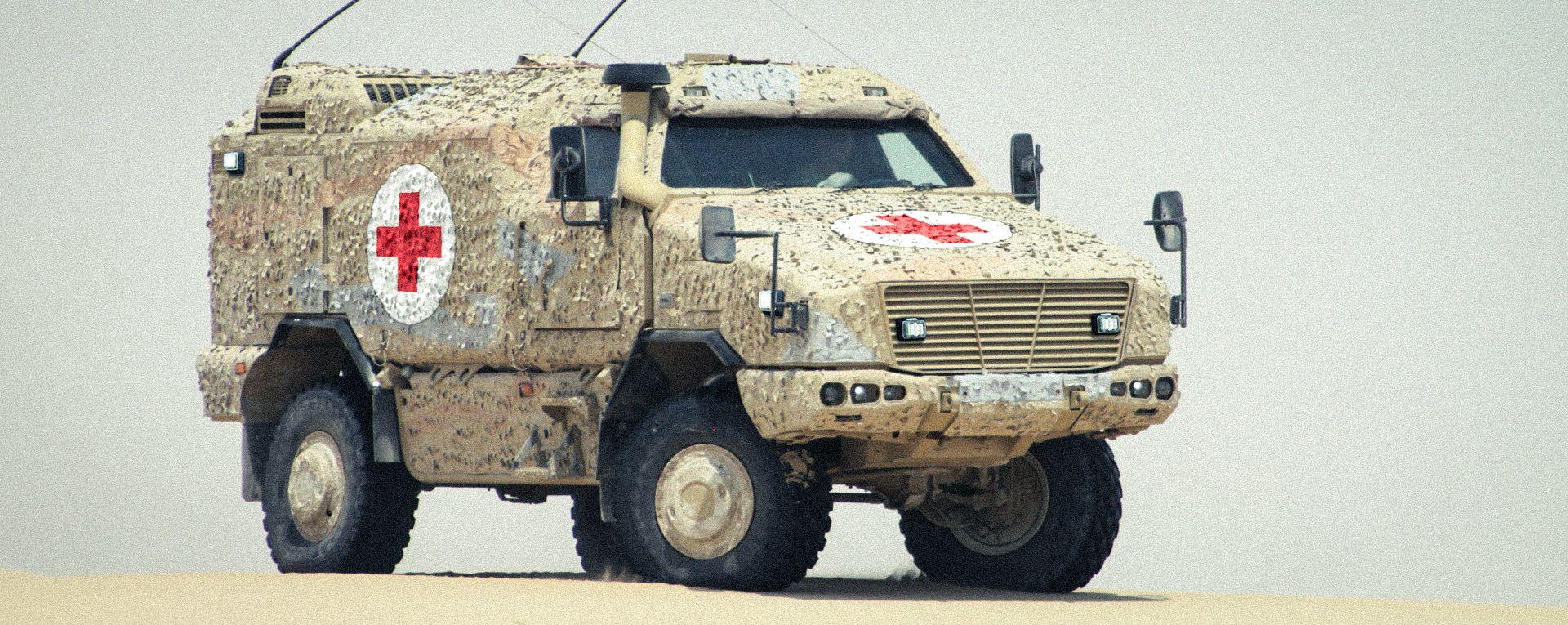

DINGO 2 HD 4x4 Ambulance – Safe medical care – even under difficult conditions
Heavily armoured, highly mobile GFF3-class support vehicle based on the performance-enhanced DINGO 2 HD for the fastest possible recovery of casualties to perform first aid and provide the necessary medical treatment.
DINGO 2 HD 4x4 Ambulance – a decisive contribution towards improving protected casualty transport
Heavily protected, highly mobile ambulance vehicle
Up to two casualties can be transported in reclining position and provided with medical care with the DINGO 2 HD 4x4 Ambulance.
PRODUCT features
Length
6.80 m
Width
2.42 m
Height (roof)
2.96 m
Max. permissible weight
up to 14.5 t
Engine performance / torque
225 kW/1200 Nm
Range
> 800 km
Protection
Mine, ballistic, IED, NBC protection
Equipment features of the DINGO 2 4x4 Ambulance Vehicles
- Up to two casualties can be transported in reclining position and provided with medical care (1 x intensive care and 1 x standard care).
- Highly flexible in the field thanks to variable arrangement of the medical instruments
- Simple, ergonomically optimised system for loading and unloading casualties in any order
- Large cooling and heating compartment
- Sufficient stowage space for medical equipment and consumables
- Large electric rear ramp which opens over the entire width of the vehicle
- Interior height: 1.6 m
- Protected cell volume: 12.5 m3
- Max. permissible weight: 14.5 t
Mission-proven multi-functional system carrier platform with specialised tasks
With more than 1,200 systems in use by ten nations, it is one of the most successful land systems of its class.
Facts about the DINGO 2 HD Ambulance Vehicle
Versatile system carrier platform, reliable and mission-proven
Medics’ most important tasks include the fastest possible rescue of wounded soldiers on the battlefield, performing first-aid, and then providing suitable medical care. In doing so, they often risk their own lives under enemy fire.
The various ambulance versions of the DINGO 2 make a decisive contribution towards improving protected casualty transport.
Based on the DINGO 2 HD 4x4 chassis, the ambulance vehicles are adapted to the respective customer’s requirements and reflect the various strategies for rescuing and caring for casualties. The Ambulance Vehicles and other members of the DINGO family have the same level of protection and mobility as comparable combat vehicles, both on difficult terrain and under adverse combat conditions.
Furthermore, all Ambulance Vehicles are designed with a continuous safety cell to facilitate communication between the driver and medical area, provide the crew in the rear with orientation through the large windscreen and enable access from one area to the other.

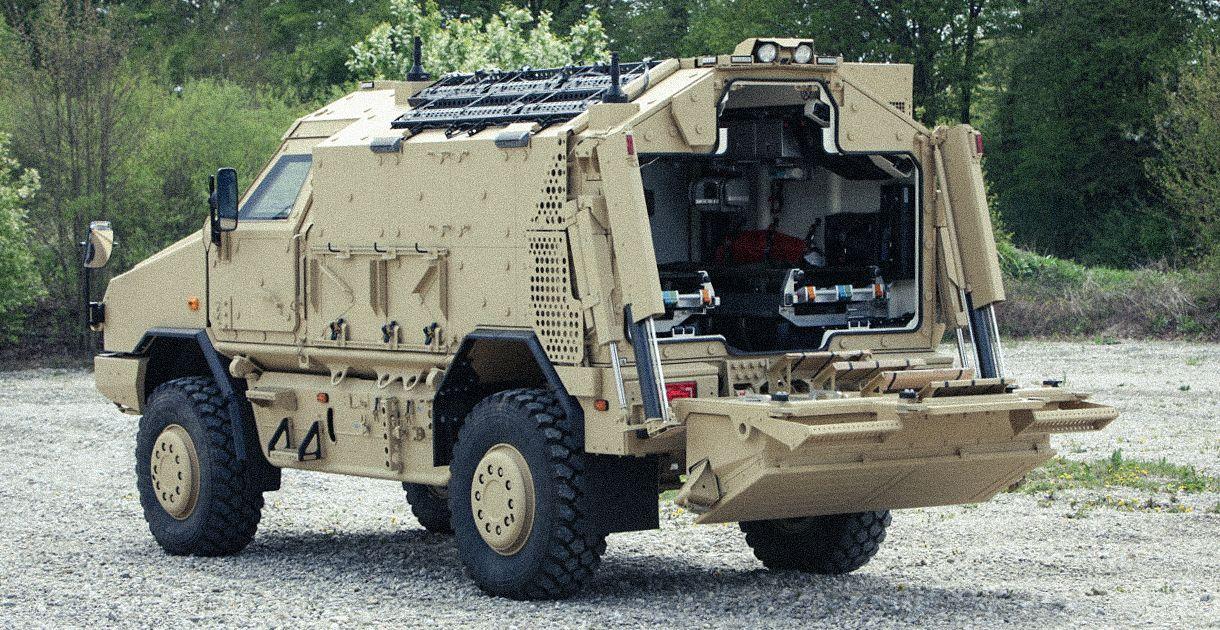

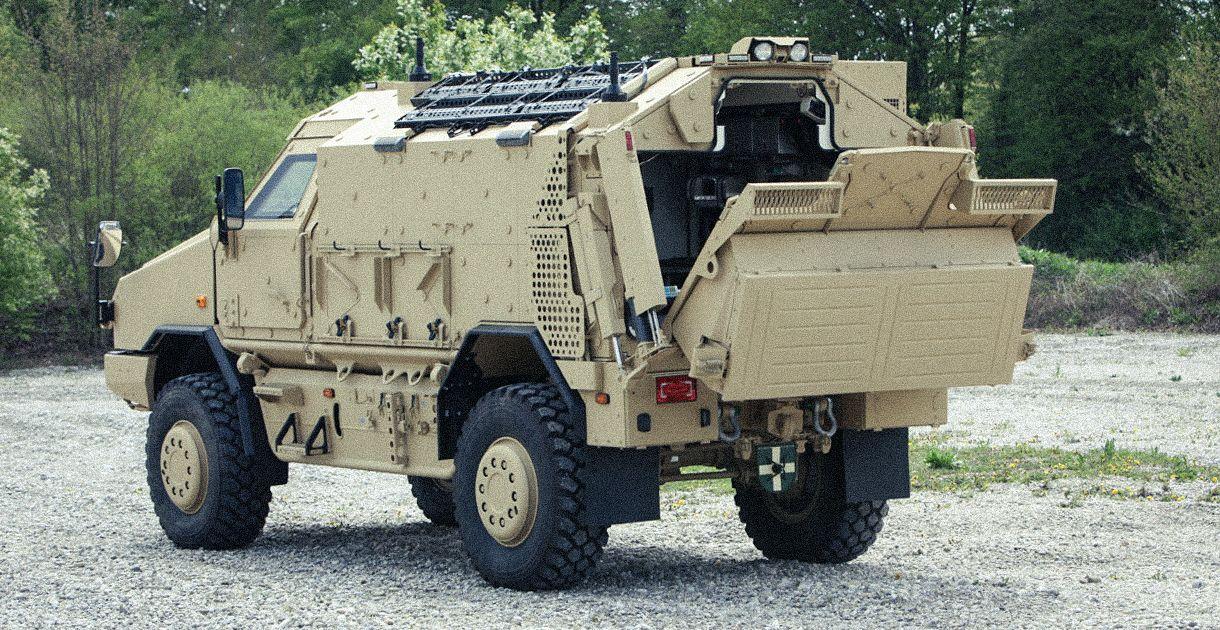

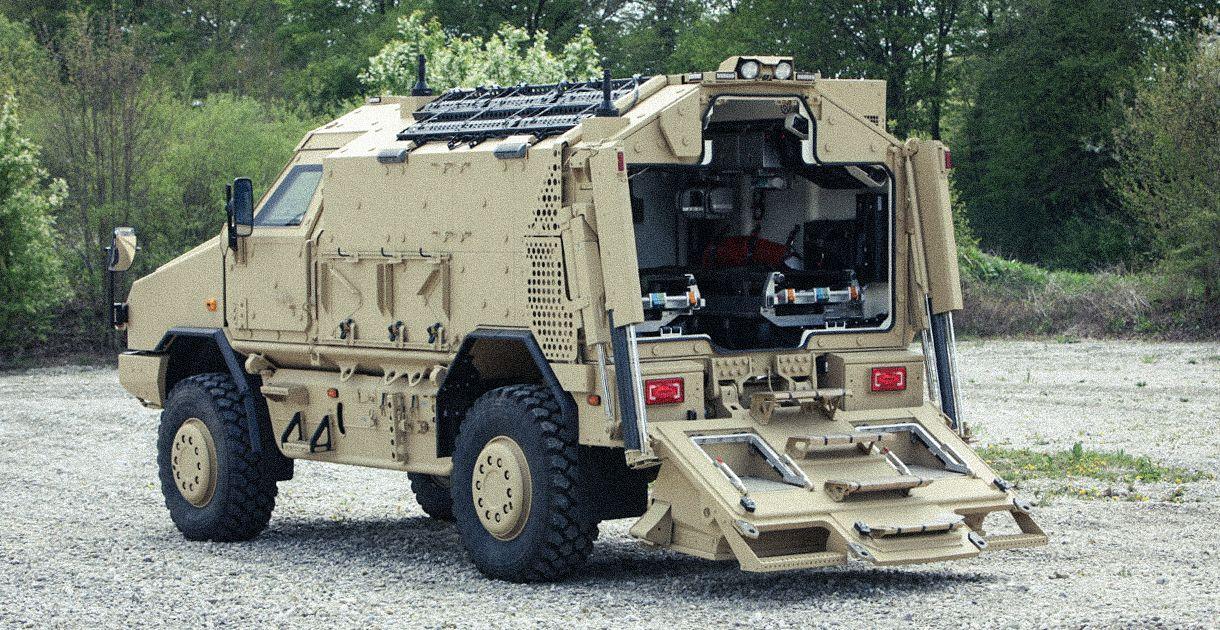

The DINGO 2 HD 4x4 Ambulance also has a rear ramp which opens over the entire width of the vehicle, enabling comfortable, independent loading of casualties.
Chassis
The DINGO 2 HD 4x4 is based on the Unimog FGA14.5 chassis.
Roof structures
The vehicle is equipped with a special signal system and a high-performance 16 kW air conditioning system for use in hot climates.

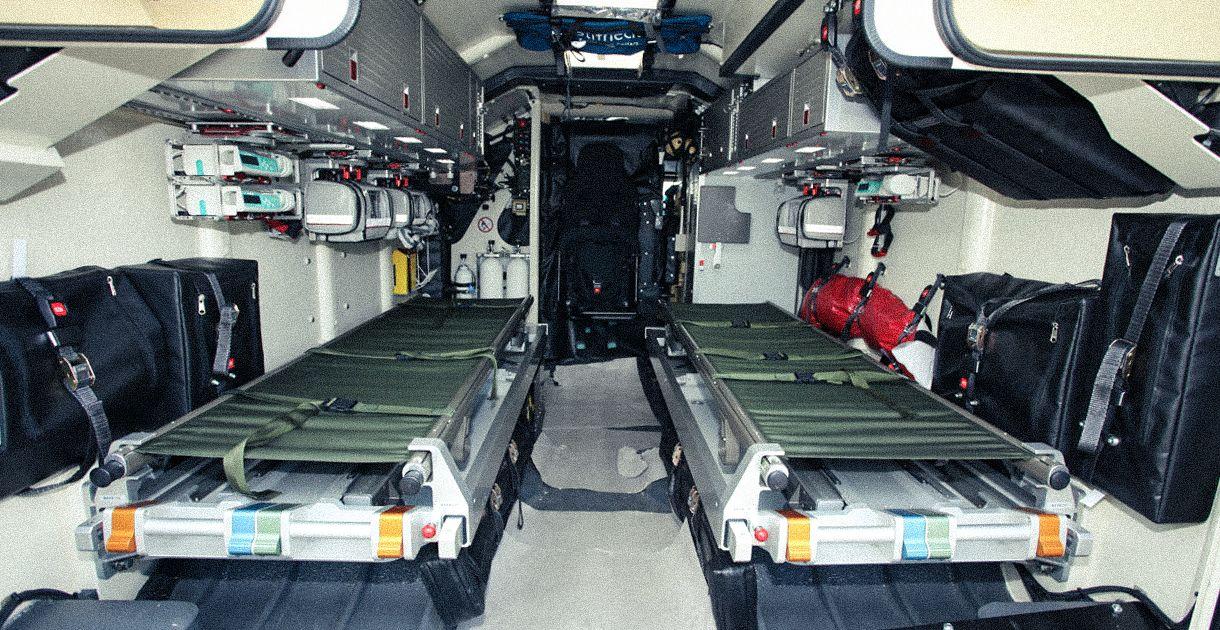

Treatment
The medical equipment in the protected large-capacity cell with high headroom enables the qualified transport and care of two wounded persons in reclining position. The entire medical equipment kit was designed with mine and IED protection aspects in mind.

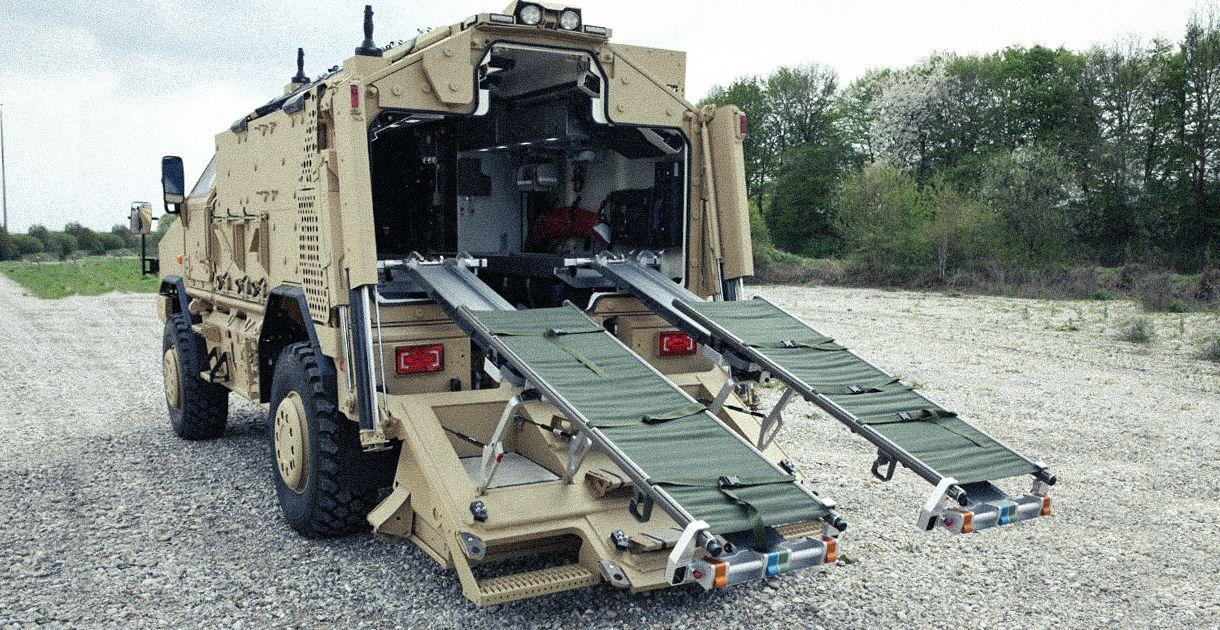

Entry and stretcher system
The wide, electrically driven rear ramp and the smooth-running stretcher loading system enable quick and comfortable loading and unloading of casualties.

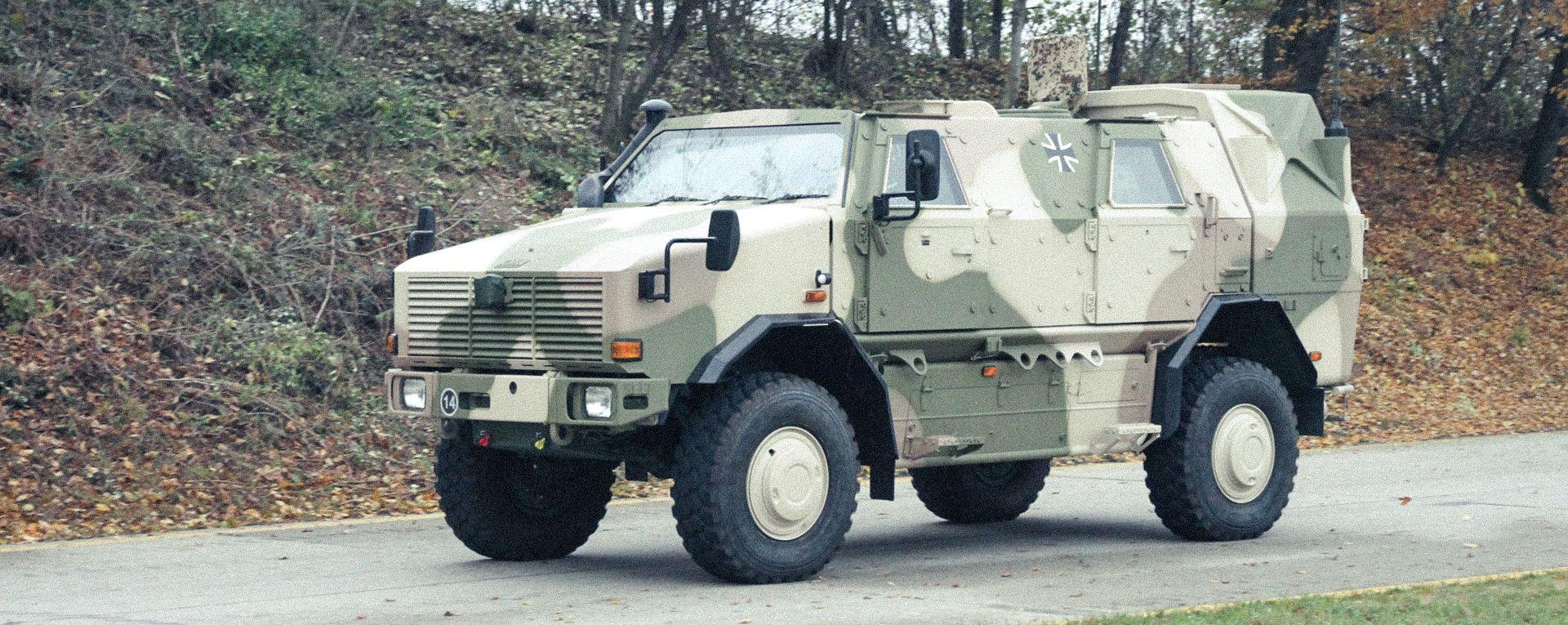

The DINGO 2 is in use worldwide

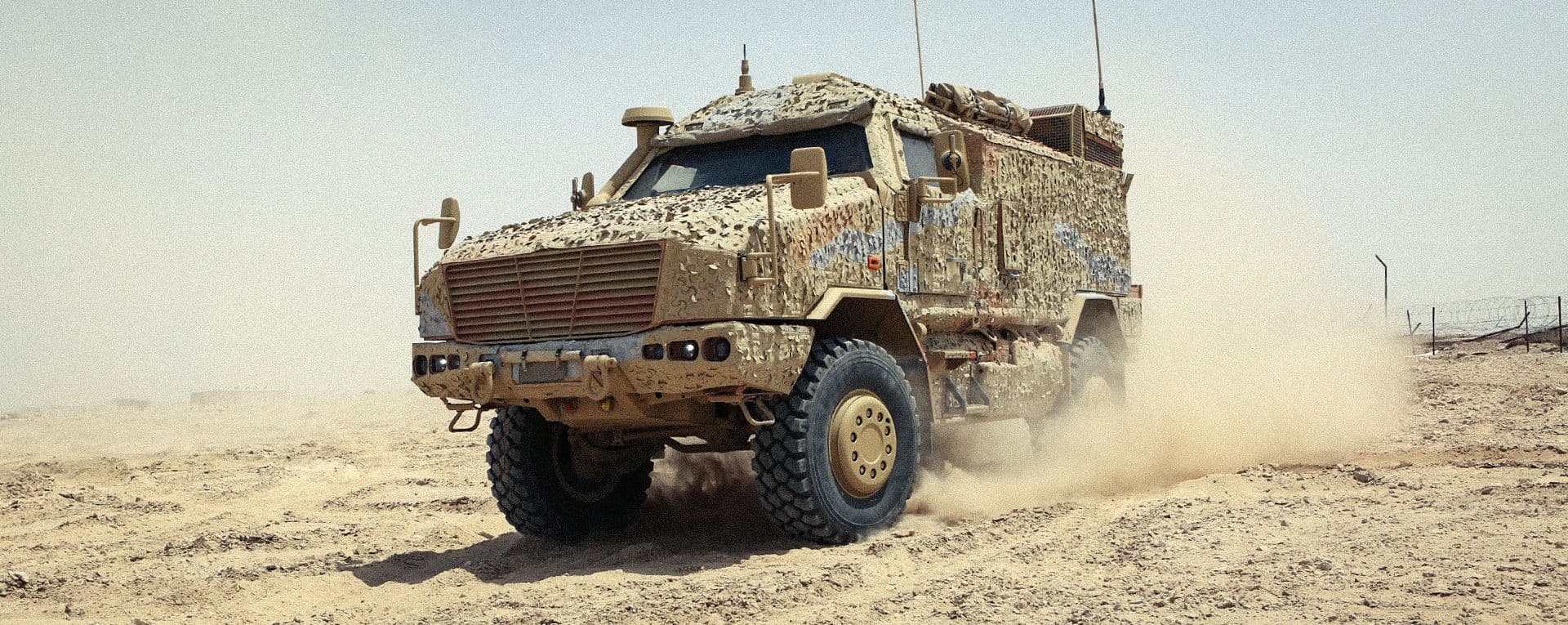

Maximum protection combined with high mobility
