DINGO 2 HD Command Post

DINGO 2 HD Command Post – The mobile command post

Heavily armoured, highly mobile GFF3-class support vehicle based on the DINGO 2 HD with a crew of five. Designed for rapid communication and effective action on military missions.

The DINGO 2 HD Command Post is based on the heavily armoured and highly mobile system carrier platform with a continuous safety cell for the driver’s cab and crew compartment. A wide variety of command and control systems can be integrated as needed thanks to its modular interior concept.

PRODUCT features

Length
6.80 m
Width
2.42 m
Height
2.96 m
Weight
14.5 t
Engine performance / torque
225 kW/1200 Nm
Range
> 800 km
Protection
Mine, ballistic, IED, NBC protection

Equipment features of the DINGO 2 BDR

DINGO 2 with Unimog U5000 14.5 FG

Accommodates a crew of up to six
Driver
Commander (passenger)
Operator command and communication system (3 x)
Jump seat

Extendable mast systems for the VHF antennas on the rear of the vehicle

Stowage space for personal equipment

Rear ramp (electrical)

An interface for integrating an HF radio set and an interface for external power supply

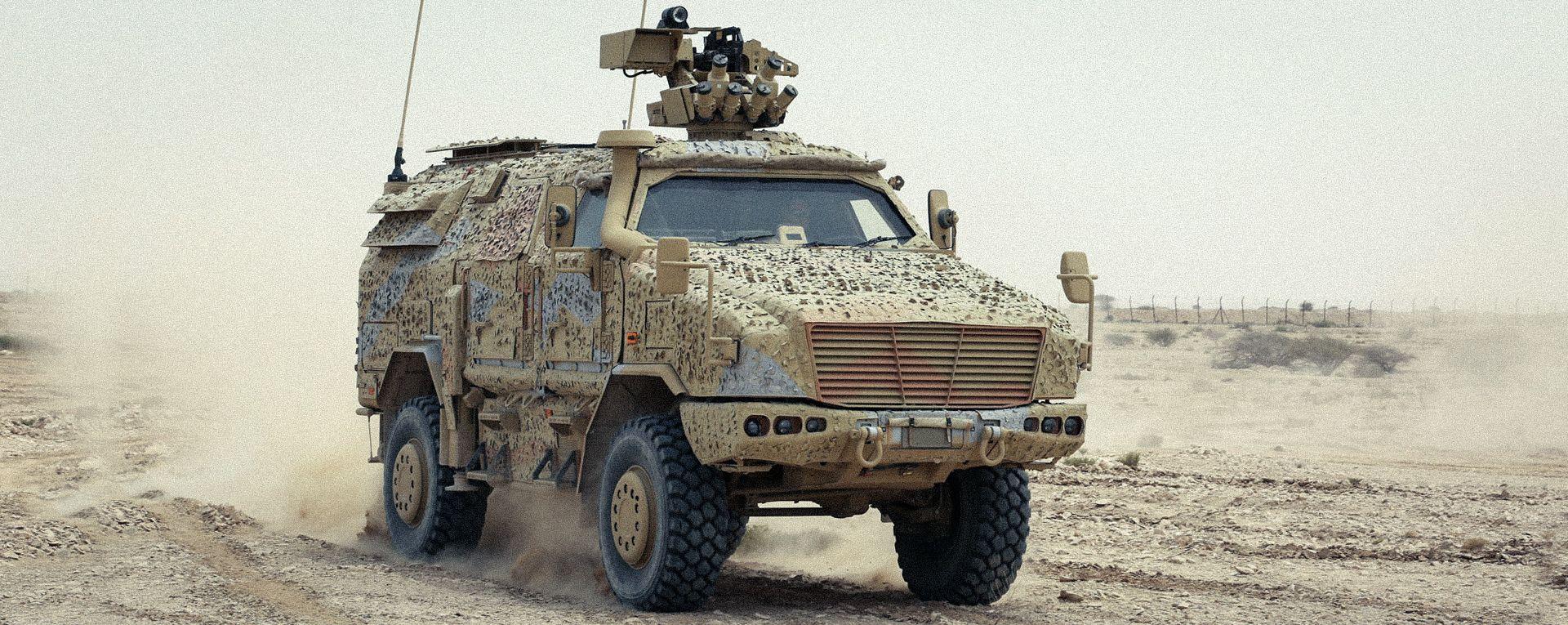

Remote controlled weapon station (optional)

Mission-proven multi-functional system carrier platform

With more than 1,200 systems in use by ten nations, it is one of the most successful land systems of its class.

Facts about the DINGO 2 HD Command Post

Versatile system carrier platform, reliable and mission-proven

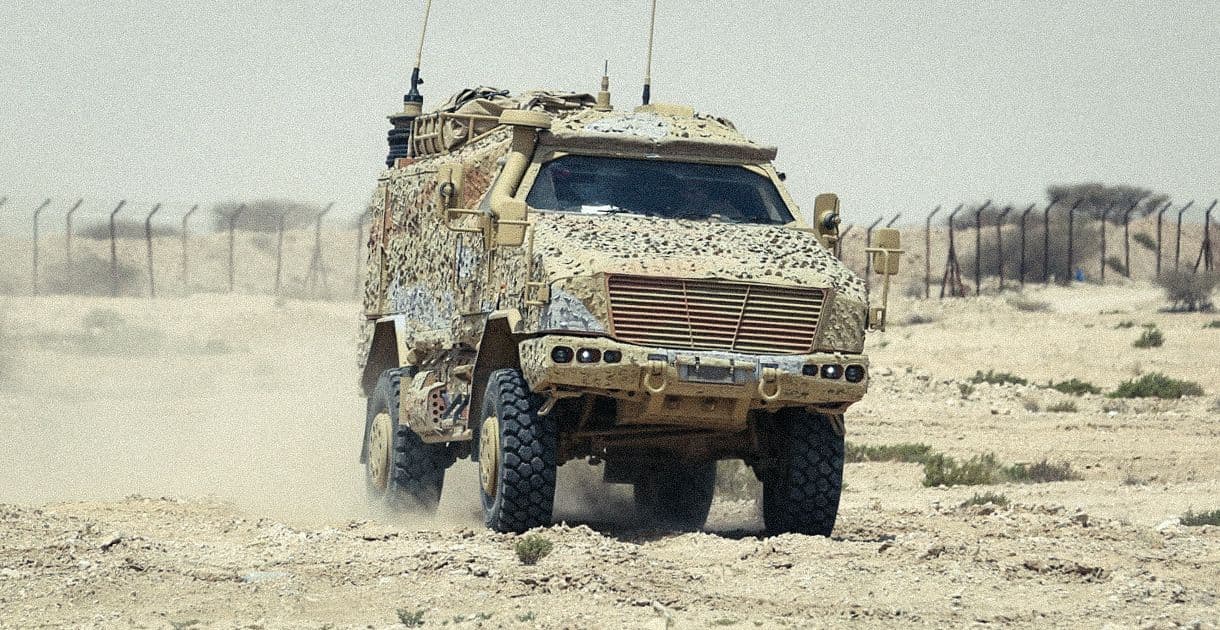

The DINGO 2 HD Command Post is a mobile, highly protected wheeled vehicle based on the mission-proven DINGO series for multifaceted mission profiles and extreme off-road conditions.

Through the system-compatible integration of cutting-edge command technologies, KNDS Deutschland provides for rapid communication and thus effective action on military missions.

The DINGO 2 HD CP is an innovative command vehicle with a continuous safety cell for the driver’s cab and crew compartment.

A wide variety of command and control systems can be integrated as needed thanks to its modular interior concept.

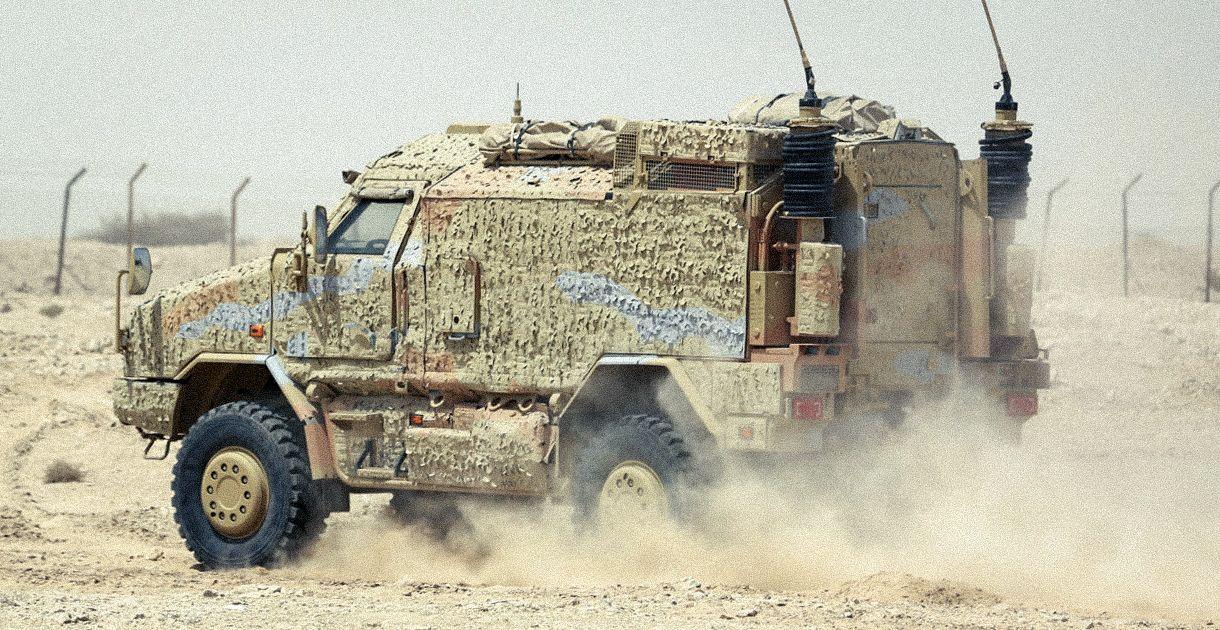

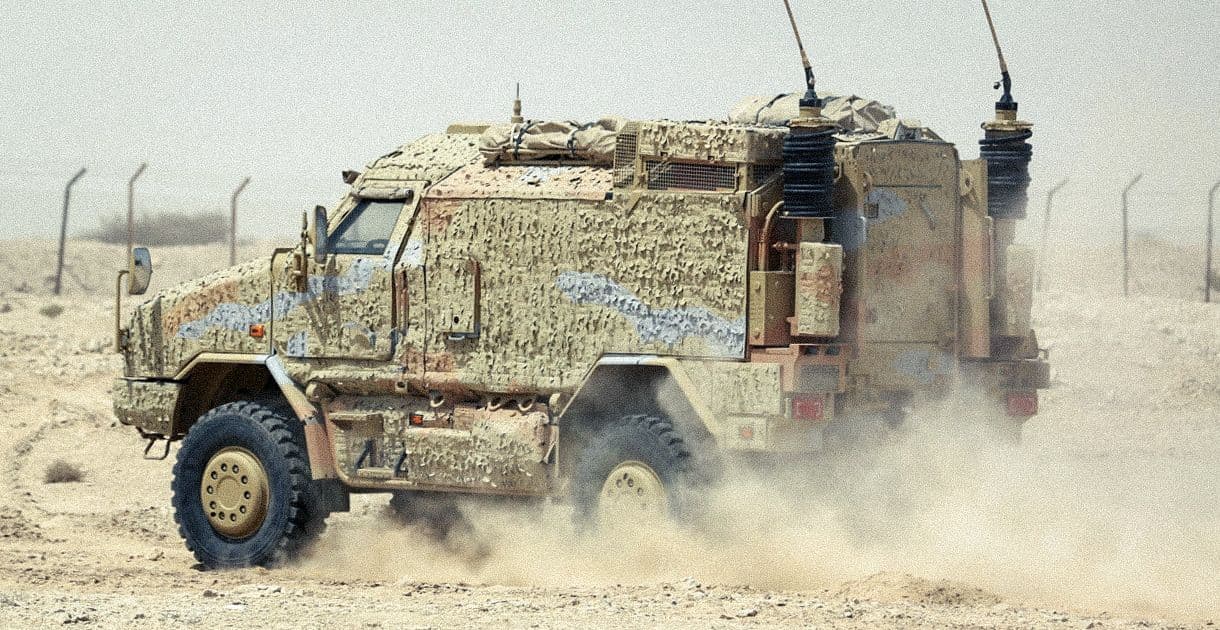

For better use of the VHF radio, the vehicle is equipped with two extendable mast systems at the rear which can be operated from within the safety cell.

Communicative

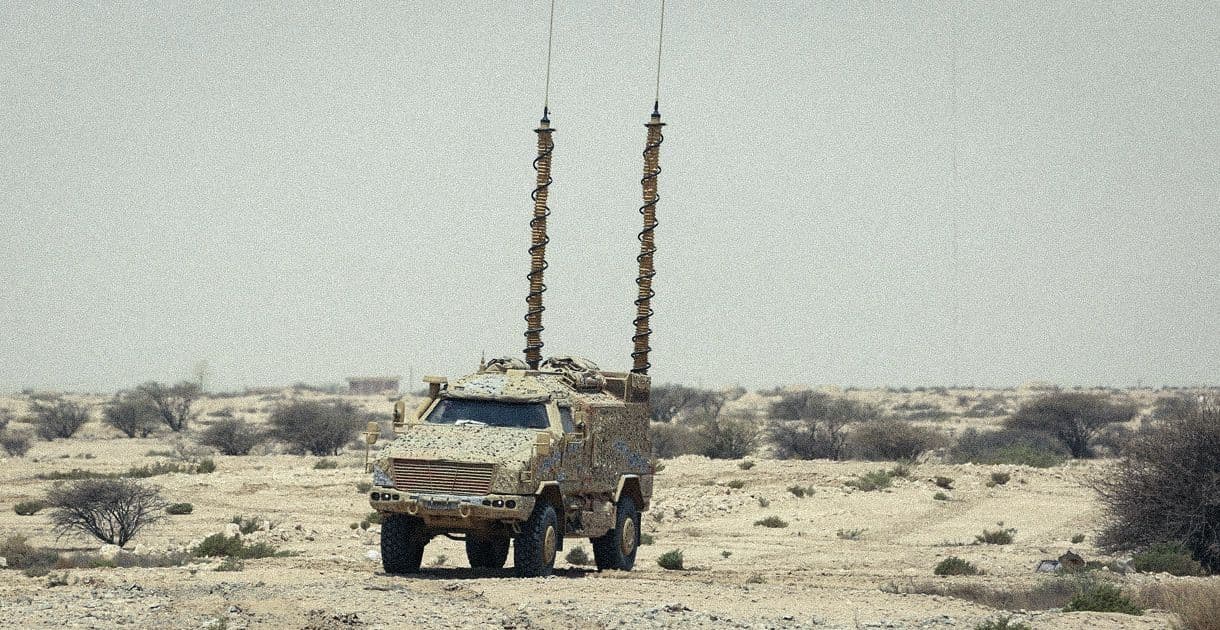

The mast system with radio antennas can be extended up to 7.5 m above the ground.

Comfortable

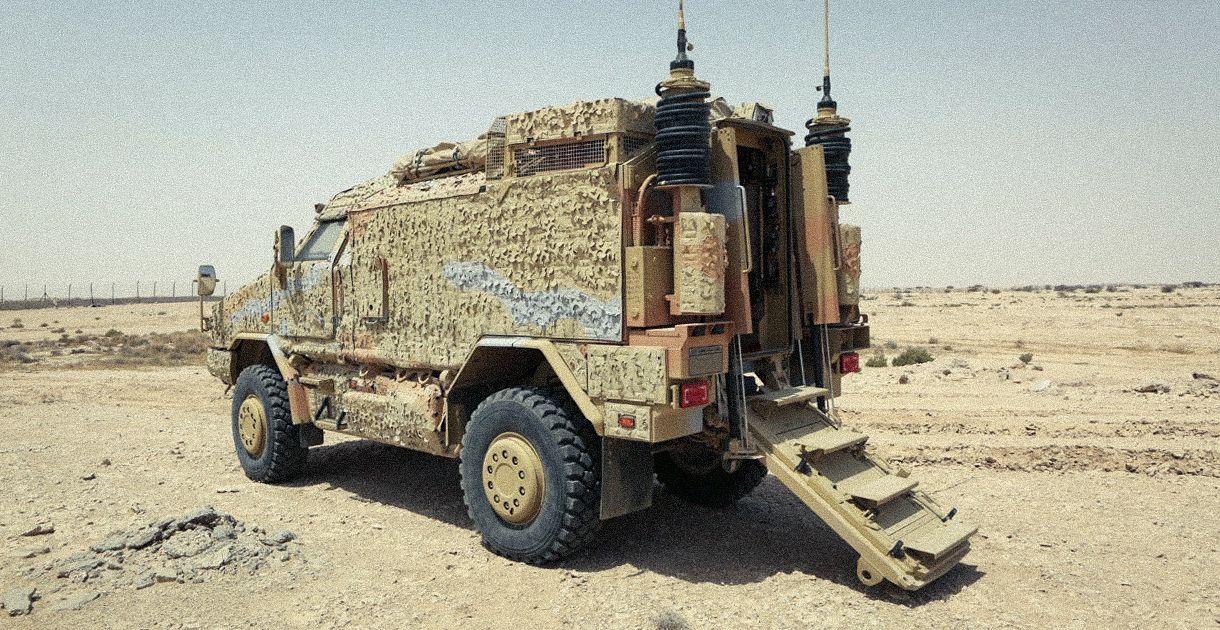

The electrically driven rear ramp offers comfortable access to the interior of the vehicle.

Expanded

The vehicle’s roof provides additional stowage options for camouflage nets or tarps.

Loaded up

The Unimog FGA14.5 chassis generates 225 kW of output and achieves the established mobility of the DINGO 2 with Unimog FGA13 chassis at a higher total permissible weight.
