DINGO 2 HD TRGS

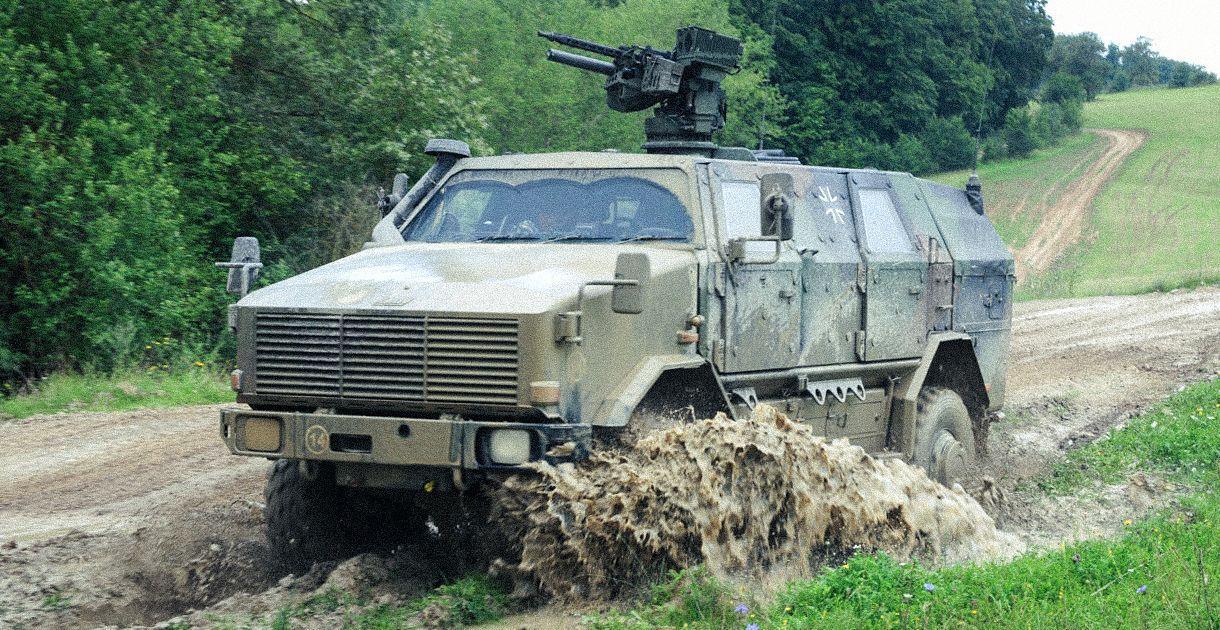

DINGO 2 HD TRGS – Predestined for quick and efficient reconnaissance of moving targets
Highly protected, highly mobile GFF3-class support vehicle based on the DINGO 2 HD with a crew of four. Designed for rapid, high-precision radar reconnaissance of moving targets.
DINGO 2 HD Tactical Radar Ground Surveillance – Quick and efficient reconnaissance of moving targets
The DINGO 2 HD Tactical Radar Ground Surveillance is based on the heavily armoured and highly mobile system carrier platform with a continuous safety cell for the driver’s area and crew compartment. A large variety of radar systems can be integrated as needed thanks to its modular interior concept.
PRODUCT features
Length
6.80 m
Width
2.42 m
Height
2.85 m (3.6 m with weapon station)
Weight
14.5 t
Engine performance / torque
225 kW/1200 Nm
Range
> 800 km
Protection
Mine, ballistic, IED, NBC protection
Equipment features of the DINGO 2 HD TRGS
- DINGO 2 with Unimog U5000 14.5 FG
- Accommodates a crew of up to four
- Extendable mast system for TRGS radar
- Stowage space for personal equipment
- Remote controlled weapon station (optional)
TRGS radar capabilities:
- Pulse-Doppler radar with Doppler tone and AESA (active electronic steered antenna)
- Automatic reconnaissance and tracking of ground or sea targets, or low-flying aircraft
- Long range with wide coverage of up to 40 km (up to 247 km in long-range mode)
- Dual-beam capability (multi-beam operation)
- Multi-mode capability (time multiplex and parallel operation)
- Simultaneous capability: Detection/tracking and sector monitoring
- Navigation system with inertial platform for exact orientation and positioning of the radar to the north
Mission-proven multi-functional system carrier platform
With more than 1,200 systems in use by ten nations, it is one of the most successful land systems of its class.
Facts about DINGO 2 HD Tactical Radar Ground Surveillance
Versatile system carrier platform, reliable and mission-proven
The DINGO 2 HD TRGS is a mobile, highly protected wheeled vehicle based on the mission-proven DINGO series for multifaceted mission profiles and extreme off-road conditions.
The integrated TRGS radar fulfils the tasks in the chain of artillery functions for reconnaissance of moving targets and artillery position measurement for correcting own fire.
The DINGO 2 HD TRGS is an innovative reconnaissance vehicle with a continuous safety cell for the driver’s cab and crew compartment. A large variety of reconnaissance systems can be integrated as needed thanks to its modular interior concept.
The TRGS radar currently installed is a pulse-Doppler radar system with an active electronic steered antenna (AESA) which is mounted on a 6 m mast.
Heavy metal
Passive all-round protection for the crew from mines, arms fire and IEDs
Defence
Modular interior concept for integrating a wide variety of radar systems
Mobility
Extendable mast system
Power in a safe package
High off-road capability thanks to unique design connection of the safety cell to the chassis while retaining the torsional flexibility of the chassis frame
Under the hood
The engine hood protects the assemblies beneath it.
DINGO 2 is in use worldwide
Maximum protection combined with high mobility
